Showing 33–48 of 188 results

Opto Engineering – Macro & Fixed focal[EN8MP SERIES]

EN8MP Series is a series of fixed focal length lenses that has a very compact design for a high-resolution 1” lens. Its anti-shock design responds to current market needs in factory automation.

While the accuracy request increased in the industry, the resolution and the size of the sensors are increasing, a correspondent high-resolution lens for larger format is needed in order to accomplish much more complex vision tasks. Together with ITALA cameras, the EN8MP series can resolve high-resolution inspections such as hairline defects on reflective material, printing inspection and also collaborative robot guide…etc

Opto Engineering^® has wide experience in different industries, our global tech support team would support you on provide the most suitable machine vision components based on the customer’s need including where the high resolution requires.

Opto Engineering – Macro & Fixed focal[ENUV2M SERIES]

Opto Engineering – Macro & Fixed focal[ENVF SERIES]

Opto Engineering – Macro & Fixed focal[ENVIS-SWIRMP SERIES]

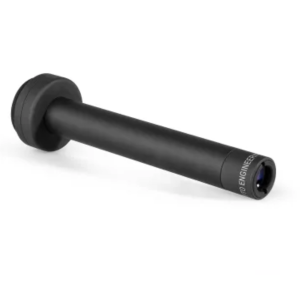

Opto Engineering – Macro & Fixed focal[MC SERIES]

MC series macro lenses are designed to capture images of small objects when both very good resolution and nearly zero distortion are needed.

Small object fields of view are often observed by means of long focal length lenses equipped with an additional spacer, used to adjust the working distance.

Unfortunately, this approach leads to several problems like high image distortion, resolution loss (especially at the corners), poor depth of field and chromatic effects, thus making this method not suitable for good imaging neither compatible with accurate measurement requirements.

All these problems can be overcome by using the MC lenses, specifically designed for macro imaging. MC optics are compact and cost-effective optics providing very high image resolution. A very low optical distortion makes these lenses perfectly suitable for precise dimensional measurement applications.

Opto Engineering – Macro & Fixed focal[MC16K SERIES]

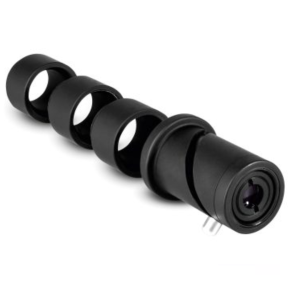

Opto Engineering – Macro & Fixed focal[MC3-03X SERIES]

The MC3-03X is a multi-configuration macro lens suitable for the inspection of objects whose size varies from a few millimeters to some centimeters. Magnification and focus can be tuned by adjusting a lockable rotating knob.

The magnification range of the lens can be selected by means of a set of extension tubes, included in the product package; this feature makes this component ideal for prototyping purposes and for machine vision applications requiring flexibility. Since the working F-number increases with magnification, the optimum combination of field depth, image resolution and brightness is maintained in any lens configuration.

Moreover, the optical distortion approaches zero at any magnification, making this lens perfectly suitable for measurement applications.

Opto Engineering – Macro & Fixed focal[MC3M SERIES]

MC3M series is a family of macro lenses designed to capture images of small objects when high resolution and nearly zero distortion are required.

Optimized for 1.1″ sensors, MC3M macro lenses are specifically designed for macro imaging to get the best out of close-range inspections without compromising image distortion, resolution, depth of field, color fidelity, and measurement accuracy.

With magnifications ranging from 0.1x to 6x, these macro lenses are ideal for applications such as positioning/inspection/measurement of objects where a high depth of field is not required (bent metal parts, silicon wafers, quad flat no-lead (QFN) packages, etc.).

Their compact design and high quality/price ratio make them suitable for industrial environments with space restrictions.

Opto Engineering – Macro & Fixed focal[MCSM1-01X SERIES]

MCSM1-01X is a variable macro lens expressly designed for 3D measurement and imaging applications where the object plane is not perpendicular to the optical axis. A precise built-in adjustment mechanism allows the lens to accurately meet the Scheimpflug condition and to image tilted planes in perfect focus. This lens offers a wide range of magnifications and angles of view. It can be interfaced with any structured light source to build up extremely accurate 3D imaging systems. Image sharpness is maintained even when the lens is tilted by a wide-angle, since the Scheimpflug adjustment tilts around the horizontal axis of the detector plane. The tiltable mount is compatible with any C-mount camera.

Opto Engineering – Macro & Fixed focal[MCSM3M1-025X SERIES]

MCSM3M1-025X is a variable macro lens for sensors up to 1.1” specifically designed for 3D measurement and imaging applications where the object plane is not perpendicular to the optical axis. A precise built-in adjustment mechanism allows the lens to accurately meet the Scheimpflug condition and to image tilted planes in perfect focus. This lens offers a wide range of magnifications and angles of view. It can be interfaced with any structured light source to build up extremely accurate 3D imaging systems. Image sharpness is maintained even when the lens is tilted by a wide-angle, since the Scheimpflug adjustment tilts around the horizontal axis of the sensor plane. The tiltable mount is compatible with any C-mount camera.

Opto Engineering – Macro & Fixed focal[MCZM SERIES]

Opto Engineering – Telecentric [TC CORE SERIES]

TC CORE bi-telecentric lenses for sensors up to 2/3” feature a truly revolutionary ultra compact opto-mechanical design.

These lenses deliver high-end optical performances and at the same time are up to 70% smaller than other double-sided telecentric lenses on the market, thus allowing to significantly downsize a vision system.
The unique shape has been expressly developed for maximum mounting flexibility.

TC CORE lenses can be mounted in different directions using any of the 4 sides even without clamps, allowing you to cut the system’s cost, and can be easily fitted or retrofitted even into very compact machines.

TC CORE bi-telecentric lenses can also be coupled with the new ultra compact LTCLHP CORE series telecentric illuminators to build super small yet extremely accurate measurement systems.

Opto Engineering – Telecentric [TC10M SERIES]

TC10M series features high-resolution telecentric optics with an image circle of 28 mm that perfectly fit cameras with large sensors, up to APS-C format. These lenses also feature a compact and robust design that is suitable for industrial environments.

Their excellent optical performance and high resolution make them ideal for several applications such as flat panel display checks, high-precision measurement of mechanical parts, semiconductor and electronics inspection.

Opto Engineering – Telecentric [TC12M SERIES]

TC12M series features high-resolution telecentric lenses for sensors with an image circle up to 33.5 mm. They perfectly fit cameras with large sensors, up to APS-H format.

TC12M series lenses feature a compact and robust design that makes them ideal for various industrial applications.

Opto Engineering – Telecentric [TC1MHR CORE SERIES]

TC1MHR CORE series is a range of ultra-compact telecentric lenses tailored for high-resolution sensors up to 1/1.2”. TC1MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique opto-mechanical design, these lenses offer very high resolution, low F#, nearly zero distortion and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.

Thanks to the M6 threads located on multiple sides Opto Engineering® TC1MHR CORE lenses can be mounted in several orientations, even without clamping mechanics. For maximum flexibility, a special front mounting clamp is also available.

Opto Engineering – Telecentric [TC2MHR CORE SERIES]

TC2MHR CORE series features ultra-compact telecentric lenses tailored for high-resolution sensors up to 1”. TC2MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique opto-mechanical design, these lenses offer very high resolution, nearly zero distortion and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.

Our compact telecentric lenses can be mounted in several orientations thanks to the M6 threads located on multiple sides, even without clamping mechanics. For maximum flexibility, a special front mounting clamp is also available.
