Conveyor Bearing Block attaches to the extrusion body and holds the bearing used for the rollers on the conveyor. Block includes the bearing, T nut, and fasteners. The bearing fits the ½” diameter shaft of the rollers. Designed for easy bearing replacement when needed. The block has a boss to position and guide the block onto the extrusion fastener slot.
Tension Block – Use this block at the idle roller end to give precise belt tension adjustment. Use this in conjunction with the AFC-1 bearing blocks. This block attaches into the extrusion T slot with included fasteners. The included tension adjustment screw can be turned with a standard open end wrench.

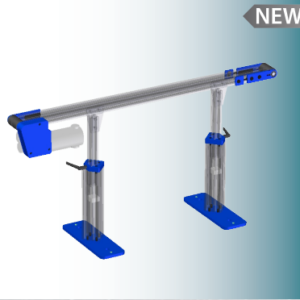

Conveyor Kit includes everything you would need to build a conveyor except the motor, extrusion, and conveyor belt. This kit gets you a drive kit, bearing blocks, tensioners, rollers, and stands. Includes (3) AFC-1, (2) AFC-10, (1) AFC-20-DK, (2) AFC-14V-X.X, and (quantity) AFC-7-SKF. Reference the web site for information on configuring your custom kit application.
Conveyor rollers are available for 1.5”, 3.0”, and 4.5” frame widths. Roller can be used for a drive or idle roller. Rollers feature a standard 6mm centered V belt driver for both drive and belt tracking. This V belt groove aligns with the T slot in the extrusion so that the belting material is guided the entire length of the conveyor.
Under drive motor plate is used to mount the drive motor to the side of the conveyor body extrusion. Plate attaches with included T-nut plate and fasteners. Boss locates the plate into the extrusion T slot. Bearing included for the drive roller shaft. Mounting pattern for 90° gear motor. Should not be used without the AFC-21 Under drive belt cover.
Stand Foot Plate attaches to the 3.0” extrusion used on a stand base. Bolt pattern for the extrusion orients at the 45° angle needed. Plate makes a stable base that has provisions for both leveling screws and floor anchor points.
Stand Lock Plate attaches to the end of the 3.0” stand base extrusion end tapped holes. The 1.5” adjustable stand extrusion orients at a 45° angle to fit inside the 3.0” extrusion. Included with this plate is the handle kit to lock the adjusting extrusion and easily set the height.
Stand kit without foot includes everything needed except the extrusion to build an adjustable height stand without the foot plate. Extrusions must have the end holes tapped to attach the plates. Included (1) AFC-6, (1) AFC-7, and (1) AFC-7H.
Stand kit with foot includes everything needed except the extrusion to build an adjustable height stand including the foot plate. Extrusions must have the end holes tapped to attach the plates. Included (1) AFC-6, (1) AFC-7, (1) AFC-7H, and (1) AFC-25.
