Product Catalog
Lucid Vision Lab has a shared vision - to build innovative cameras and components that help customers solve their unique design challenges today in order to succeed in their vision tomorrow. For digital imaging technology to keep up with current and emerging applications, it must be fluid, it must be inspired. Innovate dynamically to create products that meet the demands of machine vision for Industry 4.0. It is an exciting time to be part of a new era of industrial production where machine vision will play a central role in smart manufacturing.

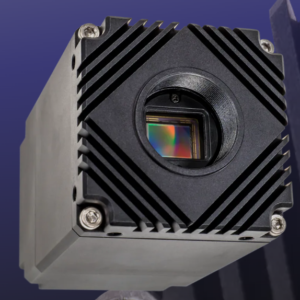

The Atlas10 UV 10GigE (10GBASE-T) PoE+ camera, featuring the high-sensitivity Sony UV 8.1 MP IMX487 sensor, is capable of capturing images across the ultraviolet (UV) light spectrum range (200 to 400nm). Utilizing Pregius S back-illuminated sensor technology the camera’s high sensitivity of the 200 to 400nm range opens up a world of industrial applications with greater precision in transparent materials (plastic and PET), semiconductor inspection, material sorting and more.

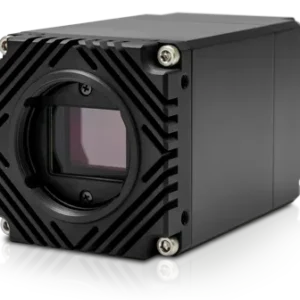

The perfect combination – fast 10 Gigabit Ethernet with Power over Ethernet (PoE) paired with Sony’s 4th generation Pregius S CMOS sensors, the Atlas10 improves simplicity and brings performance for high speed applications to new levels. All Atlas10 10GigE cameras are actively sensor aligned for maximum optical performance. The Atlas10 models feature Sony’s 4th generation Pregius S global shutter CMOS sensors.
10 Gigabit Ethernet with Power over Ethernet (PoE) paired with Sony’s 4th generation Pregius-S CMOS sensors allows the Atlas10 to reach faster frame rates at high resolutions over a single cable. The 10GigE interface also allows Pregius-S sensors to run at high bit depths (10/12-bit ADC), helping to maximize image quality while still maintaining smooth frame rates. With the option to reduce the region of interest (ROI), along with binning and decimation options, users can unlock even higher frame rates on the Atlas10.
The Atlas10 UV 10GigE (10GBASE-T) PoE+ camera, featuring the high-sensitivity Sony UV 8.1 MP IMX487 sensor, is capable of capturing images across the ultraviolet (UV) light spectrum range (200 to 400nm). Utilizing Pregius S back-illuminated sensor technology the camera’s high sensitivity of the 200 to 400nm range opens up a world of industrial applications with greater precision in transparent materials (plastic and PET), semiconductor inspection, material sorting and more.

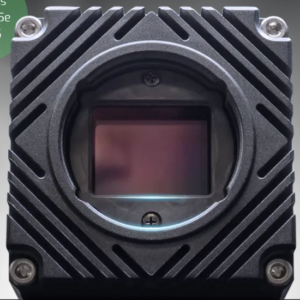

The Atlas 5GigE industrial camera streams at 600 MB/s (5Gbps/5GigE), allowing for high resolutions and fast frame rates over standard CAT5e / CAT6 cables up to 100 meters. It features a TFL lens mount (M35) for high-resolution models, C mount Pregius S models, and IP67 models with dust and water protection.

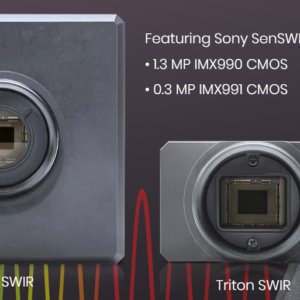

The Atlas SWIR is a Factory Tough IP67 camera with high-performance sensor cooling designed to provide reliable operation and consistent imaging performance within -20 to 50°C industrial environments. The Atlas is equipped with an integrated single-stage thermoelectric sensor cooling (TEC1), along with an internal heatsink and larger camera case resulting in a constant 15°C sensor temperature for low dark current during streaming. For an in-depth look at model specifications please click the part numbers below.
The Triton SWIR provides the same Factory Tough IP67 features as the Atlas SWIR but does not include the internal cooling components. The Triton does not contain a TEC1 cooling device or a large internal heatsink. This allows the camera to be more compact and cost-effective, however, users must manage their own cooling solution for the camera to regulate increased dark current during operation. This camera is intended for those who want maximum design flexibility and control over their own thermal management design. For an in-depth look at model specifications please click the part numbers below.

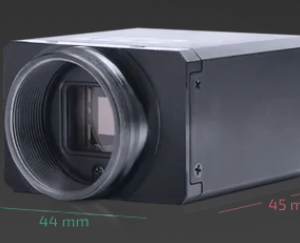

The Triton2 offers unprecendented performance in a cost-effective, compact camera. The adoption of a 2.5 GigE (300 MB/s) interface enables higher bandwith than 1 GigE cameras without compromising on size, thermal management, or Power over Ethernet (PoE) support.

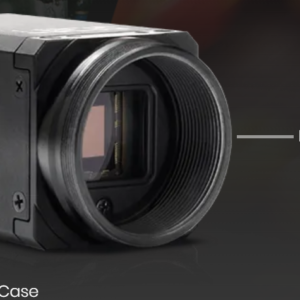

Built with industrial grade immunity. Lightweight and compact 29 x 29 mm size. Active sensor alignment for superior optical performance. GigE Vision and GenICam compliant PoE machine vision camera designed for all industrial environments.

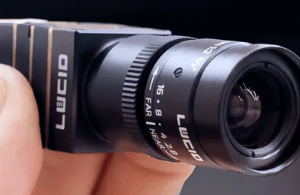

Phoenix is a flexible GigE PoE camera module designed for easy OEM integration. With a wide selection of sensors from 0.4 MP to 20 MP, 4 lens mounts,3 camera orientations, and 3 interface connector options, the camera can be adapted for various applications.
