Product Catalog
Mech-Mind Robotics is a leading provider of 3D vision cameras, machine vision software, intelligent robotic solutions, etc. To drive the ubiquity of intelligent robots, Mech-Mind has leveraged extensive technical strength to modernize manufacturing by breathing new life into industrial robots.
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye LSR L can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 500–1500 mm
Near FOV: 480 × 360 @ 0.5 m
Far FOV: 1500 × 1200 @ 1.5 m
Resolution: Depth Map：2048 × 1536, RGB：4000 x 3000 OR 2000 x 1500
Megapixels: 3.0 MP
Z Repeatability: 0.2 mm @ 1.5 m
VDI/VDE Accuracy: 1.0 mm @ 1.5 m
Typical Capture Time: 0.5–0.9 s
Baseline: About 140 mm
Dimensions: About 222 mm × 77 mm × 126 mm
Weight: About 1.8 kg
Operating Temperature: -10–45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC,3.75 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Red laser (638 nm, Class 2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration

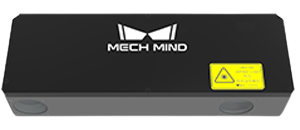

Mech-Eye Log M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:

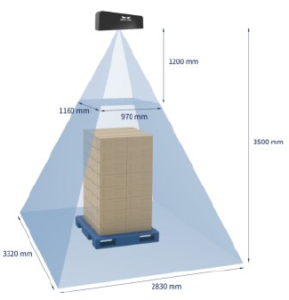

Optimal Working Distance: 1200–3500 mm
Near FOV: 970 × 1160 @ 1.2 m
Far FOV: 2830 × 3320 @ 3.5 m
Resolution: 2048 × 1536
Megapixels: 3 MP
Z Repeatability: 1.0 mm @ 3 m
VDI/VDE Accuracy: 3.0 mm @ 3m
Typical Capture Time: 0.7–1.1 s
Baseline: About 400 mm
Dimensions: About 481 mm × 98 mm × 145 mm
Weight: About 4.3 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC,3.75 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye Log M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 300 ± 20 mm
Near FOV: 135 × 90 @ 280 mm
Far FOV: 150 × 100 @ 320 mm
Resolution: 2048 × 1536
Megapixels: 3 MP
Z Repeatability: 2.6 μm @ 0.3m **Region : 0.09 μm @ 0.3 m
VDI/VDE Accuracy: 0.03 mm @ 0.3 m
Typical Capture Time: 0.6–0.9 s
Baseline: About 80 mm
Dimensions: About 260 mm × 65 mm × 142 mm
Weight: About 1.9 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC,3.75 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye Log M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 300–600 mm
Near FOV: 220 × 160 @ 0.3 m
Far FOV: 430 × 320 @ 0.6 m
Resolution: 1280 x 1024
Megapixels: 1.3 MP
Z Repeatability: 0.1 mm @ 0.5 m
VDI/VDE Accuracy: 0.1 mm @ 0.5 m
Typical Capture Time: 0.7–1.1 s
Baseline: About 93 mm
Dimensions: About 160 mm × 52 mm × 87 mm
Weight: About 0.8 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC,1.5 A
Safety & EMC: CE/FCC/VCCI
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration

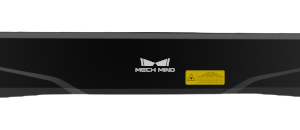

Mech-Eye LSR L can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:

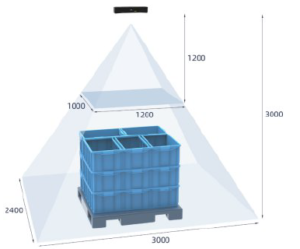

Optimal Working Distance: 1200–3000 mm
Near FOV: 1200 × 1000 @ 1.2 m
Far FOV: 3000 × 2400 @ 3.0 m
Resolution: Depth Map：2048 × 1536, RGB：4000 x 3000 OR 2000 x 1500
Megapixels: 3.0 MP
Z Repeatability: 0.5 mm @ 3 m
VDI/VDE Accuracy: 1.0 mm @ 3 m
Typical Capture Time: 0.5–0.9 s
Baseline: About 380 mm
Dimensions: About 459 mm × 77 mm × 86 mm
Weight: About 2.9 kg
Operating Temperature: -10–45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC,1.5 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Red laser (638 nm, Class 2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration

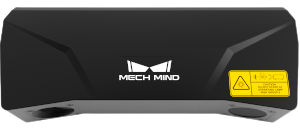

Mech-Eye Pro S can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 500–1000 mm
Near FOV: 370 × 240 @ 0.5 m
Far FOV: 800 × 450 @ 1.0 m
Resolution: 1920 × 1200
Megapixels: 2.3 MP
Z Repeatability: 0.05 mm @ 1 m
VDI/VDE Accuracy: 0.1 mm @ 1 m
Typical Capture Time: 0.3–0.6 s
Baseline: About 180 mm
Dimensions: About 265 mm × 57 mm × 100 mm
Weight: About 1.6 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC, 3.75 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration

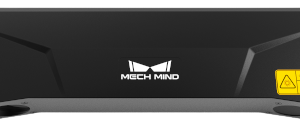

Mech-Eye Pro M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 1000–2000 mm
Near FOV: 800 × 450 @ 1.0 m
Far FOV: 1500 × 890 @ 2.0 m
Resolution: 1920 × 1200
Megapixels: 2.3 MP
Z Repeatability: 0.2 mm @ 2 m
VDI/VDE Accuracy: 0.2 mm @ 2 m
Typical Capture Time: 0.3-0.6 s
Baseline: About 270 mm
Dimensions: About 353 mm × 57 mm × 100 mm
Weight: About 1.9 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC, 3.75 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration

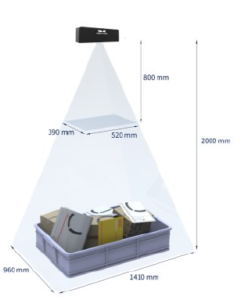

Mech-Eye Log M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 800–2000 mm
Near FOV: 520 × 390 @ 0.8 m
Far FOV: 1410 × 960 @ 2.0 m
Resolution: 1280 x 1024
Megapixels: 1.3 MP
Z Repeatability: 0.3 mm @ 2 m
VDI/VDE Accuracy: 0.3 mm @ 2 m
Typical Capture Time: 0.3–0.5 s
Baseline: About 280 mm
Dimensions: About 387 mm × 72 mm × 130 mm
Weight: About 2.4 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC, 3.75 A
Safety & EMC: CE/FCC/VCCI
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration

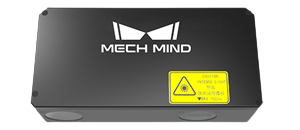

Mech-Eye Log S can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:

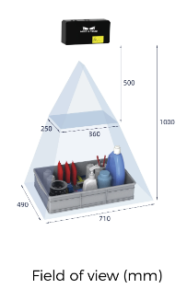

Optimal Working Distance: 500–1000 mm
Near FOV: 360 × 250 @ 0.5 m
Far FOV: 710 × 490 @ 1.0 m
Resolution: 1280 x 1024
Megapixels: 1.3 MP
Z Repeatability: 0.1 mm @ 1 m
VDI/VDE Accuracy: 0.2 mm @ 1 m
Typical Capture Time: 0.3–0.5 s
Baseline: About 150 mm
Dimensions: About 270 mm × 72 mm × 130 mm
Weight: About 2.2 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC, 3.75 A
Safety & EMC: CE/FCC/VCCI
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye Nano can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 300-600 mm
Near FOV: 220 x 150 mm @ 0.3 m
Far FOV: 440 x 300 @ 0.6 m
Resolution: 1280 x 1024
Megapixels: 1.3 MP
Z Repeatability: 0.1 mm @ 0.5 m
VDI/VDE Accuracy: 0.1 mm @ 0.5 m
Typical Capture Time: 0.6-1.1 s
Baseline: About 68 mm
Dimensions: About 145 mm × 51 mm × 85 mm
Weight: About 0.7 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC,1.5 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
