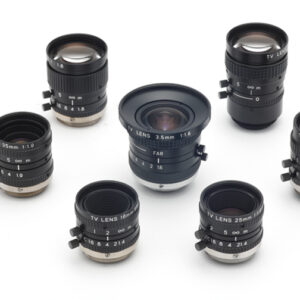

Myutron Fixed Focal Lens – MV Series

Features:

  • Focal length f3.5mm – f100mm, 10 models are available
  • Available for focus and iris lock screws
  • Suitable for various application

Product Model:

Model Focal length ∞ F No. Range of WD Angle of view (H x V) Filter pitch Maximum
Compatible sensor
MV0316 3.5mm 1.6 0.1m〜∞ 84.9°×68.9° M43 P=0.75 1/2”
MV0614 6.0mm 1.4 0.2m〜∞ 54.6°×42.3° M27 P=0.5 1/2”
MV0813 8.0mm 1.3 0.2m〜∞ 57.8°×45° M25.5 P=0.5 2/3”
MV1214 12mm 1.4 0.3m〜∞ 29°×21.9° M27 P=0.5 1/2”
MV1614 16mm 1.4 0.4m〜∞ 30.4°×23° M27 P=0.5 2/3”
MV2514 25mm 1.4 0.5m〜∞ 28.5°×21.6° M27 P=0.5 2/3”
MV3519 35mm 1.9 0.5m〜∞ 14.4°×10.8° M27 P=0.5 2/3”
MV5018 50mm 1.8 1m〜∞ 10.5°×7.9° M30.5 P=0.5 2/3”
MV7527 75mm 2.7 1m〜∞ 6.5°×4.9° M30.5 P=0.5 2/3”
MV10035 100mm 3.5 1m〜∞ 5.1°×3.8° M30.5 P=0.5 2/3”
Myutron Fixed Focal Lens – FV Series

Features:

  • Design for machine vision application,excellent performance at short WD, less than 500mm
  • Reduce color aberration, compared with Conventional Fixed Focal Lens
  • TV distortion less than 0.1% (except for f4mm)
  • Possible to use for macro imaging without extension ring

Product Model:

Model Focal length ∞ F No. Range of WD TV distortion Angle of view (H x V) Filter pitch Maximum
Compatible sensor
FV0420 4mm 2.0 0.1m〜∞ 0.91% 75.14°x59.96° M27 P=0.5 1/2”
FV0622 6.5mm 2.2 0.1m〜∞ -0.01% 52.35°×40.47° M30.5 P=0.5 1/2”
FV1022 10mm 2.2 0.1m〜∞ -0.08% 34.61°×26.31° M27 P=0.5 1/2”
FV1520 15mm 2.0 0.1m〜∞ -0.09% 31.79°×24.11° M27 P=0.5 2/3”
FV2020 20mm 2.0 0.1m〜1m -0.10% 24.11°×18.2° M27 P=0.5 2/3”
FV2520 25mm 2.0 0.15m〜1m -0.01% 19.58°×14.75° M27 P=0.5 2/3”
FV3020 30mm 2.0 0.2m〜1m -0.02% 16.69°×12.55° M27 P=0.5 2/3”
FV3519 35mm 1.9 0.3m〜1m -0.03% 14.32°×10.77° M27 P=0.5 2/3”
FV5025 50mm 2.5 0.4m〜1m 0.03% 6.5°×4.9° M27 P=0.5 2/3”
FV7538 75mm 3.8 0.4m〜1m -0.01% 6.81°×5.11° M27 P=0.5 2/3”
Myutron Fixed Focal Lens – HS Series

Features:

  • HS0420H and HS0618H are designed for low distortion
  • Stable performance from macro to infinity (∞)
  • Suitable for 3 Mega Pixel (1/1.8″,2/3″)
  • High durability

Product Model:

Model

Focal length

∞F No.

Range of WD

TV distortion

 Angle of view（H×V） Filter pitch Maximum
Compatible sensor
HS0420H

4mm

2.0

100mm – ∞

  0.26% 85°×68° 1/1.8”
HS0618H

6mm

1.8

100mm – ∞

  -0.13% 61°×47° M27 P=0.5 1/1.8”
HS0814J

8mm

1.4

100mm – ∞

 0.83% 56°×44° M34 P=0.5 2/3”
HS1214J

12mm

1.4

150mm〜∞

 -0.12% 39°×30° M30.5 P=0.5 2/3”
HS1614J

16mm

1.4

200mm〜∞

 -0.14% 30°×23° M30.5 P=0.5 2/3”
HS2514J

25mm

1.4

300mm〜∞

  -0.12% 19°×15° M30.5 P=0.5 2/3”
HS3514J

35mm

1.4

400mm〜∞

  -0.06% 14°×11° M30.5 P=0.5 2/3”
HS5018J

50mm

1.8

500mm〜∞

 0.07% 10°×7.7° M30.5 P=0.5 2/3”



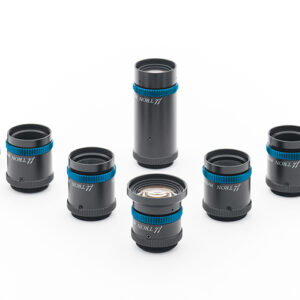

Myutron Fixed Focal Lens – RV Serie (Copy)

Features:

  • Suitable for Resistance against vibration
  • Focus : double nut and set screw
  • Possible to select iris : 2(OPEN) / 4/ 5.6 / 8
  • Compact design
  • 12 kinds of focal length are available

Product Model:

Model Application Focal Length

Maximum Object
Magnification

Range of WD

 FNO

TV distortion

Angle of view
（ H x V ）

 Maximum Compatible
Sensor
RV0420 Resistance against
vibration Lens		 4mm 0.038x

0.1m – ∞

2 (OPEN)

0.91%

 75.24°x 59.96° 1/2”
RV0622 6.5mm

0.055x

0.1m – ∞

2.2 (OPEN)

 -0.01% 52.35°x 40.47° 1/2”
RV0814 8mm 0.074x 0.1m – ∞

1.4 (OPEN)

 0.83% 56°x 44° 2/3”
RV1022 10mm 0.1x

0.1m – ∞

2.2 (OPEN)

-0.08%

 34.61°x 26.31° 1/2”
RV1214 12mm 0.08x

0.15m – ∞

1.4 (OPEN)

-0.12%

 39°x 30° 2/3”
RV1520 15mm 0.3x 0.05m – ∞

2 (OPEN)

 -0.09% 31.79°x 24.11° 2/3”
RV2020 20mm 0.25x

0.09m – 1m

2 (OPEN)

-0.10%

 24.11°x 18.2°  2/3”
RV2520 25mm 0.2x 0.15m – 1m

2 (OPEN)

-0.01%

 19.58°x 14.75°  2/3”
RV3020 30mm 0.16x 0.2m – 1m

2 (OPEN)

 -0.02% 16.69°x 12.55°  2/3”
RV3519 35mm 0.13x 0.3m – 1m

1.9 (OPEN)

 -0.03% 14.32°x 10.77°  2/3”
RV5025 50mm

0.13x

0.4m – 1m

2.5 (OPEN)

0.03%

10.38°x 7.82°

  2/3”
RV7538 75mm 0.2x 0.4m – 1m

3.8 (OPEN)

-0.01%

6.81°x 5.11°

  2/3”

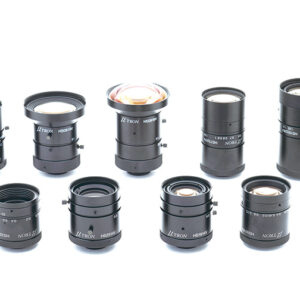

Myutron Fixed Focal Lens – HS-V Series

Features:

  • Suitable for 1” and 1.1”( 3.45μm/pixel)
  • Compact design
  • Stable performance at different working distance, from macro to infinity by floating design
  • Robust design
  • f35mm, 50mm, 75mm and 100mm are suitable for 1.1” (φ17.4mm)

Product Model:

Model Focal length ∞ F No. Range of WD TV distortion Angle of view (V x H) Filter pitch Maximum
Compatible sensor
HS0619V 6mm 1.9 100mm～∞ 0.83% 94.7°×78.1° – 1”
HS0818V 8mm 1.8 100mm～∞  -0.17% 78.1°×62.1° M58  P=0.75 1”
HS1214V 12.5mm 1.4 300mm～∞ -0.69%  54.9°×42.2° M40.5  P=0.5 1”
HS1614V 16mm 1.4 300mm～∞ -0.85% 44.2°×33.5°  M40.5  P=0.5 1”
HS2514V 25mm 1.4 300mm～∞ -0.02% 28.6°×21.6°  M40.5  P=0.5 1”
HS3516V 35mm 1.6 200mm～∞ 0.12% 22.1°×16.7°  M40.5  P=0.5  1.1”
HS5016V  50mm 1.6 300mm～∞ 0.14% 16.1°×12.1°  M40.5  P=0.5  1.1”
HS7520V  75mm  2.0 440mm～∞ 0.05% 11.1°×8.3°  M40.5  P=0.5  1.1”
HS10028V  100mm  2.8 620mm～∞ 0.09% 8.4°×6.3° M46  P=0.75  1.1”

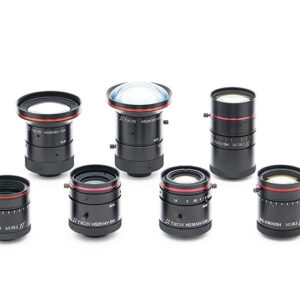

Myutron Fixed Focal Lens – HS-V-SW Series

Features:

  • Available for SWIR image sensor 1”,1.1”, InGaAs Sensor
  • Special design to transmit SWIR 950 〜 1800 nm

Product Model:

Model Number Focal Length ∞F No.

Range of WD

TV distortion

Angle of view （H×V）

Filter pitch

 Maximum Compatible Sensor

Mount
HS0619V-SW 6mm 1.9

100mm 〜 ∞

0.14％

94.1°×77.5°

 – 1”

C
HS0818V-SW 8mm 1.8

100mm 〜 ∞

-0.52％

77°×61°

M58 P=0.75

1”

 C
HS1214V-SW 12.5mm 1.4 300mm 〜 ∞ -1.06％

54.2°×41.5°

 M40.5 P=0.5 1”  C
HS1614V-SW 16mm 1.4 300mm 〜 ∞

-0.97%

 43.6°x 33.1° M40.5 P=0.5 1”  C
HS2514V-SW 25mm 1.4 300mm 〜 ∞

-0.01%

28.1°x 21.3°

 M40.5 P=0.5 1” C
HS3516V-SW  35mm 1.6 200mm 〜 ∞ 0.09% 21.5°x 16.3° M40.5 P=0.5 1.1” C
 HS5016V-SW  50mm 1.6 300mm 〜 ∞ 0.10% 15.8°x 11.9° M40.5 P=0.5 1.1” C
HS7520V-SW  75mm 2.0 440mm 〜 ∞ 0.05% 10.8°x 8.1° M40.5 P=0.5 1.1” C
HS10028V-SW 100mm 2.8 620mm 〜 ∞ 0.09% 8.2°x 6.1° M46.5 P=0.75 1.1” C





Myutron Fixed Focal Lens – HF Series

Features:

  • f12mm, HF1218V is suitable for 25 Mega Pixel and 12 Mega Pixel
  • f16mm – f75mm are compatible with 1.1”- 1.2”
  • Suitable for different types of sensor
  • Excellent performance at macro imaging, compared with conventional Mega Pixel Fixed Focal lens
  • Stable performance at different working distance by floating design
  • Large aperture
  • Robust design, suitable for machine vision applications

Product Model:

Model Focal length ∞ F No. Range of WD Maximum
Magnification		 TV distortion Filter pitch Maximum
Compatible sensor
HF0528J-2 5mm 2.8 50mm〜∞ 0.076x 0.29% M55 P=0.75 2/3”
HF0818J-2 8mm 1.8 100mm〜∞ 0.078x 0.31% M40.5 P=0.5 2/3”
HF1214J-2 12mm 1.4 100mm〜∞ 0.1x -0.31% M37.5 P=0.5 2/3”
HF1218V 12mm 1.8 100mm〜∞ 0.1x -0.10% M62 P=0.75(OPTION) 1.1”
HF1618V-2 16mm 1.8 33mm〜∞ 0.3x -0.28% M49 P=0.75 1.1”
HF2514V-2 25mm 1.4 80mm〜∞ 0.3x -0.09% M52 P=0.75 1.1”
HF3514V-2 35mm 1.4 110mm〜∞ 0.3x 0.027% M46 P=0.75 1.1”
HF5018V-2 50mm 1.8 192mm〜∞ 0.3x -0.01% M49 P=0.75 1.2”
HF7518V-2 75mm 1.8 290mm〜∞ 0.3x 0.00% M55 P=0.75 1.2”
Myutron Fixed Focal Lens – HF-V DN / VV Series

Features:

  • f12mm, 16mm, 25mm, 35mm, 50mm, 75mm are available for Fixed Focal Lens
  • f16～50mm is available for Varifocal Lens
  • 400nm～950nm Focus Shift correction
  • Realizes color reproduction in color images
  • Super high resolution, Low distortion, and excellent uniformity of brightness
  • Line up : Extension ring for close-up purpose

Product Model:

Model Focal length ∞F No. Range of WD Angle of view（HxV） Filter pitch

Maximum compatible sensor
HF1216V DN 12mm 1.6 1.8m – ∞ 28.3°× 21.8° M43 P=0.75 1″
HF1616V DN 16mm 1.6 0.8m – ∞ 21.9°× 16.6° M43 P=0.75 1″
HF2516V DN 25mm 1.6 1.0m – ∞ 28.2°× 21.2° M43 P=0.75 1″
 HF3516V DN 35mm 1.6 1.5m – ∞ 20.8°× 15.6° M43 P=0.75 1″
 HF5018V DN 50mm 1.8 1.5m – ∞ 15.0°× 11.2° M43 P=0.75 1″
HF7520V DN 75mm 2.0 1.5m – ∞ 10.0°×　7.5 ° M46 P=0.75 1″
VV1618HF DN 16〜50mm 1.8 2m – ∞ Wide：44.4°x33.4°
Tele：14.9°x11.3°		 M55 P=0.75 1″

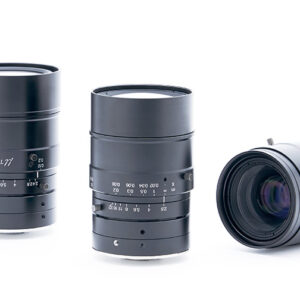

Myutron Fixed Focal Lens – MS-C Series

Features:

  • Possible to capture wide view with c mount full size camera
  • Excellent relative illumination
  • Stable performance from macro to infinity by floating design

Product Model:

Model Focal length ∞FNO

Range of WD

Maximum Magnification

TV distortion

Maximum Compatible sensor

Mount
MS1828-C 18mm 2.8

97mm～∞

0.15x

0.52%

4/3”

 C
MS2524-C 25mm 2.4

118mm～∞

0.2x

-0.27%

4/3”

 C
MS3520-C 35mm 2.0

93mm～∞

0.39x

-0.11%

4/3”

 C

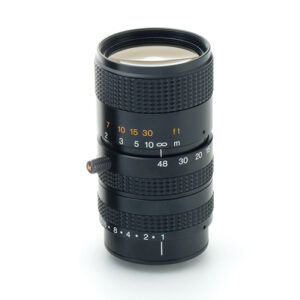

Myutron Macro Zoom Lens – 6.0x Zoom Lens

Features:

  • WD500mm – ∞　*Macro photography: Possible to use at WD10mm by pulling a macro lever
  • Large aperture, suitable for high speed camera

Product Model:

Model Model Focal length
(Zoom Ration)		 ∞ F No. WD Magnification
at WD500mm		 Filter Pitch Maximum
Compatible sensor
PH6 x 8Macro 8〜48mm（6x） 1.0 500mm〜∞ 0.017〜0.1 M46 P=75 1/2”

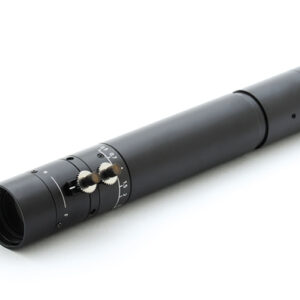

Myutron Macro Zoom Lens – CMZ0540-2

Features:

  • Long WD, 180mm
  • Focus function is available
  • φ29mm, suitable for small and limited spaces

Product Model:

Model Magnification WD Resolution Object side NA Depth of field TV distortion Maximum
Compatible sensor
CMZ0540-2 0.5x～4.0x 180.3mm 14μ～6.3μ 0.024～0.053 3.3～0.19mm 0.02% 1/3”

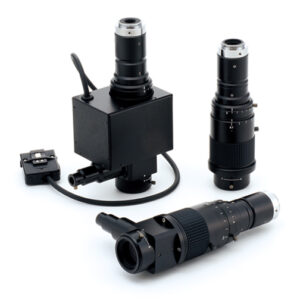

Myutron Macro Zoom Lens – HMZ Series

Features:

  • Compatible with 1/1.8” of Mega Pixel camera
  • High resolution and compact design
  • High contrast and low distortion
  • Improve uniformity of brightness for co-axial illumination
  • Magnification and working distance can be converted to 0.21x – 18x, WD37 – 329mm by using converters

Product Model:

Model Magnification WD Resolution Object side NA Depth of field TV distortion Maximum
Compatible sensor
HMZ0745 (Manual Zoom) 0.7x〜4.5x 92mm 11.5μ〜2.87μ 0.03〜0.12 2mm〜
0.08mm		 0.05%〜0.08% 1/1.8”
HMZ0745C (Manual Zoom/Co-axial type) 0.7x〜4.5x 92mm 11.5μ〜2.87μ 0.03〜0.12 2mm〜0.08mm 0.05%〜0.08% 1/1.8”
HMZ0745C-SM (Motorized Zoom/Co-axial type) 0.7x〜4.5x 92mm 11.5μ〜2.87μ 0.03〜0.12 2mm〜0.08mm 0.05%〜0.08% 1/1.8”

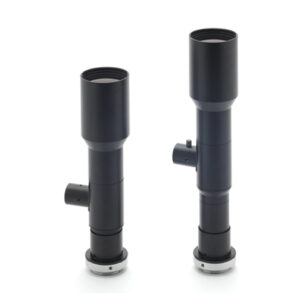

Myutron Telecentric Lens – TL Series (WD300 Telecentric Lens)

Features:

  • Suitable for applications required for long WD
  • Long WD, over 300mm
  • TL10C-310 is compatible with 2/3”
  • TV distortion is less than 0.00%

Product Model:

Model Magnification F No. Object side NA WD OI Depth of field Resolution TV distortion Maximum
Compatible sensor

Mount
TL07C-340 0.7x 11.6 0.03 340.5mm 505mm 1.9mm 11.2μ 0.00％ 1/1.8” C
TL10C-310 1.0x 15.5 0.032 310.5mm 504.2mm 1.2mm 10.5μ 0.00％ 2/3” C

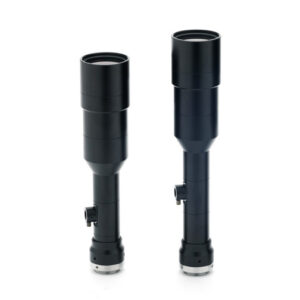

Myutron Telecentric Lens – TL Series (WD240 High Magnification Telecentric Lens)

Features:

  • Suitable for vacuum chamber, working environment in high temperature, etc.., required for long WD
  • 4x and 6x are available
  • All models are designed for co-axial illumination

Product Model:

Model Magnification F No. Object side NA WD OI Depth of field Resolution TV distortion Maximum
Compatible sensor

Mount
TL40C-240 4x 28.6 0.07 239mm 449.9mm 0.14mm 4.8μ 0.22% 2/3” C
TL60C-240 6x 42.9 0.07 239mm 470.6mm 0.1mm 4.8μ 0.0% 2/3” C

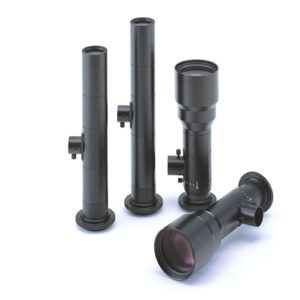

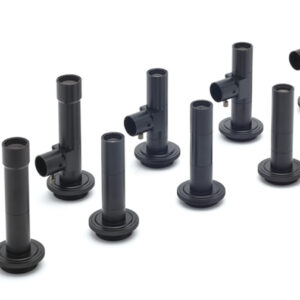

Myutron Telecentric Lens – TL Series (WD220 Built-in type Telecentric Lens)

Features:

  • High resolution and compact design
  • Suitable for various applications, alignment, inspection, measurement, etc..
  • Adjustable iris for 0.5x and 0.7x
  • Compatible with 3 Mega Pixel of 1/1.8”

Product Model:

Model Magnification F No. Object side NA WD OI Depth of field Resolution TV distortion Maximum
Compatible sensor

Mount
TL05C-220 0.5x 6.79 0.037 220.5mm 355mm 2.17mm 9.1μ 0.02％ 1/1.8” C
TL07C-220 0.7x 9.50 0.037 220.5mm 365mm 1.55mm 9.1μ 0.02％ 1/1.8” C
TL10C-220 1x 13.35 0.037 222.5mm 384mm 1.07mm 9.0μ 0.00％ 1/1.8” C
TL20C-220 2x 26.42 0.038 222.5mm 400mm 0.53mm 8.8μ 0.04％ 1/1.8” C



Myutron Telecentric Lens – TL Series (WD110 Built-in type Telecentric Lens)

Features:

  • Compact and suitable for customized optical systems
  • φ16mm telecentric lens
  • R type is improved contrast and relative illumination



Myutron Telecentric Lens – TL Series (WD65 Built-in type Telecentric Lens)

Features:

  • Short OI and High NA
  • φ16mm telecentric lens
  • R type is improved contrast and relative illumination

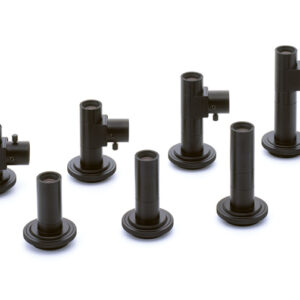

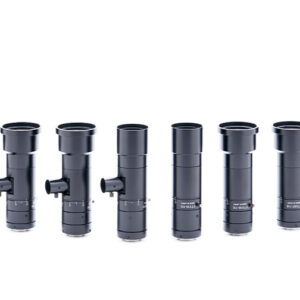

Myutron Telecentric Lens – FT Series (WD40 Built-in type Telecentric Lens)

Features:

  • Suitable for small device and limited space
  • φ16mm telecentric lens
  • Suitable for bonding, chip mounter, etc..

Product Model:

Model Magnification F No. Object side NA WD OI Depth of field Resolution TV distortion Maximum
Compatible sensor

Mount
TL20-40 2x 14.1 0.071 41.2mm 98mm 0.28mm 4.7μ 0.13％ 1/2” C
TL40-40 4x 28.2 0.071 41.2mm 106mm 0.14mm 4.7μ -0.19％ 1/2” C
TL60-40 6x 41.6 0.072 41.2mm 118mm 0.09mm 4.7μ -0.10％ 1/2” C
TL10C-40 1x 10.4 0.048 40.1mm 100.8mm 0.83mm 7.0μ 0.00％ 1/2” C
TL20C-40 2x 14.1 0.071 41.2mm 98mm 0.28mm 4.7μ 0.13％ 1/2” C
TL40C-40 4x 28.2 0.071 41.2mm 106mm 0.14mm 4.7μ -0.19％ 1/2” C
TL60C-40 6x 41.6 0.072 41.2mm 118mm 0.09mm 4.7μ -0.10％ 1/2” C

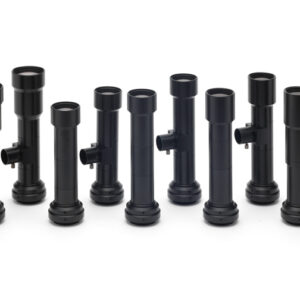

Myutron Telecentric Lens – FT Series (WD110 High NA Mega Pixel Telecentric Lens)

Features:

  • Mega Pixel telecentric lens for 2/3”
  • Suitable for 2 Mega Pixel – 5 Mega Pixel
  • High contrast with co-axial illumination
  • TV distortion less than 0.01%

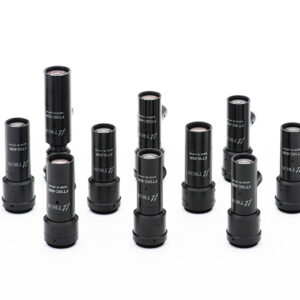

Myutron Telecentric Lens – FT Series (WD65 High NA Mega Pixel Telecentric Lens)

Features:

  • Mega Pixel telecentric lens for 2/3”
  • Suitable for 2 Mega Pixel – 5 Mega Pixel
  • High contrast with co-axial illumination
  • TV distortion less than 0.01%
  • R type is improved contrast and relative illumination

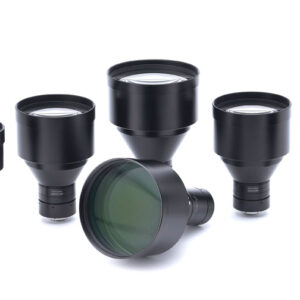

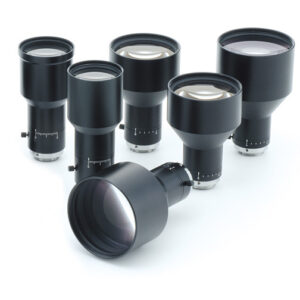

Myutron Telecentric Lens – MGTL Series (2 Mega Pixel Telecentric Lens)

Features:

  • Compact design, suitable for small device
  • Adjustable iris, possible to adjust depth of field
  • TV distortion less than 0.05%
  • MGTL05-1.1 is suitable for 1.1”
  • MGTL0275V-2 is suitable for 2/3”(φ12.8mm)

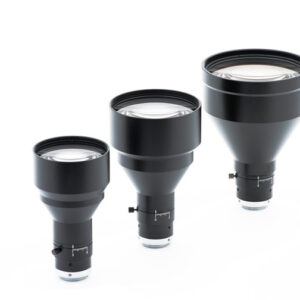

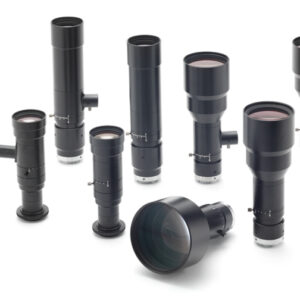

Myutron Telecentric Lens – MGTL-VM Series (Telecentric Lens for 5 Mega Pixel)

Features:

  • Suitable for 3.45μm
  • Excellent brightness, compared to Mega Pixel telecentric lenses
  • Adjustable iris, possible to adjust depth of field
  • Compact design
  • Reduce hot spots of co-axial illumination
  • MGTL10V and MGTL10VC are suitable for 1.1”



Myutron Telecentric Lens – MGTL-VM Series (Low Magnification Telecentric Lens for 5 Mega Pixel)

Features:

  • Suitable for 3.45μm
  • Line up : 0.14x, 0.17x, 0.19x and 0.22x
  • Long working distance, WD150mm
  • WD180mm type is available for 0.14x
  • Compact design with low magnification
  • Adjustable iris, possible to adjust depth of field

Product Model:

Model Magnification F No. Object side NA WD OI Depth of field Resolution TV distortion Maximum
Compatible sensor

Mount
MGTL014VM 0.14x 4.3 0.016 150.3mm 300.6mm 17.5mm 20.5μ 0.01％ 2/3” C
MGTL014VM-180 0.14x 4.4 0.016 180mm 330.2mm 18mm 21μ -0.01％ 2/3” C
MGTL017VM 0.17x 5.2 0.016 150.6mm 294.7mm 14.4mm 20.5μ 0.00％ 2/3” C
MGTL019VM 0.19x 5.7 0.017 150.6mm 298.6mm 12.6mm 20.1μ 0.00％ 2/3” C
MGTL022VM 0.22x  5.2 0.021 150.7mm 279.7mm 8.5mm 15.8μ  0.00％ 2/3” C



Myutron Telecentric Lens – MGTL-V Series (4-9 Mega Pixel Telecentric lens for 1”)

Features:

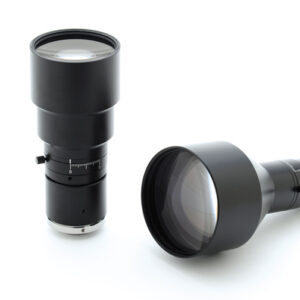

  • 4 Mega Pixel – 9 Mega Pixel telecentric lens series for 1”
  • 0.275x and 0.37x are available
  • MGTL0275V is designed for long working distance, 150mm
  • Excellent relative illumination
  • Adjustable iris, possible to adjust depth of field

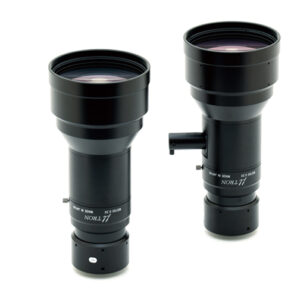

Myutron Telecentric Lens – MGTL Series (12-25 Mega Pixel Telecentric Lens for 1.1”)

Features:

  • MGTL03V and MGTL03VC are suitable for 12 Mega Pixel
  • MGTL0345V is suitable for 25 Mega Pixel
  • Long working distance, 150mm – 160mm with excellent brightness
  • Variable iris, possible to adjust DOF
  • Suitable for measurement and inspection, required for high accuracy

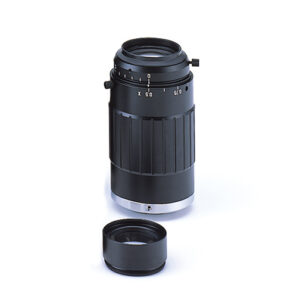

Myutron Telecentric Lens – VTL Series (5 Mega Pixel Vari Focal Telecentric Lens)

Features:

  • Telecentric lens at the whole range of magnification
  • Suitable for 5 Mega Pixel
  • Magnification of VTL0513 can be converted from 0.25x – 2.6x by using front converter
  • Reduce relative illumination
  • TV distortion less than 0.01%
  • VTL0513 is suitable for large format, up to 1.1” even though original optical design is for 2/3”

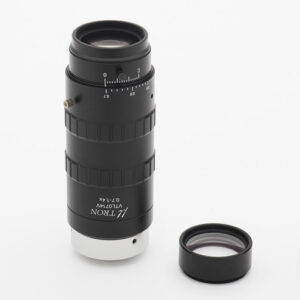

Myutron Telecentric Lens – VTL Series (25 Mega Pixel Vari Focal Telecentric Lens for 1.1”)

Features:

  • Suitable for best quality in 25 Mega Pixel ( 2.5μm/Pixel )
  • Super high resolution
  • Adjustable the depth of field and the Contrast
  • Magnification can be converted from 0.35x to 0.7x by using front converter

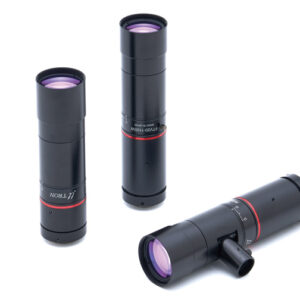

Myutron Telecentric Lens – FTV Series (SWIR Telecentric Lens for 1.1”)

Features:

  • Available for SONY IMX990, 1.3MP SWIR image sensor
  • Available for SWIR image sensor 1”, InGaAs Sensor
  • Special design to transmit SWIR 950nm-1800nm
  • Possible to capture differences and defects that cannot be seen in visible ray
  • 1.0x/2.0x lenses are adjustable iris, possible to adjust depth of field
  • New line up : No coaxial type, FTV10-110SW, FTV20-110SW

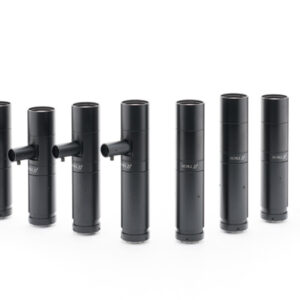

Myutron Telecentric Lens – FTV Series (WD 150mm Series 0.5x-6.0x)

Features:

  • Suitable for 1.1”, 25 Mega Pixel ( 2.5μm/Pixel ) camera
  • 0.5x-2.0x are adjustable iris, possible to adjust depth of field and contrast



Myutron Telecentric Lens – FTV Series (WD 110 mm Series 0.5x-6.0x)

Features:

  • Suitable for 1.1”, 25 Mega Pixel ( 2.5μm/Pixel ) camera
  • 0.5x-2.0x are adjustable iris, possible to adjust depth of field and contrast

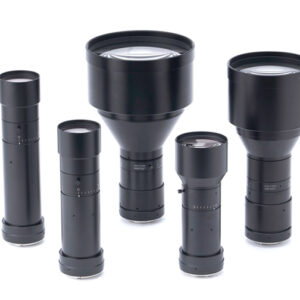

Myutron Telecentric Lens – LSTL-H Series

Features:

  • Line up : 0.35x, 0,5x, 1.0x, 1.5x and 2.0x
  • Suitable for large area sensor of high resolution,120 Mega Pixel,71 Mega Pixel, and 50 Mega Pixel
  • Design for large aperture
  • Excellent uniformity of brightness and resolution
  • Suitable for high speed and precise measurement
  • Adjustable iris, possible to adjust depth of field

Product Model:

Model Magnification F No. Object side NA WD OI Depth of field Resolution TV distortion Image Circle Mount
LSTL035H-F 0.35x 6.0 0.029 202mm 503.9mm 3.9mm 11.5μ -0.01% φ48mm F/M42
LSTL05H-F 0.5x 6.0 0.042 202mm 501.2mm 1.9mm 8.0μ 0.01% φ48mm F/M42
LSTL10H-F 1.0x 6.4 0.077 113.3mm 343.0mm 0.52mm 4.3μ 0.01% φ44mm F
LSTL15H-F 1.5x 7.8 0.095 109.1mm 359.5mm 0.17mm 3.5μ 0.02% φ44mm F
LSTL20H-F 2.0x 8.7 0.12 109.2mm 392.9mm 0.12mm 2.9μ -0.02% φ44mm F

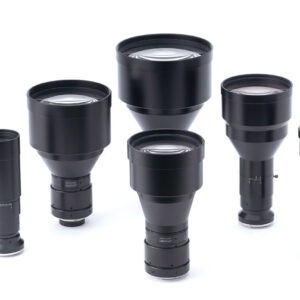

Myutron Telecentric Lens – LSTL Series

Features:

  • Reduces the focus difference due to wavelength
  • LSTL078TW-F is suitable for visible – NIR
  • Adjustable iris, possible to adjust depth of field
Myutron Telecentric Lens – MGTL Series

Features:

  • Suitable for 25 Mega Pixel and 12 Mega Pixel
  • Designed for long working distance, 200mm that can secure enough space to set up
  • Adjustable iris, possible to adjust depth of field and contrast
  • Possible to capture wide view with large format, high resolution camera
  • Flange adapter is available

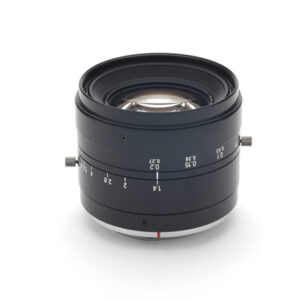

Myutron Line Sensor Lens – HB5014-F

Features:

  • f 50mm is available
  • Suitable for high speed applications such as printing, food inspection, etc..
  • Metal design, avoid aged deterioration of plastic and gum, concerned about photographic lenses
  • Suitable for large image circle and high speed camera

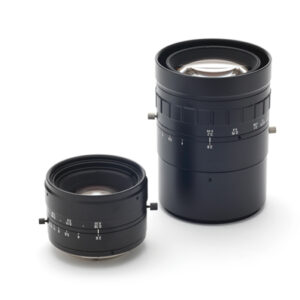

Myutron Line Sensor Lens – FV-W Series

Features:

  • Adjustable focus and iris
  • Design for infinite distance (∞), suitable for wide field of view
  • f50mm and f85 mm are available
  • FV8528W is compatible with M72 mount

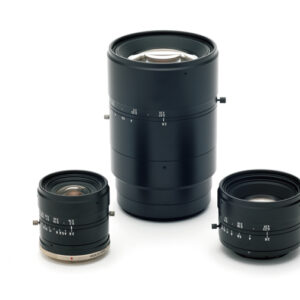

Myutron Line Sensor Lens – FV-L Series

Features:

  • Adjustable focus and iris
  • Design for macro imaging
  • Suitable for inspection of wafer, PCB, electronic parts, etc…, required for high resolution at short working distance
  • FV8528L is compatible with M72 mount
  • Compatible with large image format of high resolution area camera

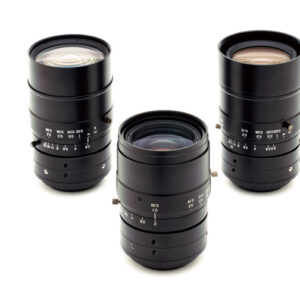

Myutron Line Sensor Lens – MS Series

Features:

  • Suitable for large format, 31 Mega Pixel – 3.45μm and Line Sensor Camera , 8K x 3.5μm
  • Adopt screw mount, stable mount mechanism without rattling
  • Achieve low distortion and wide angle for large format, φ30.7mm
  • Stable performance at different working distance by floating design
  • M48, M42 and M35 mount are available

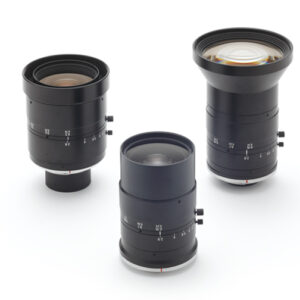

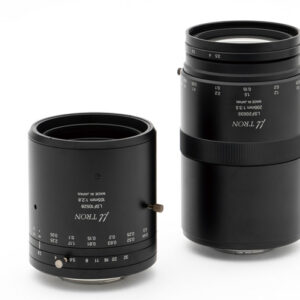

Myutron Line Sensor Lens – LSF Series (Long Focal High Resolution Lens for φ48mm)

Features:

  • Long focal distance, f105mm and f200mm
  • Suitable for 65 Mega Pixel, 50 Mega Pixel, and 31 Mega Pixel
  • Possible to use for small pixel size, 3.2μm
  • Magnification at MOD 0.3x
  • Stable performance at different WD by floating design
  • F, M58, and M42 mount are available
Myutron Telecentric Lens – FTV-SW Series

Features:

  • New line up for FTV-SWIR series : 0.5x and 0.7x
  • Suitable for Sony’s InGaAs SWIR sensor (1.3MP, 5μm/pixel)
  • Special design to transmit SWIR 950nm-1800nm
  • Possible to capture differences and defects that cannot be seen in visible ray
Myutron Line Sensor Lens – LSF Series (High Resolution and Wide View Lens for Area and Line Sensor Camera)

Features:

  • Design for high resolution and low distortion, stable performance at whole working distance
  • Suitable for Large Area Sensor Camera such as 25 Mega Pixel and 20 Mega Pixel
  • Possible to use for small pixel size, 3.5μm
  • Very low color aberration, compatible with 3-line camera
  • 「LSF5028-F」 is possible to use at 0.3x without extension ring
  • F, M58, M48 and M42 mount are available

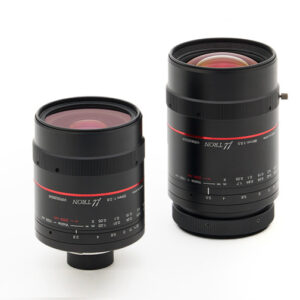

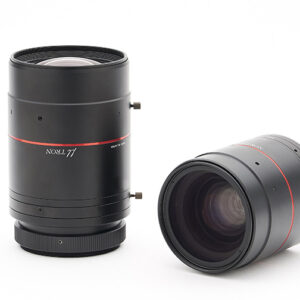

Myutron Line Sensor Lens – VIR Series

Features:

  • Suitable for Area Sensor Camera 151MP-3.76μm/Pixel,120MP-2.2μm/Pixel
  • Suitable for Line Sensor Camera 16K-3.5μm/Pixel
  • Super high resolution, Low distortion, and excellent uniformity of brightness
  • Realizes color reproduction in color images
  • Available for Visible – 2000nm type product

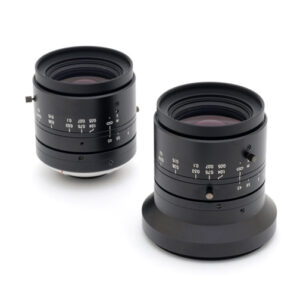

Myutron Line Sensor Lens – WF Series

Features:

  • f50mm is available
  • The widest angle for φ62mm in machine vision industry
  • Suitable for Line Sensor Camera such as 16K x 3.5μm, 12K x 5μm, 8K x 7μm
  • Possible to capture the large field of view by one camera in limited space
  • F and M72 mount are available

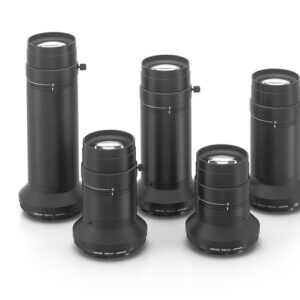

Myutron Line Sensor Lens – LS Series

Features:

  • Excellent uniformity
  • High resolution from the center to the edge of image
  • Compact design
  • High durability
  • Optical distortion less than 0.1%
  • C mount type is suitable for area sensor, 4/3”

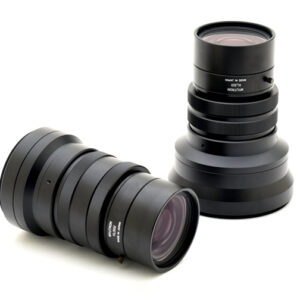

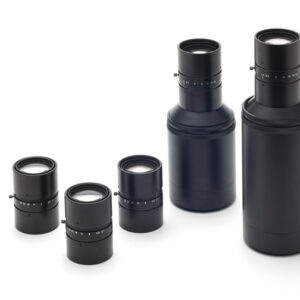

Myutron Line Sensor Lens – XLS Series (Area Sensor and Line Sensor Lens for 151 Mega Pixel and 16K x 5μm)

Features:

  • Compatible with large image circle, φ82mm
  • Suitable for Area Sensor Camera, 151 Mega Pixel, and Line Sensor Camera such as 16K x 5μm, 16K x 3.5μm
  • Adjustable magnification by lock ring
  • Design for wide angle, suitable for large field of view in limited space
  • Excellent uniformity and very low distortion
  • F, M95, M90, M84.5 and M72 mount are available
Myutron Line Sensor Lens – XLS Series (Large Area Sensor Lens for Image Circle)

Features:

  • Suitable for Line Sensor Camera such as 16K x 5um, 23K x 3.5um, 16K x 5um
  • Suitable for large Area Sensor Camera of high resolution such as 65 Mega Pixel, 50 Mega pixel, and 25 Mega Pixel
  • Reduce color aberration, suitable for 3 line sensor
  • Excellent uniformity of brightness and resolution
  • Possible to adjust ±0.05x from the original magnification by using the optional mount
  • F, M95, M90, M84.5 and M72 mount are available

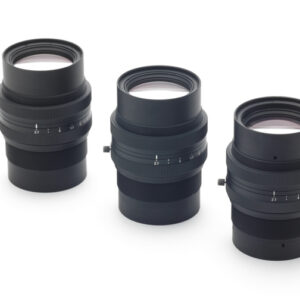

Myutron Line Sensor Lens – SP Series

Features:

  • Suitable for Line Sensor Camera such as 16K x 3.5μm and 8K x 7µm
  • Reduce relative illumination and excellent uniformity
  • Very low distortion
  • Excellent brightness, ∞F No. 2.7
  • F and M72 mount are available

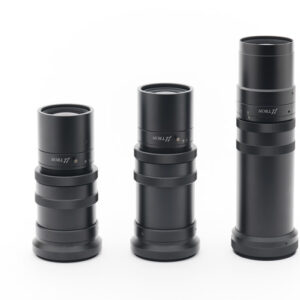

Myutron Line Sensor Lens – UL Series

Features:

  • Suitable for Area Sensor Camera 151 Mega Pixel-3.76μm, 127 Mega Pixel-3.45um, 120 Mega Pixel-2.2μm,and Line Sensor Camera 16K x3.5μm
  • Super high resolution, Low distortion, excellent uniformity of brightness and resolution
  • Low color aberration, compatible 3-line camera
  • F and M72 mount are available

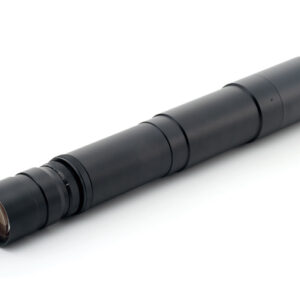

Myutron Line Sensor Lens – LSP350

Features:

  • Suitable for Area Sensor Camera 151 Mega Pixel-3.76μm
  • Suitable for Line Sensor Camera such as 16K x 3.5µm and 8K x 7µm
  • Maximum compatible sensor is φ67mm
  • Long working distance, WD100mm
  • Reduce relative illumination and excellent uniformity
  • F and M72 mount are available



Myutron Line Sensor Lens – VIR SW Series

Features:

  • Possible to use from visible ~ 2000nm
  • Design to transmit SWIR
  • Suitable for InGaAs Line sensor camera : 2K (10um – 12.5um ), 1K (25um )
  • Super high resolution, Low distortion, and excellent uniformity of brightness







Contact Us

phone +65 6748 5517

mail info@jm-vistec.com

place 10 Kaki Bukit Ave 1, #07-06, Singapore 417942

GET TO KNOW US
Products
Follow Us
Copyright © 2022 JM Vistec System
