BitFlow has been developing industrial frame grabbers and software for the imaging industry since 1993. We specialize in interfacing to cameras with very high data/frame rates. Our frame grabbers are working in environments with complex triggering and I/O requirements. What’s best is that our frame grabbers are running in applications where every CPU cycle is precious. Frame grabber interfaces are Camera Link, CoaXPress and Differential, software is some of the easiest to use, yet incredibly powerful and reliable and also offering APIs’ to the common image processing software packages and will work with you on your custom software to ensure you are up and running in no time.

MAIN CATEGORY

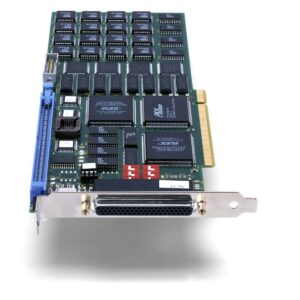

Bitflow Road Runner

Specifications

  • 32-bit/33MHz bus master PCI bus interface board
  • Flow-Thru architecture featuring a Scatter/Gather DMA engine that supports the direct transfer of data to VGA or system memory in real-time with no latency or CPU usage
  • Acquires image sizes up to 512K by 32K pixels (vertical size is unlimited for line scan cameras)
  • LVDS/RS422 (32-bit) area or line scan camera interface supporting a single camera with up to 4 8-bit channels, two synchronized cameras or two multiplexed asynchronous cameras (model dependent)
  • 9 user-programmable I/O signals (4 inputs and 5 outputs)
  • Multiple trigger modes
  • Up to 40MHz acquisition for LVDS and 30MHz for RS-422 (contact us for higher clock rates)
  • On-the-fly reformatting for multi-tap cameras
  • Standard 8-bit in/12-bit out LUT
  • Optional 16-bit in/16-bit out LUT available
  • Cables and configuration files for more than 200 industrial cameras
  • Drivers and DLLs for Windows NT, 2000 and XP
  • Supported by all versions of the BitFlow SDK

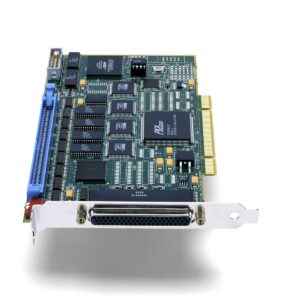

Bitflow R3-DIF

Specifications

  • Half-size, 32-bit/33MHz PCI 2.2 compliant card
  • Supports both 5 V and 3.3 V PCI slots
  • Flow-Thru architecture featuring a Scatter/Gather DMA engine that supports the direct transfer of data to memory in real-time with no latency or CPU usage
  • Acquires image sizes up to 512K by 32K pixels (vertical size is unlimited for line scan cameras)
  • LVDS/RS422 (32-bit) area or line scan camera interface supporting a single camera with up to four 8-bit channels, two synchronized cameras or two multiplexed asynchronous cameras
  • 9 user-programmable I/O signals (4 in/5 out)
  • Multiple trigger modes
  • Up to 40MHz acquisition for LVDS and 30MHz for RS-422 (contact us for higher clock rates)
  • On-the-fly reformatting for multi-tap cameras
  • Optional 16-bit in/16-bit out LUT
  • Cables and configuration files for more than 200 industrial cameras
  • Drivers and DLLs for Windows NT, 2000, XP and Server 2003
  • Supported by BitFlow SDK 3.00 or higher

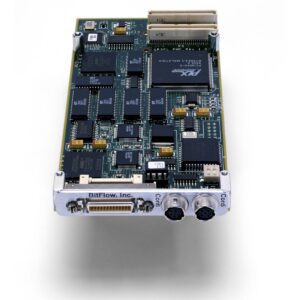

Bitflow R3-CL-PMC

Specifications

  • 32-bit/33MHz PCI 2.2 compliant card
  • Single-size, PCI Mezzanine Card (PMC) interface board supporting both 5 V and 3.3 V PCI configurations
  • Base Camera Link interface for a single area or line scan camera with 1, 2 or 3 channels of up to 24, 12 or 8 bits per channel respectively
  • Flow-Thru architecture featuring a Scatter/Gather DMA engine that supports the direct transfer of data to memory in real-time
  • Acquires image sizes up to 512K pixels by 32K lines (vertical size is unlimited for line scan cameras)
  • Efficient packing of 24-bit pixels
  • On-the-fly reformatting for multi-channel cameras
  • 11 user-programmable I/O signals (4 in/7 out)
  • Up to 50MHz acquisition
  • Optional 16-bit in/16-bit out LUT
  • Serial port communications
  • Version 1.1 compliant serial DLL
  • Drivers and DLLs for Windows NT, 2000, XP and Server 2003
  • Supported by BitFlow SDK 3.00 or higher

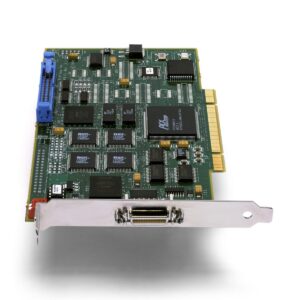

Bitflow R3-CL

Specifications

  • Half-size, 32-bit/33MHz PCI 2.2 compliant card
  • Supports both 5 V and 3.3 V PCI slots
  • Base Camera Link interface for a single area or line scan camera with 1, 2 or 3 channels of up to 24, 12 or 8 bits per channel respectively
  • Flow-Thru architecture featuring a Scatter/Gather DMA engine that supports the direct transfer of data to memory in real-time
  • Acquires image sizes up to 512K pixels by 32K lines (vertical size is unlimited for line scan cameras)
  • Efficient packing of 24-bit pixels
  • On-the-fly reformatting for multi-channel cameras
  • 11 user-programmable I/O signals (4 in/7 out)
  • MDR Camera Link connector
  • Up to 50MHz acquisition
  • Optional 16-bit in/16-bit out LUT
  • Serial port communications
  • Version 1.1 compliant serial DLL
  • Drivers and DLLs for Windows NT, 2000, XP and Server 2003
  • Supported by BitFlow SDK 3.00 or higher

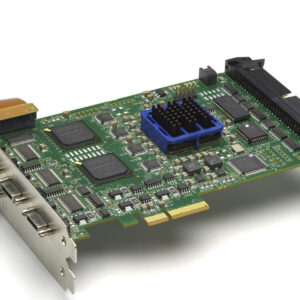

Bitflow Neon-CLQ

Specifications

  • Supports up to four Base CL cameras
  • Provides Power over Camera Link (PoCL) for all cameras
  • Support both PoCL and non-PoCL cameras
  • Provides Safe Power – full protection from all CL power line faults
  • All cameras can be independently synchronized
  • Separate I/O for each camera
  • SDR Camera Link connectors
  • Support simultaneous serial communications to all four camera
  • The Neon-CLQ appears to Windows as four separate frame grabbers
  • Fully backwards compatible with non-PoCL cameras and cables
  • Half-Size x4 PCI Express Board
  • Acquire up to 24 bits at 85 MHz
  • FlowThru technology means that no on-board memory is needed
  • Supports images up to 256K x 128K
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Drivers, utilities, and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Acquire variable length frames with line scan cameras
  • Acquire image sequences well beyond the 4GB barrier
  • RoHS compliant

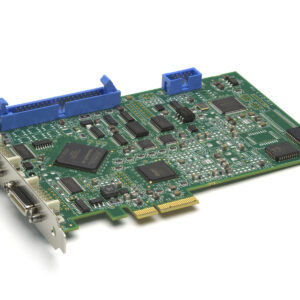

Bitflow Neon-CLD

Specifications

  • Supports two Base CL cameras
  • Provides Power over Camera Link (PoCL) for both cameras
  • Support both PoCL and non-PoCL cameras
  • Provides Safe Power – full protection from all CL power line faults
  • Both cameras can be independent of synchronized
  • Separate I/O for each camera
  • MDR Camera Link connectors
  • The Neon-CLD appears to Windows as two separate frame grabbers
  • Fully backwards compatible with non-PoCL cameras and cables
  • Half-Size x4 PCI Express Board
  • Acquire up to 24 bits at 85 MHz
  • FlowThru technology means that no on-board memory is needed
  • Sustained DMA rates up to 350 MB/S for each camera (700 MB/S total)
  • Supports images up to 256K x 128K
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Acquire variable length frames with line scan cameras
  • Acquire image sequences well beyond the 4GB barrier
  • RoHS compliant

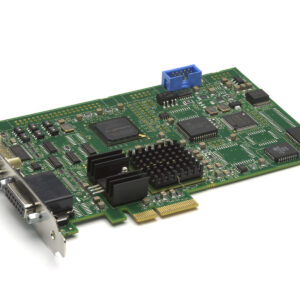

Bitflow Neon-CLB

Specifications

  • Base Camera Link interface
  • Power over Camera Link (PoCL)
  • Supports both PoCL and non-PoCL cameras
  • Provides Safe Power – full protection from all CL power line faults
  • Fully backwards compatible with non-PoCL cameras and cables
  • Half-Size x4 PCI Express Board
  • Acquire up to 24 bits at 85 MHz
  • Both CL and I/O connector on one bracket (only one slot needed)
  • MDR Camera Link connector
  • FlowThru technology means that no on-board memory is needed, even with the fastest cameras
  • DMA at data rates up to 528 MB/S
  • Supports images up to 256K x 128K
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control
  • Sophisticated triggering modes for complex applications
  • Acquire variable length frames with line scan cameras
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • On board timing generator supports high-resolution exposure control
  • Drivers, utilities, and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Acquire image sequences well beyond the 4GB barrier
  • RoHS compliant

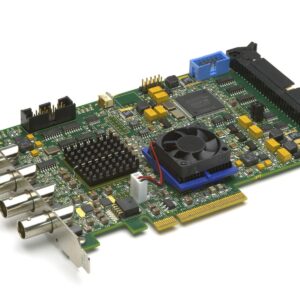

Bitflow Karbon CXP4

Specifications

  • Half-Size x8 PCI Express Board
  • CoaXPress 1.0 compliant
  • Supports one to four CXP cameras
  • Supports multi-link CXP cameras (up to four CXP links)
  • Supports CXP speeds from 1.250 to 6.250 Gb/S
  • Provides power for all cameras (up to 13 Watts per camera)
  • Provides Safe Power, full protection from all power line faults
  • Cameras are Plug and Play with automatic link speed detection
  • Cable lengths of up to 135 meters are supported
  • Cameras can be accurately synchronized, or can be completely unsynchronized
  • PCI Express x8 interface (also works in x16 slots)
  • Separate I/O for each camera
  • Highly deterministic, low latency frame grabber to camera trigger
  • Supports simultaneous serial communications to all cameras
  • Windows “sees” a separate frame grabber for each camera
  • FlowThru technology means no on-board memory is needed
  • Acquire variable length frames from line scan cameras
  • Acquire image sequences well beyond the 4GB barrier
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Drivers, utilities, and examples for Windows XP/Vista/Windows 7
  • Supports both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Full GenICam support for control and capture
  • All models are “half size” PCIe cards
  • RoHS compliant

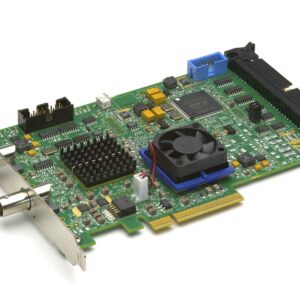

Bitflow Karbon CXP2

Specifications

  • Half-Size x8 PCI Express Board
  • CoaXPress 1.0 compliant
  • Supports one to four CXP cameras
  • Supports multi-link CXP cameras (up to four CXP links)
  • Supports CXP speeds from 1.250 to 6.250 Gb/S
  • Provides power for all cameras (up to 13 Watts per camera)
  • Provides Safe Power, full protection from all power line faults
  • Cameras are Plug and Play with automatic link speed detection
  • Cable lengths of up to 135 meters are supported
  • Cameras can be accurately synchronized, or can be completely unsynchronized
  • PCI Express x8 interface (also works in x16 slots)
  • Separate I/O for each camera
  • Highly deterministic, low latency frame grabber to camera trigger
  • Supports simultaneous serial communications to all cameras
  • Windows “sees” a separate frame grabber for each camera
  • FlowThru technology means no on-board memory is needed
  • Acquire variable length frames from line scan cameras
  • Acquire image sequences well beyond the 4GB barrier
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Drivers, utilities, and examples for Windows XP/Vista/Windows 7
  • Supports both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Full GenICam support for control and capture
  • All models are “half size” PCIe cards
  • RoHS compliant
Bitflow Karbon CL2-D

Specifications

  • Half-Size x8 PCI Express Board
  • Up to 128 bits input at 85 MHz
  • Acquire from four independent Base CL cameras
  • Acquire from two independent Medium/Full CL cameras
  • Acquire from two 10-tap CL cameras
  • FlowThru technology eliminates the need for on-board frame buffers, even with the fastest cameras
  • Hardware Bayer matrix decoding (optional)
  • Multi-tap cameras rasterized on the fly
  • Highly configurable acquisition engine
  • DMA at burst rates up to 2.0 GB/S
  • Supports images up to 256K x 128K
  • No frame rate limit
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • On board timing generator supports high-resolution exposure control
  • Independent trigger and encoder inputs for each camera
  • Independent CCs outputs for each camera
  • General purpose I/O
  • MDR Camera Link connectors
  • Appears to software as four independently programmable frame grabbers
  • Supported by the BitFlow SDK on 32 and 64-bit Windows
  • Acquire image sequences well beyond the 4 GB barrier
  • Drivers, utilities and examples for Windows XP/2003/Vista/Windows 7
  • RoHS Complaint
Bitflow Karbon CL2-F

Specifications

  • x4 PCI Express “short” card
  • Super high quality discrete Analog Front End
  • Three A-to-Ds per VFG (maximum clock rate: 160 MHz)
  • Supports VGA, SVGA, XGA, SXGA, UXGA resolutions and beyond
  • Per-channel programmable Gain/offset
  • Supports single tap and dual tap monochrome cameras
  • Supports RGB cameras (24 bits/pixel)
  • Supports component YPbPr cameras (YUV 4:4:4)
  • Supports asynchronous reset cameras
  • Supports partial scan cameras (high frame rates)
  • Programmable Region of Interest (ROI) via sub-windowing acquisition
  • External hardware or software trigger
  • Acquire at any frame rate
  • Supports cameras up to 16K x 16K
  • Supports interlaced and progressive scan cameras
  • HD/VD/Composite sync signals in/out
  • Supports WEN input signal
  • Strobe output (programmable timing)
  • Provides power to camera (12 V @ 0.5 A)
  • Flowthru technology, no on-board frame buffers, zero latency data access
  • Efficient interrupt driven architecture, no software polling required
  • RoHS compliant
Bitflow Alta AN4

Specifications

  • x4 PCI Express “short” card
  • Super high quality discrete Analog Front End
  • Three A-to-Ds per VFG (maximum clock rate: 160 MHz)
  • Supports VGA, SVGA, XGA, SXGA, UXGA resolutions and beyond
  • Per-channel programmable Gain/offset
  • Supports single tap and dual tap monochrome cameras
  • Supports RGB cameras (24 bits/pixel)
  • Supports component YPbPr cameras (YUV 4:4:4)
  • Supports asynchronous reset cameras
  • Supports partial scan cameras (high frame rates)
  • Programmable Region of Interest (ROI) via sub-windowing acquisition
  • External hardware or software trigger
  • Acquire at any frame rate
  • Supports cameras up to 16K x 16K
  • Supports interlaced and progressive scan cameras
  • HD/VD/Composite sync signals in/out
  • Supports WEN input signal
  • Strobe output (programmable timing)
  • Provides power to camera (12 V @ 0.5 A)
  • Flowthru technology, no on-board frame buffers, zero latency data access
  • Efficient interrupt driven architecture, no software polling required
  • RoHS compliant
Bitflow Alta AN1

Specifications

  • x4 PCI Express “short” card
  • Super high quality discrete Analog Front End
  • Three A-to-Ds per VFG (maximum clock rate: 160 MHz)
  • Supports VGA, SVGA, XGA, SXGA, UXGA resolutions and beyond
  • Per-channel programmable Gain/offset
  • Supports single tap and dual tap monochrome cameras
  • Supports RGB cameras (24 bits/pixel)
  • Supports component YPbPr cameras (YUV 4:4:4)
  • Supports asynchronous reset cameras
  • Supports partial scan cameras (high frame rates)
  • Programmable Region of Interest (ROI) via sub-windowing acquisition
  • External hardware or software trigger
  • Acquire at any frame rate
  • Supports cameras up to 16K x 16K
  • Supports interlaced and progressive scan cameras
  • HD/VD/Composite sync signals in/out
  • Supports WEN input signal
  • Strobe output (programmable timing)
  • Provides power to camera (12 V @ 0.5 A)
  • Flowthru technology, no on-board frame buffers, zero latency data access
  • Efficient interrupt driven architecture, no software polling required
  • RoHS compliant

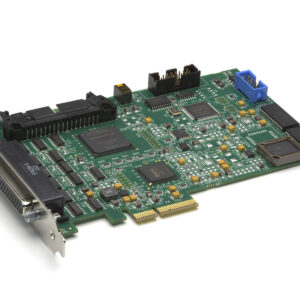

Bitflow Neon DIF

Specifications

  • 32-bit differential interface
  • Accepts LVDS (RS644) and RS-422 signals
  • Programmable clock output
  • Connector pin-out compatible with BitFlow’s Road Runner and R3-Dif families
  • Compatible with cables used with Road Runner and R3-Dif
  • Serial communication support on main connector
  • Half-Size x4 PCI Express Board
  • Acquire up to 32 bits at 85 MHz
  • I/O on internal connector, accessory cables available to bring signals out of PC
  • FlowThru technology means that no on-board memory is needed, even with the fastest cameras
  • DMA at data rates up to 528 MB/S
  • Supports images up to 256K x 128K
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control
  • Sophisticated triggering modes for complex applications
  • Acquire variable length frames with line scan cameras
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • On board timing generator supports high-resolution exposure control
  • Drivers, utilities, and examples for Windows XP/2003/Vista/Windows 7/10
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments
  • Acquire image sequences well beyond the 4GB barrier
  • RoHS compliant

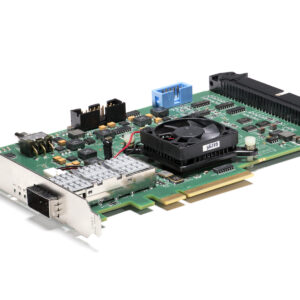

Bitflow Claxon Fiber

Specifications

  • Half-Size x8 PCI Express Gen 3.0 frame grabber
  • CoaXPress 1.1/2.0 compliant
  • Supports one quad link camera, two dual link cameras and four single link cameras
  • Supports CXP speeds from 1.25 to 12.50 Gb/S
  • Fiber connection always runs at 10 Gb/S (which is the equivalent of 12.5 Gb/S CXP)
  • No firmware change needed to go from multi-link cameras to multiple cameras
  • Supports all QFSP+ compatible fiber cable assemblies
  • Supports cables lengths well over a kilometer
  • Cameras are Plug and Play with automatic link speed and camera parameter detection
  • Cameras can be accurately synchronized, or can be completely independent
  • Compatible with all PCIe x8/x16 slots Gen 1.0/2.0/3.0
  • Separate I/O for each camera
  • Highly deterministic, low latency uplink camera trigger
  • Windows “sees” a separate virtual frame grabber for each camera
  • StreamSync technology maximizes data through-put while minimizing image latency
  • Acquire variable length frames from line scan cameras
  • Triggers and encoders for external control of acquisition
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Full GenICam support for camera control and capture
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Supports BitFlow BitBox
  • RoHS compliant
  • REACH compliant

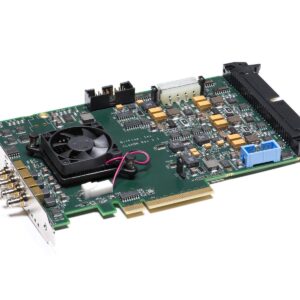

Bitflow Claxon CXP4-V

Specifications

  • Half-Size x8 PCI Express Gen 3.0 frame grabber
  • CoaXPress 1.0/1.1/2.0 compliant
  • Supports one to four CXP-12 cameras
  • Supports multi-link CXP-12 cameras (up to four CXP links)
  • Supports CXP speeds from 3.25 to 12.50 Gb/S
  • Supports simultaneous capture from four CXP-12 cameras
  • Low speed uplink supported on all links
  • Uses micro BNC connectors
  • Provides power for all cameras (up to 13 Watts per link)
  • Provides Safe Power, full protection from all power line faults
  • Cameras are Plug and Play with automatic link speed and camera parameter detection
  • Cable lengths of up to 100 meters are supported
  • Cameras can be accurately synchronized, or can be completely independent
  • Compatible with all PCIe x8/x16 slots Gen 1.0/2.0/3.0
  • Separate I/O for each camera
  • Highly deterministic, low latency frame grabber to camera trigger
  • Supports simultaneous command and control to all cameras
  • Windows “sees” a separate virtual frame grabber for each camera
  • StreamSync technology maximizes data through-put while minimizing image latency
  • Acquire variable length frames from line scan cameras
  • Triggers and encoders for external control of acquisition
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Full GenICam support for camera control and capture
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Supports BitFlow BitBox
  • RoHS compliant
  • REACH compliant

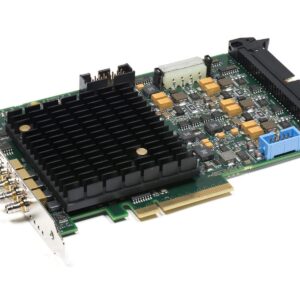

Bitflow Claxon CXP4

Specifications

  • Half-Size x8 PCI Express Gen 3.0 frame grabber
  • CoaXPress 1.0/1.1/2.0 compliant
  • Supports one to four CXP-12 cameras
  • Supports multi-link CXP-12 cameras (up to four CXP links)
  • Supports CXP speeds from 3.25 to 12.50 Gb/S
  • Supports simultaneous capture from four CXP-12 cameras
  • Low speed uplink supported on all links
  • Uses micro BNC connectors
  • Provides power for all cameras (up to 13 Watts per link)
  • Provides Safe Power, full protection from all power line faults
  • Cameras are Plug and Play with automatic link speed and camera parameter detection
  • Cable lengths of up to 100 meters are supported
  • Cameras can be accurately synchronized, or can be completely independent
  • Compatible with all PCIe x8/x16 slots Gen 1.0/2.0/3.0
  • Separate I/O for each camera
  • Highly deterministic, low latency frame grabber to camera trigger
  • Supports simultaneous command and control to all cameras
  • Windows “sees” a separate virtual frame grabber for each camera
  • StreamSync technology maximizes data through-put while minimizing image latency
  • Acquire variable length frames from line scan cameras
  • Triggers and encoders for external control of acquisition
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Full GenICam support for camera control and capture
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • RoHS compliant
  • Supports BitFlow BitBox
Bitflow Claxon CXP1

Specifications

  • Half-Size, low profile x4 PCI Express Gen 2.0 frame grabber
  • Regular or low profile bracket option
  • CoaXPress 1.0/1.1/2.0 compliant
  • Supports one single link CXP-12 camera
  • Supports CXP speeds from 3.25 to 12.50 Gb/S
  • Low speed uplink supported
  • Uses micro BNC connector
  • Provides power for camera (up to 13 Watts)
  • Provides Safe Power, full protection from all power line faults
  • Cameras are Plug and Play with automatic link speed and camera parameter detection
  • Cable lengths of up to 100 meters are supported
  • Compatible with all PCIe x4/x8/x16 slots Gen 1.0/2.0/3.0
  • I/O available for camera
  • Highly deterministic, low latency frame grabber to camera trigger
  • Windows “sees” a virtual frame grabber for the camera
  • StreamSync technology maximizes data through-put while minimizing image latency
  • Acquire variable length frames from line scan cameras
  • Triggers and encoders for external control of acquisition
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Full GenICam support for camera control and capture
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • RoHS compliant
  • Supports BitFlow BitBox
Bitflow Cyton CXP4-V

Specifications

  • Half-Size x8 PCI Gen 3.0 Express Board
  • CoaXPress 1.1 compliant (supports 1.0 and 1.1. cameras)
  • Supports one to four CXP-6 cameras
  • Supports multi-link CXP-6 cameras (up to four CXP links)
  • Supports CXP speeds from 1.250 to 6.250 Gb/S
  • Supports simultaneous capture from four 6.250 Gb/S CXP links
  • Provides one CXP-6 uplink to the camera (bulk data uploads, zero latency triggers)
  • Low speed uplink also supported on all links
  • Uses DIN 1.0/2.3 connectors
  • Uses CXP standard connector spacing
  • Provides power for all cameras (up to 13 Watts per link)
  • Provides Safe Power, full protection from all power line faults
  • Cameras are Plug and Play with automatic link speed detection
  • Cable lengths of up to 40 meters are supported
  • Cameras can be accurately synchronized, or can be completely independent
  • PCI Express x8 Gen 2.0 interface (also works in x16 slots)
  • Compatible with PCI Express Gen 1.0 slots
  • Separate I/O for each camera
  • Highly deterministic, low latency frame grabber to camera trigger
  • Supports simultaneous communications to all cameras
  • Windows “sees” a separate frame grabber for each camera
  • FlowThru technology means no on-board memory is needed
  • StreamSync acquisition engine optimizes synchronization between acquisition and DMA
  • StreamSync buffer manager maximize DMA channel efficiency
  • Acquire variable length frames from line scan cameras
  • Acquire image sequences well beyond the 4GB barrier
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabVIEW, VisionPro, MATLAB, etc.)
  • Full GenICam support for control and capture
  • All models are “half size” PCIe cards
  • Supports BitFlow BitBox
  • RoHS compliant
  • REACH compliant

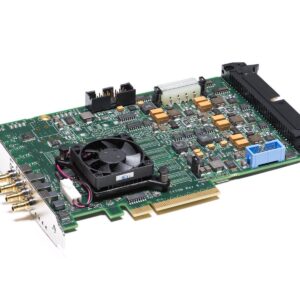

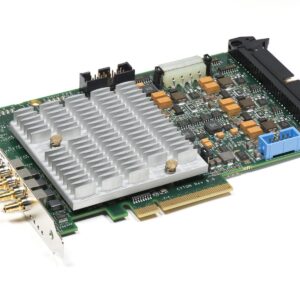

Bitflow Cyton CXP4

Specifications

  • Half-Size x8 PCI Gen 3.0 Express Board
  • CoaXPress 1.1 compliant (supports 1.0 and 1.1. cameras)
  • Supports one to four CXP-6 cameras
  • Supports multi-link CXP-6 cameras (up to four CXP links)
  • Supports CXP speeds from 1.250 to 6.250 Gb/S
  • Supports simultaneous capture from four 6.250 Gb/S CXP links
  • Provides one CXP-6 uplink to the camera (bulk data uploads, zero latency triggers)
  • Low speed uplink also supported on all links
  • Uses DIN 1.0/2.3 connectors
  • Uses CXP standard connector spacing
  • Provides power for all cameras (up to 13 Watts per link)
  • Provides Safe Power, full protection from all power line faults
  • Cameras are Plug and Play with automatic link speed detection
  • Cable lengths of up to 40 meters are supported
  • Cameras can be accurately synchronized, or can be completely independent
  • PCI Express x8 Gen 2.0 interface (also works in x16 slots)
  • Compatible with PCI Express Gen 1.0 slots
  • Separate I/O for each camera
  • Highly deterministic, low latency frame grabber to camera trigger
  • Supports simultaneous communications to all cameras
  • Windows “sees” a separate frame grabber for each camera
  • FlowThru technology means no on-board memory is needed
  • StreamSync acquisition engine optimizes synchronization between acquisition and DMA
  • StreamSync buffer manager maximize DMA channel efficiency
  • Acquire variable length frames from line scan cameras
  • Acquire image sequences well beyond the 4GB barrier
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabVIEW, VisionPro, MATLAB, etc.)
  • Full GenICam support for control and capture
  • All models are “half size” PCIe cards
  • RoHS compliant

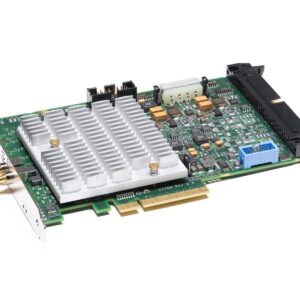

Bitflow Cyton CXP2

Specifications

  • Half-Size x8 PCI Gen 3.0 Express Board
  • CoaXPress 1.1 compliant (supports 1.0 and 1.1. cameras)
  • Supports one or two CXP-6 cameras
  • Supports multi-link CXP-6 cameras (up to two CXP links)
  • Supports CXP speeds from 1.250 to 6.250 Gb/S
  • Supports simultaneous capture from four 6.250 Gb/S CXP links
  • Provides one CXP-6 uplink to the camera (bulk data uploads, zero latency triggers)
  • Low speed uplink also supported on all links
  • Uses DIN 1.0/2.3 connectors
  • Uses CXP standard connector spacing
  • Provides power for all cameras (up to 13 Watts per link)
  • Provides Safe Power, full protection from all power line faults
  • Cameras are Plug and Play with automatic link speed detection
  • Cable lengths of up to 40 meters are supported
  • Cameras can be accurately synchronized, or can be completely independent
  • PCI Express x8 Gen 2.0 interface (also works in x16 slots)
  • Compatible with PCI Express Gen 1.0 slots
  • Separate I/O for each camera
  • Highly deterministic, low latency frame grabber to camera trigger
  • Supports simultaneous communications to all cameras
  • Windows “sees” a separate frame grabber for each camera
  • FlowThru technology means no on-board memory is needed
  • StreamSync acquisition engine optimizes synchronization between acquisition and DMA
  • StreamSync buffer manager maximize DMA channel efficiency
  • Acquire variable length frames from line scan cameras
  • Acquire image sequences well beyond the 4GB barrier
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Full GenICam support for control and capture
  • All models are “half size” PCIe cards
  • RoHS compliant
Bitflow Aon CXP

The Aon-CXP is low cost single link CoaXPress frame grabber. While it looks tiny, it has all the power of its big brother, the Cyton. It supports CXP camera speeds up to 6.25 Gb/S. The technology that Machine Vision components are built on are advancing rapidly in performance while size and costs are plummeting. CoaXPress cameras, which traditionally were power hungry, large, and expensive, are now small, cool, and affordable. Single link cameras are coming out that are 29mm cubes. While this sounds tiny, they can still receive 6.25 Gb/S worth of data over the link, almost twice the real world data rate of the USB3 Vision standard and significantly quicker than the latest GigE Vision data rates. This means you can get 2 MP images at 300 FPS! The Aon CXP has been designed for this low cost/high-performance market.

Specifications

  • Half-Height, Half-Size x2 PCI Gen 2.0 Express Board
  • Half height bracket available
  • CoaXPress 1.1 compliant (supports 1.0 and 1.1. cameras)
  • Supports one CXP-6 camera
  • Supports CXP speeds from 1.250 to 6.250 Gb/S
  • Uses DIN 1.0/2.3 connectors
  • Provides power for camera (up to 13 Watts per link)
  • Provides Safe Power, full protection from all power line faults
  • Cameras are Plug and Play with automatic link speed detection
  • Cable lengths of up to 135 meters are supported
  • PCI Express x2 Gen 2.0 interface
  • Compatible with PCI Express Gen 1.0 slots
  • I/O connector on bracket
  • Compatible with BitBox external I/O module
  • Highly deterministic, low latency frame grabber to camera trigger
  • FlowThru technology means no on-board memory is needed
  • StreamSync acquisition engine optimizes synchronization between acquisition and DMA
  • StreamSync buffer manager maximize DMA channel efficiency
  • Acquire variable length frames from line scan cameras
  • Acquire image sequences well beyond the 4GB barrier
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Full GenICam support for control and capture
  • RoHS compliant
Bitflow Axion 2xE-SIO

Specifications

  • Camera Link 2.0 Compliant
  • Supports two base, medium, full, 80-bit (10-tap) CL cameras
  • Supports CL clocks up to 85 MHz
  • Industry standard SDR Camera Link connectors
  • Supports PoCL and non-PoCL cameras
  • Support dual connector PoCL
  • Provides Safe Power, full protection from all power line faults
  • Cameras can be accurately synchronized, or can be completely independent
  • PCI Express x4 Gen 2.0 interface (also works in x8 and x16 slots)
  • Compatible with PCI Express Gen 1.0 slots
  • Windows “sees” a separate frame grabber for each camera
  • Separate I/O for each camera
  • SDR Camera Link connectors
  • Small I/O located on main bracket
  • Highly deterministic, low latency frame grabber to camera trigger
  • Supports simultaneous communications to all cameras
  • FlowThru technology means no on-board memory is needed
  • StreamSync acquisition engine optimizes synchronization between acquisition and DMA
  • StreamSync buffer manager maximize DMA channel efficiency
  • Acquire variable length frames from line scan cameras
  • Acquire image sequences well beyond the 4GB barrier
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Full GenICam support for control and capture
  • RoHS compliant

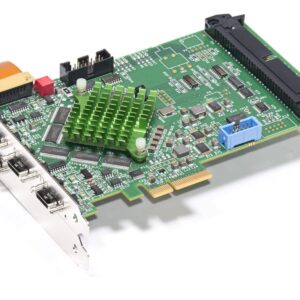

Bitflow Axion 2xE

Specifications

  • Camera Link 2.0 Compliant
  • Supports two base, medium, full, 80-bit (10-tap) CL cameras
  • Supports CL clocks up to 85 MHz
  • Industry standard SDR Camera Link connectors
  • Supports PoCL and non-PoCL cameras
  • Support dual connector PoCL
  • Provides Safe Power, full protection from all power line faults
  • Cameras can be accurately synchronized, or can be completely independent
  • PCI Express x4 Gen 2.0 interface (also works in x8 and x16 slots)
  • Compatible with PCI Express Gen 1.0 slots
  • Windows “sees” a separate frame grabber for each camera
  • Separate I/O for each camera
  • SDR Camera Link connectors
  • Highly deterministic, low latency frame grabber to camera trigger
  • Supports simultaneous communications to all cameras
  • FlowThru technology means no on-board memory is needed
  • StreamSync acquisition engine optimizes synchronization between acquisition and DMA
  • StreamSync buffer manager maximize DMA channel efficiency
  • Acquire variable length frames from line scan cameras
  • Acquire image sequences well beyond the 4GB barrier
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Full GenICam support for control and capture
  • RoHS compliant
Bitflow Axion 1xE-DS9T

Specifications

  • Camera Link 2.0 Compliant
  • Supports one base, medium, full, 80-bit (10-tap) CL camera
  • Supports CL clocks up to 85 MHz
  • Industry standard SDR Camera Link connectors
  • Supports PoCL and non-PoCL cameras
  • Support dual connector PoCL
  • Provides Safe Power, full protection from all power line faults
  • PCI Express x4 Gen 2.0 interface (also works in x8 and x16 slots)
  • Compatible with PCI Express Gen 1.0 slots
  • SDR Camera Link connectors
  • On bracket nine pin I/O connector
  • Highly deterministic, low latency frame grabber to camera trigger
  • Supports simultaneous communications to all cameras
  • FlowThru technology means no on-board memory is needed
  • StreamSync acquisition engine optimizes synchronization between acquisition and DMA
  • StreamSync buffer manager maximize DMA channel efficiency
  • Acquire variable length frames from line scan cameras
  • Acquire image sequences well beyond the 4GB barrier
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Full GenICam support for control and capture
  • RoHS compliant
Bitflow Axion 1xE

Specifications

  • Camera Link 2.0 Compliant
  • Supports one base, medium, full, 80-bit (10-tap) CL camera
  • Supports CL clocks up to 85 MHz
  • Industry standard SDR Camera Link connectors
  • Supports PoCL and non-PoCL cameras
  • Support dual connector PoCL
  • Provides Safe Power, full protection from all power line faults
  • PCI Express x4 Gen 2.0 interface (also works in x8 and x16 slots)
  • Compatible with PCI Express Gen 1.0 slots
  • SDR Camera Link connectors
  • Highly deterministic, low latency frame grabber to camera trigger
  • Supports simultaneous communications to all cameras
  • FlowThru technology means no on-board memory is needed
  • StreamSync acquisition engine optimizes synchronization between acquisition and DMA
  • StreamSync buffer manager maximize DMA channel efficiency
  • Acquire variable length frames from line scan cameras
  • Acquire image sequences well beyond the 4GB barrier
  • No frame rate limit
  • Triggers and encoders for external control of acquisition
  • Programmable signal generator for camera control (independent for each camera)
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabView, VisionPro, MATLAB, etc.)
  • Full GenICam support for control and capture
  • RoHS compliant
Bitflow Axion 4xB

The Axion-CL is the most powerful CL frame grabber BitFlow has ever manufactured. A natural addition to this family was obvious…a CL Base version. The Axion xB series will be replacing the Neon series of Camera Link frame grabbers.

Hardware Specifications

  • Base Camera Link interface
  • All tap Camera Link tap formats are supported
  • Supports up to four Base CL cameras
  • Provides Power over Camera Link (PoCL) for all cameras
  • Support both PoCL and non-PoCL cameras
  • Provides Safe Power – full protection from all CL power line faults
  • Fully backwards compatible with non-PoCL cameras and cables
  • Half-Size x4 PCI Express Board
  • Acquire up to 24 bits at 85 MHz
  • Separate I/O for each camera
  • SDR Camera Link connectors
  • All cameras can be independent or synchronized
  • StreamSync technology means that no on-board memory is needed, even with the fastest cameras
  • DMA at data rates up to 1.8 GB/S
  • Supports images up to 32K pixels x 16M lines
  • No frame rate limit (tested to over 250K FPS)
  • The Axion 4xB appears to Windows as four separate frame grabbers
  • Triggers and encoders for external control of acquisition
  • Sophisticated triggering modes for complex applications
  • Acquire, trigger controlled, variable length frames with line scan cameras
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Two general purpose, on-board timing generators (exposure control, strobe, solenoids, etc.)
  • RoHS compliant

Software Specifications

  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Camera Link Specification compliant serial port support
  • Fully supports GenICam based CL cameras (CL Protocol)
  • GenTL producer supplied for working the GenICam based applications
  • GenICam based camera control application, Ximilon, available for free
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabVIEW, VisionPro, MATLAB, etc.)
  • Acquire image sequences well beyond the 4GB barrier
Bitflow Axion 2xB

The Axion-CL is the most powerful CL frame grabber BitFlow has ever manufactured. A natural addition to this family was obvious…a CL Base version. The Axion xB series will be replacing the Neon series of Camera Link frame grabbers.

Hardware Specifications

  • Base Camera Link interface
  • All tap Camera Link tap formats are supported
  • Supports two Base CL cameras
  • Supports Power over Camera Link (PoCL) for both cameras
  • Support both PoCL and non-PoCL cameras
  • Provides Safe Power – full protection from all CL power line faults
  • Fully backwards compatible with non-PoCL cameras and cables
  • Half-Size x4 PCI Express Board
  • Acquire up to 24 bits at 85 MHz
  • Separate I/O for each camera
  • MDR Camera Link connectors
  • Both cameras can be independent or synchronized
  • StreamSync technology means that no on-board memory is needed, even with the fastest cameras
  • DMA at data rates up to 1.8 GB/S
  • Supports images up to 32K pixels x 16M lines
  • No frame rate limit (tested to over 250K FPS)
  • The Axion 2xB appears to Windows as two separate frame grabbers
  • Triggers and encoders for external control of acquisition
  • Sophisticated triggering modes for complex applications
  • Acquire, trigger controlled, variable length frames with line scan cameras
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Two general purpose, on-board timing generators (exposure control, strobe, solenoids, etc.)
  • RoHS compliant

Software Specifications

  • Drivers, utilities and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Camera Link Specification compliant serial port support
  • Fully supports GenICam based CL cameras (CL Protocol)
  • GenTL producer supplied for working the GenICam based applications
  • GenICam based camera control application, Ximilon, available for free
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabVIEW, VisionPro, MATLAB, etc.)
  • Acquire image sequences well beyond the 4GB barrier

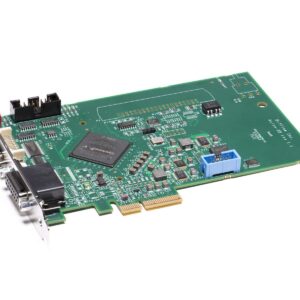

Bitflow Axion 1xB

The Axion-CL is the most powerful CL frame grabber BitFlow has ever manufactured. A natural addition to this family was obvious…a CL Base version. The Axion xB series will be replacing the Neon series of Camera Link frame grabbers.

Hardware Specifications

  • Base Camera Link interface
  • All tap Camera Link tap formats are supported
  • Supports a single Base CL camera
  • Supports Power over Camera Link (PoCL)
  • Supports both PoCL and non-PoCL cameras
  • Provides Safe Power – full protection from all CL power line faults
  • Fully backwards compatible with non-PoCL cameras and cables
  • Half-Size x4 PCI Express Board
  • Acquire up to 24 bits at 85 MHz
  • Both CL and I/O connector on one bracket (only one slot needed)
  • MDR Camera Link connector
  • StreamSync technology means that no on-board memory is needed, even with the fastest cameras
  • DMA at data rates up to 1.8 GB/S
  • Supports images up to 32K pixels x 16M lines
  • No frame rate limit (tested to over 250K FPS)
  • Triggers and encoders for external control of acquisition
  • Sophisticated triggering modes for complex applications
  • Acquire, trigger controlled, variable length frames with line scan cameras
  • Quadrature encoder support including sophisticated triggering schemes
  • Encoder divider/multiplier
  • Two general purpose, on-board timing generators (exposure control, strobe, solenoids, etc.)
  • RoHS compliant

Software Specifications

  • Drivers, utilities, and examples for Windows and Linux
  • Supported on both 32-bit and 64-bit platforms
  • Camera Link Specification compliant serial port support
  • Fully supports GenICam based CL cameras (CL Protocol)
  • GenTL producer supplied for working the GenICam based applications
  • GenICam based camera control application, Ximilon, available for free
  • Drivers for most 3rd party processing environments (e.g. HALCON, LabVIEW, VisionPro, MATLAB, etc.)
  • Acquire image sequences well beyond the 4GB barrier
Contact Us

phone +65 6748 5517

mail info@jm-vistec.com

place 10 Kaki Bukit Ave 1, #07-06, Singapore 417942

GET TO KNOW US
Products
Follow Us
Copyright © 2022 JM Vistec System
