Showing all 16 results

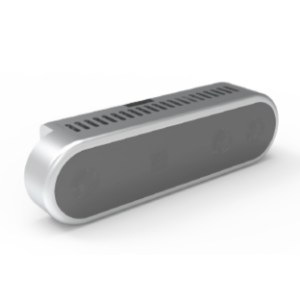

JMGV_VD100 active structured light binocular camera is a stereo vision camera deeply customized and developed according to the needs of robots and industrial stereo vision application scenarios. The industry-leading 940nm infrared structured light speckle projector is used to supplement light and texture, and OV9282 global shutter sensor has the highest tolerance in the industry for motion speed and environment. It can be widely used in industrial sorting, AGV and service robot obstacle avoidance, high precision visual positioning and other scenarios.

Product Features:
• 640×400@30fps, high resolution and frame rate, widely used in various scenarios.
• Industry leading wide FOV􀉿92.5°x80.5°x55.2° (DxHxV) for wider sensing range.
• 940nm infrared structured light projector has extremely high environmental tolerance and
can be used indoor and outdoor, dark and light environments. Compared with structured
light and TOF solutions, the material of detected object has a wider applicable range.
• Adopts a global shutter sensor, which can be adapted to high speed and dark light
environments.
• Dedicated ASIC binocular depth calculation chip, which consumes low power and does not
occupy the computing power of the host computer;
• Type C USB 2.0 interface with locking function, high reliability and good applicability.
• Ultra-low noise, very suitable for obstacle avoidance applications
• Mature Linux and ROS 2 development SDK;

Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.

Fast acquisition | High Flexibility | Industrial suitability | Easy integration

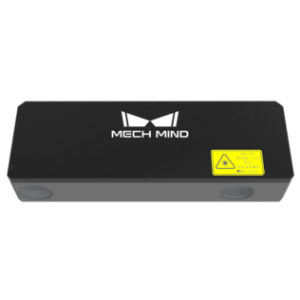

Mech-Eye Log M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.

Specifications:

Optimal Working Distance: 1200–3500 mm

Near FOV: 970 × 1160 @ 1.2 m

Far FOV: 2830 × 3320 @ 3.5 m

Resolution: 2048 × 1536

Megapixels: 3 MP

Z Repeatability: 1.0 mm @ 3 m

VDI/VDE Accuracy: 3.0 mm @ 3m

Typical Capture Time: 0.7–1.1 s

Baseline: About 400 mm

Dimensions: About 481 mm × 98 mm × 145 mm

Weight: About 4.3 kg

Operating Temperature: 0-45 ℃

Communication Interface: Gigabit Ethernet

Input: 24V DC,3.75 A

Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL

Light Source: Blue LED (459 nm, RG2)

IP Rating: IP65

Cooling: Passive

Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.

Fast acquisition | High Flexibility | Industrial suitability | Easy integration

Mech-Eye Log M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.

Specifications:

Optimal Working Distance: 800–2000 mm

Near FOV: 520 × 390 @ 0.8 m

Far FOV: 1410 × 960 @ 2.0 m

Resolution: 1280 x 1024

Megapixels: 1.3 MP

Z Repeatability: 0.3 mm @ 2 m

VDI/VDE Accuracy: 0.3 mm @ 2 m

Typical Capture Time: 0.3–0.5 s

Baseline: About 280 mm

Dimensions: About 387 mm × 72 mm × 130 mm

Weight: About 2.4 kg

Operating Temperature: 0-45 ℃

Communication Interface: Gigabit Ethernet

Input: 24V DC, 3.75 A

Safety & EMC: CE/FCC/VCCI

Light Source: Blue LED (459 nm, RG2)

IP Rating: IP65

Cooling: Passive

Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.

Fast acquisition | High Flexibility | Industrial suitability | Easy integration

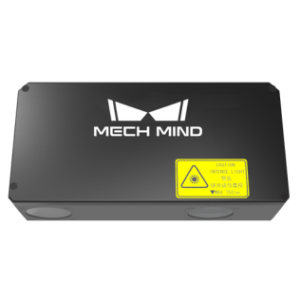

Mech-Eye Log S can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.

Specifications:

Optimal Working Distance: 500–1000 mm

Near FOV: 360 × 250 @ 0.5 m

Far FOV: 710 × 490 @ 1.0 m

Resolution: 1280 x 1024

Megapixels: 1.3 MP

Z Repeatability: 0.1 mm @ 1 m

VDI/VDE Accuracy: 0.2 mm @ 1 m

Typical Capture Time: 0.3–0.5 s

Baseline: About 150 mm

Dimensions: About 270 mm × 72 mm × 130 mm

Weight: About 2.2 kg

Operating Temperature: 0-45 ℃

Communication Interface: Gigabit Ethernet

Input: 24V DC, 3.75 A

Safety & EMC: CE/FCC/VCCI

Light Source: Blue LED (459 nm, RG2)

IP Rating: IP65

Cooling: Passive

Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.

Fast acquisition | High Flexibility | Industrial suitability | Easy integration

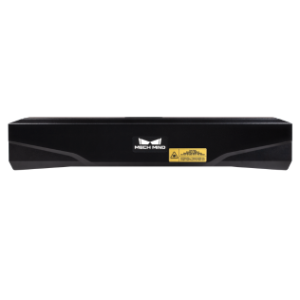

Mech-Eye LSR L can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.

Specifications:

Optimal Working Distance: 1200–3000 mm

Near FOV: 1200 × 1000 @ 1.2 m

Far FOV: 3000 × 2400 @ 3.0 m

Resolution: Depth Map:2048 × 1536, RGB:4000 x 3000 OR 2000 x 1500

Megapixels: 3.0 MP

Z Repeatability: 0.5 mm @ 3 m

VDI/VDE Accuracy: 1.0 mm @ 3 m

Typical Capture Time: 0.5–0.9 s

Baseline: About 380 mm

Dimensions: About 459 mm × 77 mm × 86 mm

Weight: About 2.9 kg

Operating Temperature: -10–45 ℃

Communication Interface: Gigabit Ethernet

Input: 24V DC,1.5 A

Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL

Light Source: Red laser (638 nm, Class 2)

IP Rating: IP65

Cooling: Passive

Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.

Fast acquisition | High Flexibility | Industrial suitability | Easy integration

Mech-Eye LSR L can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.

Specifications:

Optimal Working Distance: 500–1500 mm

Near FOV: 480 × 360 @ 0.5 m

Far FOV: 1500 × 1200 @ 1.5 m

Resolution: Depth Map:2048 × 1536, RGB:4000 x 3000 OR 2000 x 1500

Megapixels: 3.0 MP

Z Repeatability: 0.2 mm @ 1.5 m

VDI/VDE Accuracy: 1.0 mm @ 1.5 m

Typical Capture Time: 0.5–0.9 s

Baseline: About 140 mm

Dimensions: About  222 mm × 77 mm × 126 mm

Weight: About 1.8 kg

Operating Temperature: -10–45 ℃

Communication Interface: Gigabit Ethernet

Input: 24V DC,3.75 A

Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL

Light Source: Red laser (638 nm, Class 2)

IP Rating: IP65

Cooling: Passive

Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.

Fast acquisition | High Flexibility | Industrial suitability | Easy integration

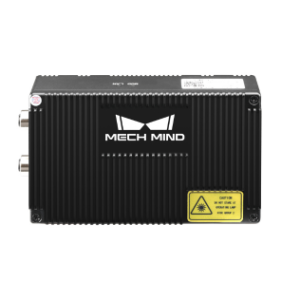

Mech-Eye Nano can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.

Specifications:

Optimal Working Distance: 300-600 mm

Near FOV: 220 x 150 mm @ 0.3 m

Far FOV: 440 x 300 @ 0.6 m

Resolution: 1280 x 1024

Megapixels: 1.3 MP

Z Repeatability: 0.1 mm @ 0.5 m

VDI/VDE Accuracy: 0.1 mm @ 0.5 m

Typical Capture Time: 0.6-1.1 s

Baseline: About 68 mm

Dimensions: About 145 mm × 51 mm × 85 mm

Weight: About 0.7 kg

Operating Temperature: 0-45 ℃

Communication Interface: Gigabit Ethernet

Input: 24V DC,1.5 A

Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL

Light Source: Blue LED (459 nm, RG2)

IP Rating: IP65

Cooling: Passive

Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.

Fast acquisition | High Flexibility | Industrial suitability | Easy integration

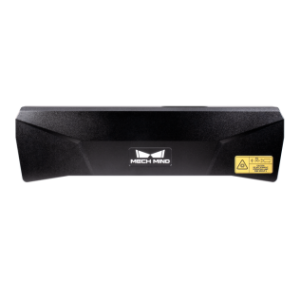

Mech-Eye Pro M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.

Specifications:

Optimal Working Distance: 1000–2000 mm

Near FOV: 800 × 450 @ 1.0 m

Far FOV: 1500 × 890 @ 2.0 m

Resolution: 1920 × 1200

Megapixels: 2.3 MP

Z Repeatability: 0.2 mm @ 2 m

VDI/VDE Accuracy: 0.2 mm @ 2 m

Typical Capture Time: 0.3-0.6 s

Baseline: About 270 mm

Dimensions: About 353 mm × 57 mm × 100 mm

Weight: About 1.9 kg

Operating Temperature: 0-45 ℃

Communication Interface: Gigabit Ethernet

Input: 24V DC, 3.75 A

Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL

Light Source: Blue LED (459 nm, RG2)

IP Rating: IP65

Cooling: Passive

Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.

Fast acquisition | High Flexibility | Industrial suitability | Easy integration

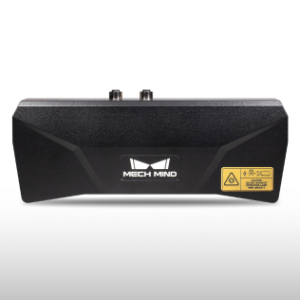

Mech-Eye Pro S can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.

Specifications:

Optimal Working Distance: 500–1000 mm

Near FOV: 370 × 240 @ 0.5 m

Far FOV: 800 × 450 @ 1.0 m

Resolution: 1920 × 1200

Megapixels: 2.3 MP

Z Repeatability: 0.05 mm @ 1 m

VDI/VDE Accuracy: 0.1 mm @ 1 m

Typical Capture Time: 0.3–0.6 s

Baseline: About 180 mm

Dimensions: About 265 mm × 57 mm × 100 mm

Weight: About 1.6 kg

Operating Temperature: 0-45 ℃

Communication Interface: Gigabit Ethernet

Input: 24V DC, 3.75 A

Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL

Light Source: Blue LED (459 nm, RG2)

IP Rating: IP65

Cooling: Passive

Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.

Fast acquisition | High Flexibility | Industrial suitability | Easy integration

Mech-Eye Log M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.

Specifications:

Optimal Working Distance: 300–600 mm

Near FOV: 220 × 160 @ 0.3 m

Far FOV: 430 × 320 @ 0.6 m

Resolution: 1280 x 1024

Megapixels: 1.3 MP

Z Repeatability: 0.1 mm @ 0.5 m

VDI/VDE Accuracy: 0.1 mm @ 0.5 m

Typical Capture Time: 0.7–1.1 s

Baseline: About 93 mm

Dimensions: About 160 mm × 52 mm × 87 mm

Weight: About 0.8 kg

Operating Temperature: 0-45 ℃

Communication Interface: Gigabit Ethernet

Input: 24V DC,1.5 A

Safety & EMC: CE/FCC/VCCI

Light Source: Blue LED (459 nm, RG2)

IP Rating: IP65

Cooling: Passive

Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.

Fast acquisition | High Flexibility | Industrial suitability | Easy integration

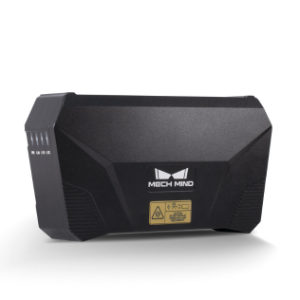

Mech-Eye Log M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.

Specifications:

Optimal Working Distance: 300 ± 20 mm

Near FOV: 135 × 90 @ 280 mm

Far FOV: 150 × 100 @ 320 mm

Resolution: 2048 × 1536

Megapixels: 3 MP

Z Repeatability: 2.6 μm @ 0.3m **Region : 0.09 μm @ 0.3 m

VDI/VDE Accuracy: 0.03 mm @ 0.3 m

Typical Capture Time: 0.6–0.9 s

Baseline: About 80 mm

Dimensions: About 260 mm × 65 mm × 142 mm

Weight: About 1.9 kg

Operating Temperature: 0-45 ℃

Communication Interface: Gigabit Ethernet

Input: 24V DC,3.75 A

Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL

Light Source: Blue LED (459 nm, RG2)

IP Rating: IP65

Cooling: Passive

Features
-Enhanced accuracy at greater depths
-Single/multi camera use capabilities
-Simple setup
-GigE interface (USB optional)
-Easily integrates with Win/Linux/Android/ROS SDKs
-Low power consumption

Applications:
-FM811-IX-E1: industrial measurement and commercial applications of different sizes objects, bin picking and unstack industrial applications



Features
-Single/multi camera use capabilities
-Simple setup
-GigE interface
-Easily integrates with Win/Linux/Android/ROS SDKs
-Low power consumption

Applications:
-FS820 : industrial sorting and grabbing, industrial measurement, and commercial applications
-FM851: industrial sorting, grabbing, industrial measurement and commercial applications of large-sized objects



Features
-Enhanced accuracy at greater depths
-Single/multi camera use capabilities
-Simple setup
-GigE interface
-Easily integrates with Win/Linux/Android/ROS SDKs
-Low power consumption

Applications:
-PM801/802: bin picking and unstack industrial applications
-PS801: industrial sorting, grabbing, industrial measurement and commercial applications



Features
-Outdoor RGB-D and indoor applications
-Frame rates up to 30 FPS
-Single/multi camera use capabilities
-Simple setup
-GigE interface
-Easily integrates with Win/Linux/Android/ROS SDKs
-Low power consumption

Applications:
3D people counting for public settings, including supermarkets, elevators, and transport

High-fidelity 3D profile sensors

Matrox® AltiZ1 is a series of high-fidelity 3D profile sensors. Each sensor features a dual-camera single-laser design that greatly lessens the scanning gaps often encountered at critical surface junctures because of optical occlusions. Unique algorithms running inside the sensor automatically generate various types of reliable 3D data—individual profiles, depth maps, or point clouds—obtained by smartly combining or selecting the pixel data from the two integrated image sensors, which is automatically sampled for a constant horizontal resolution.
