Product Catalog
Showing 1–16 of 119 results

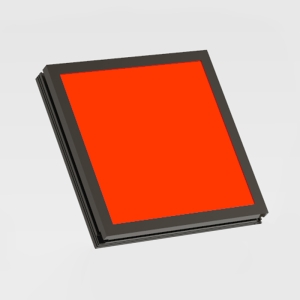

Application areas: Measurement of various dimensions, shape inspection of electronic components and ICs, inspection of film stains, inspection of scratches on transparent objects, etc.
Advantages
• High-brightness LED array arrangement to achieve high-brightness planar lighting
• Large-area uniform light emission, used for perspective contour imaging

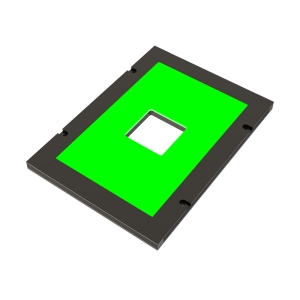

Application areas: Large-format product positioning, applications requiring high uniformity, various dimensional measurements, transmission-based presence/absence detection, etc.
Advantages
• Ultra-thin design; opening size, shape, dimensions, and placement can be customized.
• Achieve large-format uniform lighting
High-precision parallel backlight for measuring large-area product dimensions.
Application areas: Precision parts dimensional measurement, edge damage detection, scratch detection on transparent object surfaces, internal foreign object detection, high liquid level detection, liquid foreign object detection, etc.
Advantages

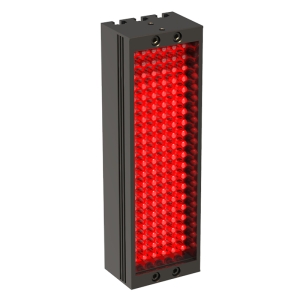

Application areas: Product surface defect inspection, image scanning, LCD panel defect inspection, connector pin flatness inspection, damage and appearance inspection of slender objects, damage inspection of metals with hairline cracks, etc.
Advantages
• Flexible design of illumination width, length, and size
• Wavelength and color temperature are selectable, and different color combinations are also possible.
• Easy to install and compact design
• The illumination angle can be adjusted arbitrarily according to usage requirements.
• You can choose a diffuser plate to increase the uniformity of the light source

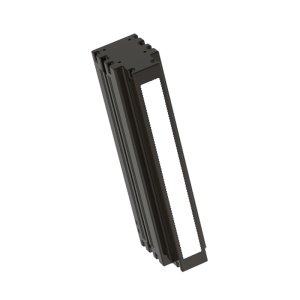

Application areas: PCB board circuit inspection, LCD and TP screen surface scratch and stain detection, lithium battery material surface defect detection and dimensional inspection, online continuous printing surface defect detection of paper and film and other printed materials.
Advantages
• Employs a new type of high-grade optical cylindrical perspective focusing light…
• Standard molds are used for molding to ensure structural stability.
• It has good linear uniformity and consistency
Application areas: Inspection of electronic components on substrates, visual inspection of secondary battery separators, damage and dent detection of touch panels, etc.
Advantages
Application areas: Inspection of reflective object surfaces, inspection of surface unevenness and defects, appearance inspection of food and pharmaceuticals, inspection of cigarette boxes and packaging printing, etc.
Advantages
The 4WMD is a four-channel external driver developed for multi-wavelength lights. The 4WMD permits up to four individual wavelengths to be controlled independently of each other. This external driver includes Multi-Drive™, which allows a single channel to drive LEDs in continuous operation or OverDrive™ strobe mode separate from the other channels. For quick and easy adjustments, each output channel has its own tuning control located on the front of the driver. Wavelength tuning can be controlled for continuous operation using the analog input channels as well.
The 4WMD can be used with any combination of up to four LED wavelengths, including white, red, blue, green, UV, IR, and SWIR. Additional wavelength options are available.
The 4ZMD is an external driver with four individual built-in channels, allowing control of up to four zones within a single light or four individual lights with no built-in drivers. Users can set different intensity levels for each zone channel because they act independently of each other. Also, depending on the channel’s configuration, intensity controls can adjust the intensity for either continuous operation or OverDrive™ strobe mode.
When connected to the LED Light Manager (LLM), each individual channel can be set to continuous operation, off, any intensity level in between, and even OverDrive™ strobe mode.
The AL Area Light Series of spot lights is designed for maximizing light output. The AL series works in continuous operation mode or can operate with either an NPN or PNP trigger signal when using on/off input mode. The AL Area Light runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using the side extrusion and back plate. The 45 mm extrusion makes mounting the light easy when using drop-in T-nuts. The AL Area Light has a built-in driver. No external driver is required.
The DADL75 Series was designed as a multi-color inspection light with built-in individual on-axis and off-axis intensity control. Its exceptional uniformity and an intense output design make the DADL75 Series a perfect lighting solution for applications that require variable intensities with multiple color options or any product inspection process involving a highly reflective finish. Easily tune colors using the DADL Controller (sold separately).
The DDL-100 is a diffuse dome light with a 75 mm viewing area designed for reading barcode, imperfections/rounded/highly reflective products or for inspecting products with an even, uniform, and repeatable light intensity. The DDL-100 has been designed with simplicity and functionality in mind. The DDL-100 features Multi-Drive™, which allows the user to operate the light in continuous operation or OverDrive™ strobe mode, depending on the wiring method. NPN and PNP trigger signal input and a built-in 1-10VDC analog intensity control allows for maximum versatility. The industry-standard 5-pin M12 connector makes for easy installation
The DDL-150 is a diffuse dome light with a 140 mm viewing area designed for reading barcode, imperfections/rounded/highly reflective products or for inspecting products with an even, uniform, and repeatable light intensity. The DDL-150 has been designed with simplicity and functionality in mind. The DDL-150 features Multi-Drive™, which allows the user to operate the light in continuous operation or OverDrive™ strobe mode, depending on the wiring method. NPN and PNP trigger signal input and a built-in 1-10VDC analog intensity control allows for maximum versatility. The industry-standard 5-pin M12 connector makes for easy installation.
The DDL-250 is a diffuse dome light with a 235 mm viewing area designed for reading barcode, imperfections/rounded/highly reflective products or for inspecting products with an even, uniform, and repeatable light intensity. The DDL-250 has been designed with simplicity and functionality in mind. The DDL-250 features Multi-Drive™, which allows the user to operate the light in continuous operation or OverDrive™ strobe mode, depending on the wiring method. NPN and PNP trigger signal input and a built-in 1-10VDC analog intensity control allows for maximum versatility. The industry-standard 5-pin M12 connector makes for easy installation
The DFL-12 is an adjustable Dark Field Light and comes with four L300s, which allows for easy mounting using the extrusion frame. Quickly rotate any light to provide the optimal lighting pattern for a dark field application. The DFL-12 features a 360° illumination field. Each side of the DFL-12 is 300 mm in length.
The DFL-24 is an adjustable Dark Field Light and comes with eight L300s, which allows for easy mounting using the extrusion frame. Quickly rotate any light to provide the optimal lighting pattern for a dark field application. The DFL-24 features a 360° illumination field. Each side of the DFL-12 is 600 mm in length.
