Founded in 1913, Schneider-Kreuznach sets the standard for machine vision optics. From compact C-Mount lenses to large format and telecentric systems, their portfolio covers every industrial imaging challenge, including optics trusted by NASA for the Artemis II mission

Schneider Compact

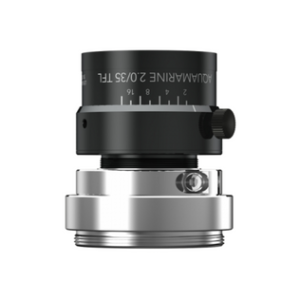

Aquamarine

Aquamarine’s Key Features:

• 1.3″ (24 mm) max. sensor size

• C-Mount lens and TFL-Mount lens available

• 2 focal lengths: 28 mm and 35 mm

• Initial aperture: F2

• Ruggedized version for 28 mm lens

• Motorized iris available for 28 mm lens

Focal Length28-35mm

Max Sensor1.3"

ApertureF2.0

Schneider Compact
Citrine

Citrine’s Key Features:

2/3″ (11 mm) max. sensor size
C-Mount lens
6 focal lengths: 4.8 mm – 35 mm
Initial apertures: F1.4 – F1.9
Ruggedized and stabilized versions available
Motorized iris available

Focal Length4.8-35mm

Max Sensor2/3"

ApertureF1.4-1.9

Schneider Compact

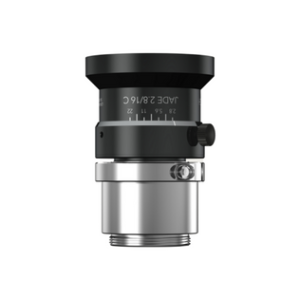

Jade

Jade’s Key Features:

• 1.2″ (19.3 mm) max. sensor size

• Very high resolution down to 2.4µ pixel size

• Low chief ray angle suitable for all SONY Pregius™ generations

• C-Mount lens

• 5 focal lengths: 12 mm – 50 mm

• Initial aperture: F2.8

Focal Length12-50mm

Max Sensor1.2"

ApertureF2.8

Schneider Compact

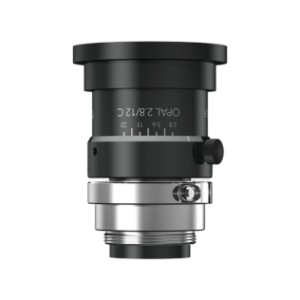

Opal

Opal’s Key Features:

• 1.1″ (17.6 mm) max. sensor size

• Very high resolution down to 2.4µ pixel size

• Low chief ray angle suits all SONY Pregius™ generations

• C-Mount lens

• Focal length: 12 mm

• Initial aperture: F2.8

Focal Length12mm

Max Sensor1.1"

ApertureF2.8

Schneider Compact
Topaz

Topaz’s Key Features:

• Optimized for long working distances up to infinity

• Low chief ray angle suits all SONY Pregius™ generations

• 1.2″ (19.3 mm) max. sensor size (TOPAZ 2.4/6.5: 1.1″)

• C-Mount lens

• 6 focal lengths available: 6.5 mm – 50 mm

• Initial aperture: F2 – F2.8

• Motorized iris available

Focal Length6.5-50mm

Max Sensor1.2"

ApertureF2.0-2.8

Schneider Compact

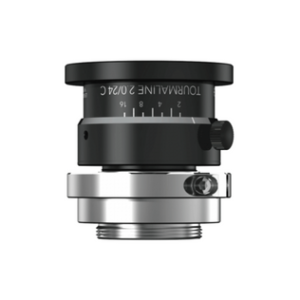

Tourmaline

Tourmaline’s Key Features:

• 1.3″ (24 mm) max. sensor size

• Resolution down to 2.4µ pixel size

• Low chief ray angle suits all SONY Pregius™ generations

• C-Mount lens and TFL-Mount lens available

• 8 focal lengths: 16 mm – 50 mm

• Initial aperture: F2 – F2.8

• Ruggedized and motorized iris for selected focal lengths

Focal Length16-50mm

Max Sensor1.3"

ApertureF2.0-2.8

Schneider Compact

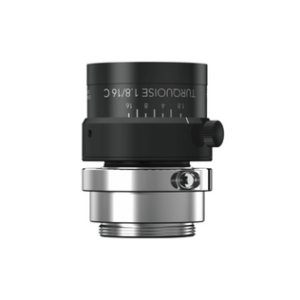

Turquoise

Turquoise’s Key Features:

1″ (16 mm) max. sensor size
C-Mount lens
3 focal lengths: 10 mm, 16 mm and 70 mm
Initial aperture: F1.8 – F2.2
Ruggedized and motorized iris available

Focal Length10-70mm

Max Sensor1"

ApertureF1.8-2.2

Schneider Fast

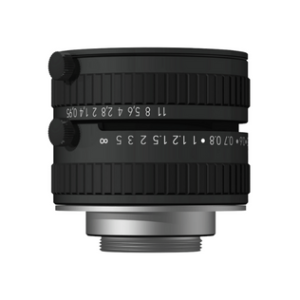

Onyx

Onyx’s Key Features:

Extremely fast lens with F0.95
1″ (16 mm) max. sensor size
C-Mount lens
Focal length: 25 mm

Focal Length25mm

Max Sensor1"

ApertureF0.95

Schneider Large Format

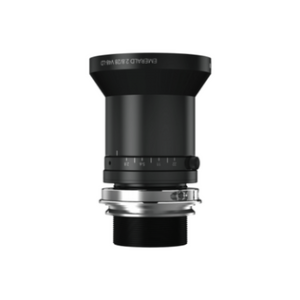

Emerald

Emerald’s Key Features:

Image circle: 43.2 mm – 90 mm
5 focal lengths: 28 mm – 100 mm
F-Mount lens and V48-Mount lens available
Covering a wide working distance range
Initial apertures: F2.2 – F5.6

Focal Length28-100mm

Image Circle43.2-90mm

ApertureF2.2-5.6

Schneider Large Format

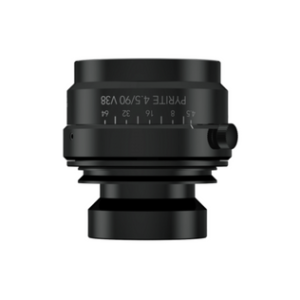

Pyrite

Pyrite’s Key Features:

Image circle: 30 mm – 100 mm
11 focal lengths: 28 mm – 120 mm
Covering a wide working distance range
Lenses for specific magnifications available
Very low distortion and high resolution
V38-Mount, compatible to the V38 mounting system
Initial apertures: F2.8 – F5.6

Focal Length28-120mm

Image Circle30-100mm

ApertureF2.8-5.6

Schneider Large Formmat

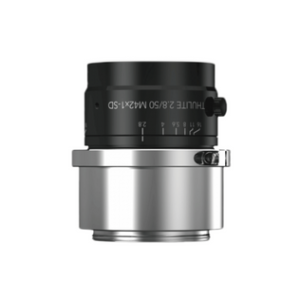

Thulite

Thulite’s Key Features:

2″ (32 mm) max. Sensor size
3 focal lengths: 35 mm, 50 mm and 75 mm
Very high resolution down to 2.4µ pixel size
Initial aperture: F2.8
M42 lens and TFL-Mount lens available
Covering a wide working distance range

Focal Length35-75mm

Max Sensor2"

ApertureF2.8

Schneider Line Scan

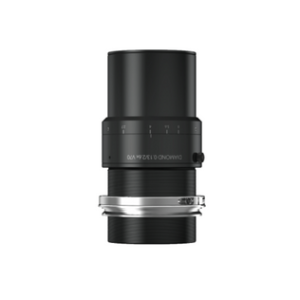

Diamond

Diamond’s Key Features:

Extremely high resolution down to 3.5µ pixel size
Image circle: 62.5 mm – 82 mm
Optimized for specific magnifications
5 magnifications available: 2.6x – 5.2x
Versions with beampslitter available
Best azimuth marking
V-Mount for easy installation

Magnification2.6x-5.2x

Image Circle62.5-82mm

MountV90

Schneider Line Scan

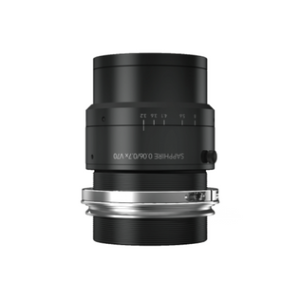

Sapphire

Sapphire’s Key Features:

Extremely high resolution down to 3.5µ pixel size
Image circle: 62.5 mm – 82 mm
Optimized for specific magnifications
11 magnifications available: 0.07x – 2.0x
Version with Beamsplitter available
Best azimuth marking
V70-Mount for easy installation

Magnification0.07x-2.0x

Image Circle62.5-82mm

MountV70

Schneider Line Scan
Zirconia

Zirconia’s Key Features:

Image circle: 62.5 mm – 82 mm
High resolution down to 5µ pixel size
Optimized for specific magnifications
6 magnifications available: 0.1x – 2.0x
Version with beampslitter available
Best azimuth marking
V48-Mount for easy installation

Magnification0.1x-2.0x

Image Circle62.5-82mm

MountV48

Schneider Liquid Lens

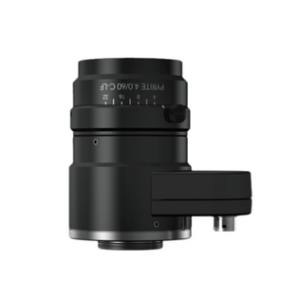

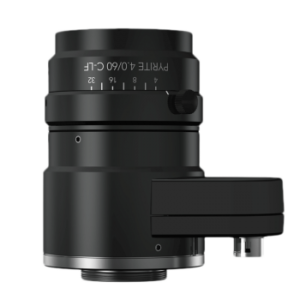

Pyrite LF

Pyrite’s Key Features:

Focus tunable liquid lens included
Large working distance range
Fast focus within milliseconds
Large image circle

Focal LengthVariable

Image CircleLarge

Liquid FocusYes

Schneider SWIR

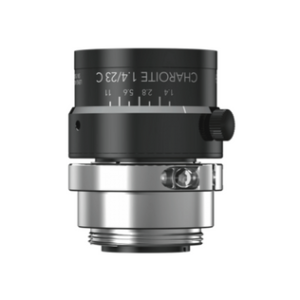

Charoite

Charoite’s Key Features:

SWIR (800-1800 nm) optimized
2/3″ (11 mm) max. sensor size
C-Mount lens
Focal length: 23 mm
Initial aperture: F1.4

Focal Length23mm

Max Sensor2/3"

ApertureF1.4

Schneider SWIR

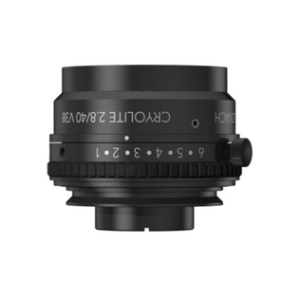

Cryolite

Cryolite’s Key Features:

SWIR (800-1800 nm) optimized
43.2 mm max. sensor size
Focal length: 40 mm
Initial aperture: F2.8
Compatible to the V38-Mount System

Focal Length40mm

Max Sensor43.2mm

ApertureF2.8

Schneider SWIR

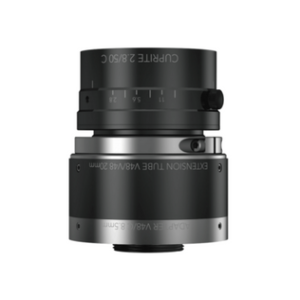

Cuprite

Cuprite’s Key Features:

SWIR (800-1800 nm) optimized
25.4 mm max. sensor size
Very high resolution down to 2.4µ pixel size
C-Mount lens and V48-Mount lens available
Focal length: 50 mm
Initial aperture: F2.8

Focal Length50mm

Max Sensor25.4mm

ApertureF2.8

Schneider Telecentric

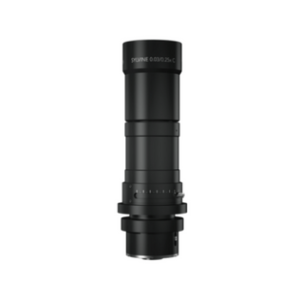

Sylvine

Sylvine’s Key Features:

Bilateral telecentric design
Very high resolution down to 2.4µ pixel size
2/3″ (11 mm) max. sensor size
C-Mount lens
5 magnifications: 0.2x – 1x

Magnification0.2x-1.0x

Max Sensor2/3"

MountC-Mount
