Showing 1–16 of 17 results

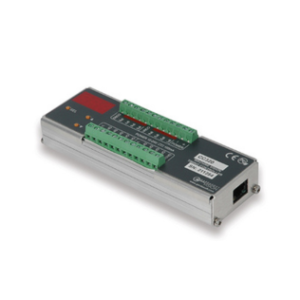

When combining lighting, cameras, proximity sensors and encoders to generate an automated solution, the CC320 Trigger Timing Controller is the single component for fast affordable integration. With 8 independent input channels, the controller can take a range of input signals from various components and use these to trigger events on any of the 8 independent output channels.

Key features:

  • Integrates encoders, cameras, lighting, proximity sensors, reject gates
  • Fast and simple set up – no complicated programming routines
  • Ethernet enabled for remote interfacing
  • Fast and accurate timing functions
  • Small compact size
  • A true single component solution for machine vision integration applications
  • Camera trigger timing
  • Reject gate timing
  • Remote digital input and output

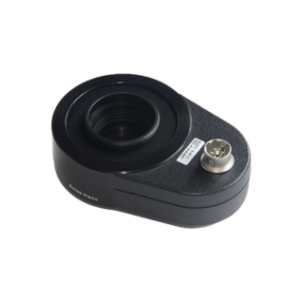

Key features:

  • One channel output
  • Include constant current lens drive and lens EEPROM data communications
  • -400 mA to +400 mA in 0.11 mA steps
  • Compatible with Optotune EL-16-40 TC lens
  • Full current calibration with lens temperature compensation (pre-calibrated lenses only)

Application benefits:

  • Precision, embedded controller for Optotune lenses
  • Compatible with the most common communication protocols for embedded devices

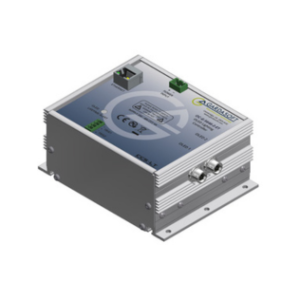

OLED panels have many benefits in machine vision applications because they give an exceptionally stable and uniform light intensity across the width of the panel. They are also very thin and can be moulded into complex shapes. However, OLED lights are challenging to control because the physical properties inherent in OLED panels demand sophisticated drive techniques to obtain fast and accurate pulsing.

Key features:

  • 2 channels of independent control
  • Extremely fast, stable light output
  • Safe overdrive limits
  • Specifically designed for OLED lighting
  • Compatible with CCS OLED panels
  • Gardasoft triniti Ethernet communications including GigEVision compatibility
  • Compatible with Gardasoft triniti utilities

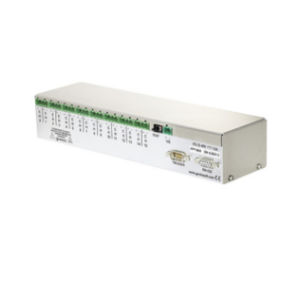

The PP1600 models can be quickly configured using our free software which can be downloaded from this page, or for the PP1620 Ethernet enabled controller range simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP1600 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet or RS232 connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.

Key features:

  • 16 channel LED lighting controllers
  • Pulsing up to 20A per channel
  • 8 trigger inputs
  • Ethernet or RS232 interface options
  • Designed for new generation LEDs
  • Compatible with nearly any LED lighting assembly available today
  • 2A continuous output
  • 1µs minimum pulse width

Application benefits:

  • Very fast bright strobing for freezing motion
  • Very repeatable lighting intensity
  • Driving the LEDs with a constant current, rather than voltage
  • Ability to pulse the output at a higher current to achieve a higher output intensity
  • Pulsing turns the LEDs off when not in use, increasing their MTBF rates, reducing downtime

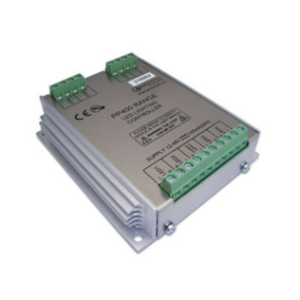

The PP420 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP420 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.

Key features:

  • Compatible with nearly any LED lighting assembly available today
  • Four independent controlled output channels
  • Ethernet interface
  • SafeSense™ technology for safe overdriving
  • Small compact unit with optional DIN mounting available

PP420 Quick Specification:

  • 4 channel output
  • Ethernet interface
  • 10A maximum pulsed
  • 2A maximum continuous
  • Supply voltage 12-48V DC
  • SafeSense™ enabled
  • 20µS minimum pulse width
  • Optional 1µS pulse width (F version)

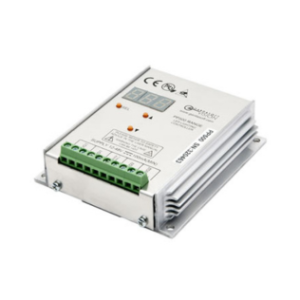

The PP520 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP520 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.

Key features:

  • Compatible with nearly any LED lighting assembly available today
  • Two independent controlled output channels
  • Push button interface with optional Ethernet connectivity
  • SafeSense™ technology for safe overdriving
  • Small compact unit with optional DIN mounting available

PP500 Quick Specification:

  • 2 channel output
  • Optional Ethernet interface
  • 10A maximum pulsed
  • 2A maximum continuous
  • Supply voltage 12-48V DC
  • SafeSense™ enabled
  • 20µS minimum pulse width
  • Optional 1µS pulse width (F version)

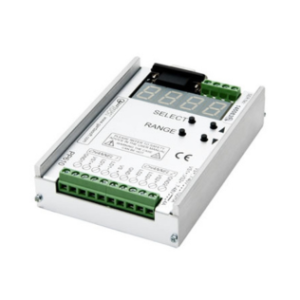

The PP610 RS232 enabled models can be quickly configured using our free software which can be downloaded from this page. If you are using a third party software package the PP610 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.

Key features:

  • Compatible with nearly any LED lighting assembly available today
  • Two independent controlled output channels
  • Push button interface with optional Ethernet connectivity
  • SafeSense™ technology for safe overdriving
  • Small compact unit with optional DIN mounting available

PP600 Quick Specification:

  • 2 channel output
  • Optical RS232 interface
  • 10A maximum pulsed
  • 4A maximum continuous
  • Supply voltage 12-48V DC
  • SafeSense™ enabled
  • 20µS minimum pulse width
  • Optional 5µS pulse width (F version)

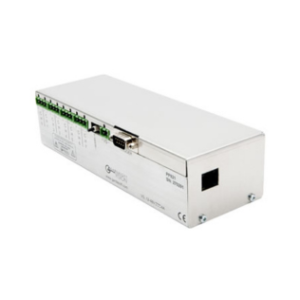

The PP800 models can be quickly configured using our free software which can be downloaded from this page, or for the PP820 Ethernet enabled controller range simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP800 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet or RS232 connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.

Key features:

  • Compatible with nearly any LED lighting assembly available today
  • Two independent controlled output channels
  • Push button interface with optional Ethernet connectivity
  • SafeSense™ technology for safe overdriving
  • Small compact unit with optional DIN mounting available

PP800 Quick Specification:

  • 8 channel output
  • Ethernet interface (PP820)
  • RS232 interface (PP860)
  • 20A maximum pulsed
  • 2A and 5A maximum pulse options
  • 2A maximum continuous
  • Supply voltage 12-48V DC
  • 1µS minimum pulse width

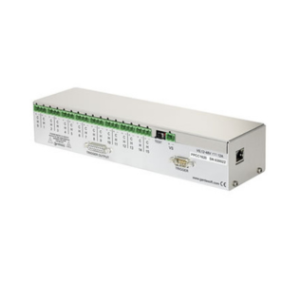

The PPCC16 combines the features of the Gardasoft PP1600 series LED Lighting Controllers with the addition of 8 digital outputs for triggering cameras or general use. With new generation LEDs the PPCC16 series can provide high intensity pulses which exceed the brightness of xenon strobes.

Key features:

  • 16 channel LED lighting controllers
  • Pulsing up to 20A per channel
  • 8 trigger inputs
  • 8 digital trigger outputs
  • Ethernet of RS232 interface options
  • Designed for new generation LEDs
  • 2A continuous output
  • 1µs minimum pulse width

Application benefits:

  • Very fast bright strobing for freezing motion
  • Very repeatable lighting intensity
  • Driving the LEDs with a constant current, rather than voltage
  • Combines LED Control with basic PLC triggering functionality
  • Ability to pulse the output at a higher current to achieve a higher output intensity
  • Pulsing turns the LEDs off when not in use, increasing their MTBF rates, reducing downtime

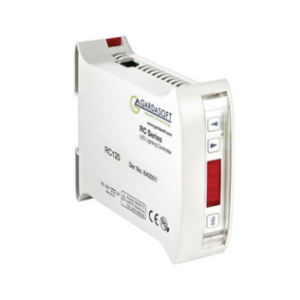

The RC range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the needs of perhaps having to use a bespoke DC power supply or heat sinking the controller. All RC models also include our SafeSense™ technology. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft RC Series controllers are therefore single channel current source devices.

Key features:

  • Entry level controllers
  • Single channel LED control
  • Push button and Ethernet configuration options
  • SafeSense™ technology for safe overdriving
  • SafePower™ for easy installation
  • Compatible with nearly any LED lighting assembly available today

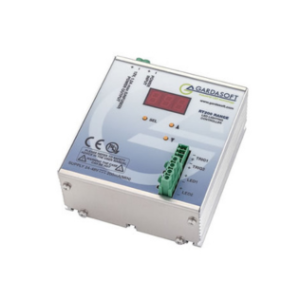

The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.

Key features:

  • Compatible with nearly any LED lighting assembly available today
  • Two independently controlled output channels
  • Push button, Ethernet or RS232 configuration options
  • SafeSense™ technology for safe overdriving
  • SafePower™ for easy installation
  • Small compact unit with optional DIN mounting available

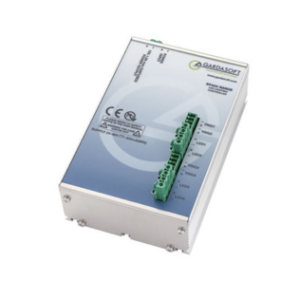

The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.

Key features:

  • Compatible with nearly any LED lighting assembly available today
  • Four independently controlled output channels
  • Ethernet or RS232 configuration options
  • SafeSense™ technology for safe overdriving
  • SafePower™ for easy installation
  • Small compact unit with optional DIN mounting available

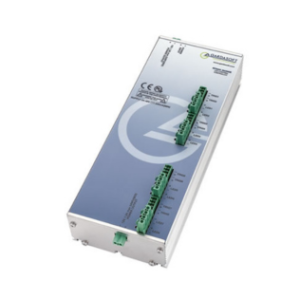

The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.

Key features:

  • Compatible with nearly any LED lighting assembly available today
  • Eight independently controlled output channels
  • Push button, Ethernet or RS232 configuration options
  • SafeSense™ technology for safe overdriving
  • SafePower™ for easy installation
  • Small compact unit with optional DIN mounting available

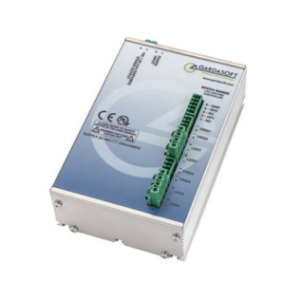

The RTCC4 combines the features of the Gardasoft RT Series LED Lighting Controllers with the addition of two digital outputs for Triggering or general use. This combination provides a high level of integration in Machine Vision systems – reducing complexity, space and cost.

Key features:

  • Combines Lighting Control with Trigger Timing
  • Two extra digital outputs to standard Gardasoft RT Controllers
  • Includes all RTCC4 timing and sequencing functionality
  • Encoder input
  • SafePower™ and SafeSense™ technologies for Lighting Control

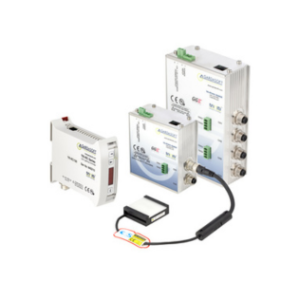

Gardasoft TR Series LED Controllers are a core component of a triniti Intelligent Lighting system. triniti is a new enabling technology from Gardasoft, which provides expert control, operational intelligence and full integration of Machine Vision lighting – all within a ‘plug & play’ environment.

Key features:

  • 1, 2 and 4 channel LED lighting controllers
  • Compatible with triniti Intelligent Lighting platform
  • GigE Vision compliant
  • Pulsing up to 20A
  • Continuous output to 3.0A
  • 30W maximum output per channel
  • Pulse timing to 20µs
  • Ethernet and Push-button interfaces (dependent on model)

Triniti application benefits

  • Enables non-expert users to use expert Machine Vision lighting techniques
  • Revolutionises the integration of lighting parameters right through to application level software
  • Addresses the industry’s need for a flexible system that is readily ‘plug & play’
  • Provides a stability of brightness, long-term, that helps to enhance the reliability of Vision systems, over many years

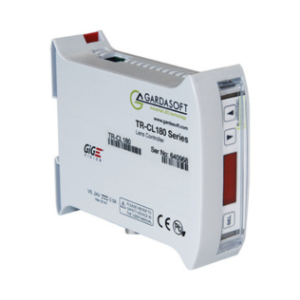

The Gardasoft TR-CL180 is a single-channel industrial Lens Controller which provides very accurate and repeatable control of tunable lenses. The TR-CL180 has been developed in close collaboration with Optotune. The TR-CL180 includes a precise, constant current drive for the liquid lens and is able to read data stored within the liquid lens. It is compatible with Optotune EL-10-30-Ci, EL-16-40-TC and EL-3-10 tunable lenses.

Key features:

  • One channel high resolution output
  • Include constant current Lens drive and Lens EEPROM data communications
  • -400mA to +400mA in 0.1mA steps
  • Compatible with Optotune EL-10-30-Ci and EL-16-40-TC and EL-3-10 lenses
  • Full current calibration with lens temperature compensation

Application benefits:

  • Industrial, precision control for Optotune lenses
  • Easy connection with cameras and lighting via triniti Intelligent Machine Vision platform
  • GigE Vision compliance, lenses therefore easily integrated with standard Image Processes software
