Showing 1–16 of 118 results



TC5018-10MP TC7520-10MP
Focal Length (mm) 50 75
Image Format (Inch) 1″
1″
Resolution (Megapixel) 10 10
Pixel Size (μm) 3.4 3.4
Aperture (F)
1.8 — 22
2.0 — 22
Angle of View
14.5° x 10.8°
9.7° x 7.3°
Mount C C
M.O.D. (m) 0.2 0.9
Filter Size
M37.5mm P=0.5
M40.5mm P=0.5
Dimensions (φ) mm
43.2
45
Dimensions (L) mm
58.5
71.7
Iris Control
Manual with Locking screw
Manual with Locking screw
Focus Control
Manual with Locking screw
Manual with Locking screw
Back Focal Length (mm)
13.63
13.76
Operating Temperature (°C ~ )
-10 — +55
-10 — +50
Weight (g) 173
223



TC1216-5MP TC1616-5MP TC2016-5MP TC2516-5MP TC3514-5MP
Focal Length (mm) 12 16 20 25 35
Image Format (Inch) 1″
1″
1″
1″
1″
Resolution (Megapixel) 5 5 5 5 5
Pixel Size (μm) 5 5 5 5 5
Aperture (F)
1.6 — 22
1.6 — 22
1.6 — 22
1.6 — 22
1.4 — 22
Angle of View
57.1° x 44.1°
44.2 x 33.5°
36.1° x 27.2°
29° x 21.8°
20.7° x 15.6°
Mount C C C C C
M.O.D. (m) 0.2 0.35 0.45 0.45 0.45
Filter Size
M52mm P=0.75
M37.5mm P=0.5
M39mm P=0.5
M39mm P=0.5
M39mm P=0.5
Dimensions (φ) mm 54
43.9
43.9
43.9
43.9
Dimensions (L) mm
60.4
57.8
54.95
51.38 48.96
Iris Control
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw Manual with Locking screw
Focus Control
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw Manual with Locking screw
Back Focal Length (mm)
13.54
12.17
12.19
12.69
12.83
Operating Temperature (°C ~ )
-10 — +55
-10 — +50
-10 — +50
-10 — +50
-10 — +50
Weight (g) 185
201
163 157 154



TVR1426HDIR
Focal Length (mm) 14 50
Image Format (Inch) 1″
Resolution (Megapixel) 8



TC0816-10MP TC1216-10MP TC1616-10MP TC2514-10MP TC3514-10MP
Focal Length (mm) 8 12 16 25 35
Image Format (Inch) 2/3″ 2/3″
2/3″
2/3″
2/3″
Resolution (Megapixel) 10 10 10 10 10
Pixel Size (μm) 2.4 2.4 2.4 2.4 2.4
Aperture (F)
1.6 — 22
1.6 — 22
1.6 — 22
1.4 — 16
1.4 — 22
Angle of View
55.8° x 43.3°
39.8° x 30.4°
30.8° x 23.4°
30.46° x 23.07°
20° x 15°
Mount C C C C C
M.O.D. (m) 0.15 0.1 0.2 0.1 0.2
Filter Size
M40.5mm P=0.5
M37.5mm P=0.5
M37.5mm P=0.5
M37.5mm P=0.5
M37.5mm P=0.5
Dimensions (φ) mm 45
43.2
43.2
30
43.2
Dimensions (L) mm 53
58.5
63.3
43 54.5
Iris Control
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw Manual with Locking screw
Focus Control
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw Manual with Locking screw
Back Focal Length (mm) 12.44
12.42
12.36
11.75
12.78
Operating Temperature (°C ~ )
-10 — +55
-10 — +50
-10 — +50
-10 — +50
-10 — +50
Weight (g) 170 178 181 70 148



TC0814-3MPG TC1214-3MPG TC1614-3MPG
Focal Length (mm) 8 12 16
Image Format (Inch) 2/3″
2/3″
2/3″
Resolution (Megapixel) 3 3 3
Pixel Size (μm) 4.4 4.4 4.4
Aperture (F) 1.4-16
1.4 — 16
1.4 — 16
Angle of View
57.3° x 44.3°
39.6° x 30.2°
30.46° x 23.07°
Mount C C C
M.O.D. (m) 0.1 0.1 0.1
Filter Size
M27mm P=0.5
M27mm P=0.5
M27mm P=0.5
Dimensions (φ) mm 30
30
30
Dimensions (L) mm 47.5 47.5 43
Iris Control
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw
Focus Control
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw
Back Focal Length (mm) 11.46 11.7
11.75
Operating Temperature (°C ~ )
-10 — +55
-10 — +50
-10 — +50
Weight (g) 75 80 70



TC1218-8MP TC2518-8MP TC3520-8MP TC5024-8MP
Focal Length (mm) 12 25 35 50
Image Format (Inch) 2/3″
2/3″
2/3″
2/3″
Resolution (Megapixel) 8 8 8 8
Pixel Size (μm) 2.74 4.4
2.74
2.74
Aperture (F)
1.8 — 22
1.8 — 22
2.0 — 22
2.4 — 22
Angle of View
40.85° x 31°
20.1° x 15.1°
11.96° x 9.07°
8.2° x 6.36°
Mount C C C C
M.O.D. (m) 0.06 0.13 0.18 0.25
Filter Size
M25.5mm P=0.5
M25.5mm P=0.5
M25.5mm P=0.5
M30.5mm P=0.5
Dimensions (φ) mm 30
30
30 36
Dimensions (L) mm 50.4
48.3
43.47 47.5
Iris Control
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw Manual with Locking screw
Focus Control
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw Manual with Locking screw
Back Focal Length (mm) 17.526
17.526
17.526
17.526
Operating Temperature (°C ~ )
-10 — +50
-10 — +50
-10 — +50
-10 — +50
Weight (g) 80 70 80 90



TC1220-12MP TC1620-12MP TC2520-12MP TC3520-12MP TC5020-12MP
Focal Length (mm) 12 16 25 35 50
Image Format (Inch)
4/3″
4/3″
4/3″
4/3″
4/3″
Resolution (Megapixel) 12 12 12 12 12
Pixel Size (μm)
4.7
4.7 4.7 4.7 4.7
Aperture (F)
2.0 — 22
2.0 — 22
2.0 — 22
2.0 — 22
2.0 — 22
Angle of View
75.46° x 61.08°
44.2 x 33.5°
40.6° x 31°
29.6° x 22.4°
20.9° x 15.7°
Mount C C C C C
M.O.D. (m) 0.15 0.1 0.15 0.2 0.3
Filter Size
M77mm P=0.75
M58mm P=0.75
M46mm P=0.75
M40.5mm P=0.5
M40.5mm P=0.5
Dimensions (φ) mm 80
59.8
48
44.6
44.6
Dimensions (L) mm
84.4
85.9
82.7
54.9
53.7
Iris Control
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw Manual with Locking screw
Focus Control
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw
Manual with Locking screw Manual with Locking screw
Back Focal Length (mm)
18.93
21
22.43
18.65
20.29
Operating Temperature (°C ~ )
-10 — +55
-10 — +50
-10 — +50
-10 — +50
-10 — +50
Weight (g) 447
338
250 173 170



TFM-100
Focal Length (mm) 100mm Fixed
Image Format (Inch) φ43mm
Angle of View (HxV) 24.5°
Aperture (F)
2.8 — 32
Mount F
M.O.D. (m) 0.3
Filter Size
M55mm P=0.75
Dimensions (φ) mm
70
Dimensions (L) mm
95
Iris Control
Manual
Focus Control
Manual
Back Focal Length (mm)
44.18
Operating Temperature (°C ~ )
-20 — +55
Weight (g)
514



KCM-05-65SR KCM-05D-65SR KCM-1-75SR KCM-1D-75SR KCM-2-65SR KCM-2D-65SR KCM-4-65SR KCM-4D-65SR KCM-1-110SR KCM-1D-110SR KCM-2-110SR KCM-2D-110SR KCM-4-110SR KCM-4D-110SR
Magnification 0.5 0.5 1 1 2 2 4 4 1 1 2 2 4 4
O/I (mm) (Object to image distance) 211.7 211.7 174.9 174.9 167 167
237.6
237.6
258.1
258.1
Working Distance (mm) 65 65 75 75 65 65 65 65 110 110 110 110 110 110
D.O.F. (μ) 360 360 710 710 180 180 710 710 180 180
Resolution (μ) 8.39 8.39
6.1
6.1
3.05
3.05
6.1 6.1 3.05 3.05
Working F No 6.3 6.3 9.4 9.4 9.1 9.1 9.3 9.3 9.1 9.1
NA
0.04
0.04
0.055 0.055 0.11 0.11 0.055 0.055 0.11 0.11
Dimensions (L) mm 129.1 129.1 81.7 81.7 87.4 87.4 97.4 97.4
110
110
129.6 129.6 130.8 130.8
Weight (g) 170 180 90 100 90 100 100 110 120 130
160
170
170 180
Sensor Size (max.~) “ 2/3 2/3
2/3
2/3 2/3 2/3 2/3 2/3 2/3 2/3 2/3 2/3 2/3 2/3
Resolution (Megapixel)
5
5
2
2 2 2 2 2 2 2
Pixel Size (μm)
3.6
3.6
5.5
5.5 5.5 5.5 5.5 5.5 5.5 5.5



KCM-1-65C KCM-1D-65C KCM-2-65C KCM-2D-65C KCM-4-65C KCM-4D-65C KCM-1-110C KCM-1D-110C KCM-2-110C KCM-2D-110C KCM-4-110C KCM-4D-110C
Magnification 1 1 2 2 4 4 1 1 2 2 4 4
O/I (mm) (Object to image distance) 177.7 177.7 145.4 145.4 210 210 213.6 213.6
Working Distance (mm) 65 65 64.8 64.8 64.8 64.8 110 110 110 110 110 110
D.O.F. (μ) 1140 1140 300 300 1600 1600 490 490
Resolution (μ) 9.6 9.6
5.1
5.1 13.4 13.4 8.4 8.4
Working F No 14.2 14.2 15 15 20 20 24.6 24.6
NA
0.035
0.035 0.066 0.066 0.025 0.025 0.04 0.04
TV Distortion (%) 0.11 0.11 -0.03 -0.03 0.06 0.06 -0.03 -0.03
Dimensions (L) mm 95.2 95.2 63.1 63.1 76.5mm 76.5mm 82.55 82.55 86.1 86.1 91.12mm 91.12mm
Weight (g) 60 69 37 46 40 40 55 64 42 52 45 45
Sensor Size (max.~) “
1/2
1/2
2/3
2/3 1/2 1/2 2/3 2/3

With over 60 years of technical experience and know-how in optics, Kowa is proud to present the next generation of crystal clear, super wide angle, fixed focal length lenses. In particular, Kowa’s 8.5mm F2.8 model is able to produce ultra HD resolution by applying high precision aspherical lens elements. This design allows our 8.5mm lens to have minimal distortion even though it projects a super wide angle of view.

Features

  • The 8.5mm focal length model (KOWA PROMINAR 8.5mm F2.8) achieves a realistic and large-scale imaging expression with a distortion value of only 0.12% even though it offers a diagonal angle of view of 106°.

    [Note] Some lenses of the micro four thirds system standard may not be mounted to the camera.

  • The model with a wide angle of view and a 12mm focal length (KOWA PROMINAR 12mm F1.8) has a bright F1.8 aperture, and its distortion value has also been reduced to 0.59%.

    [Note] Some lenses of the micro four thirds system standard may not be mounted to the camera.

  • The model with a 25mm standard focal length (KOWA PROMINAR 25mm F1.8) suited for use in a variety of shooting environments has a bright F1.8 aperture, and provides a sharp image.

    [Note] Some lenses of the micro four thirds system standard may not be mounted to the camera.

  • XD Lenses

    Kowa’s XD Lenses (extra-low dispersion glass), when combined with a concave lens possessing special dispersion properties, reduces a very high percentage of chromatic aberration.

  • デュアル リンク アイリス

    A dual Link Iris system makes it possible to choose silent or click aperture adjustment. Aperture settings can be changed in an instant to suit the photographic subject.

  • 9枚円形絞り

    The construction of the aperture blades with 9 elements makes it possible that the diaphragm shows a circle at all f-stops, creating a more natural impression.

  • 金属ボディ

    All internal parts are protected by a solid and rigid aluminium housing.
    The body feels reassuringly well made with good balance and weightiness in the hand and when attached to a camera body.

  • フローティング機構

    The floating mechanism system is effective in preventing malfunction and increasing the life of the lens. High optical performance was achieved in all photographic subject distances.

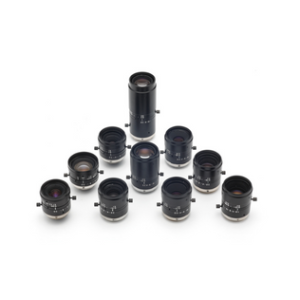

Features:

  • Design for machine vision application, excellent performance at short WD, less than 500mm
  • Reduce color aberration, compared with Conventional Fixed Focal Lens
  • TV distortion less than 0.1% (except for f4mm)
  • Possible to use for macro imaging without extension ring

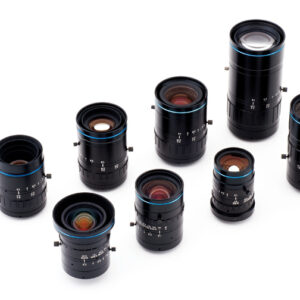

Features:

  • f12mm, HF1218V is suitable for 25 Mega Pixel and 12 Mega Pixel
  • f16mm – f75mm are compatible with 1.1”- 1.2”
  • Suitable for different types of sensor
  • Excellent performance at macro imaging, compared with conventional Mega Pixel Fixed Focal lens
  • Stable performance at different working distance by floating design
  • Large aperture
  • Robust design, suitable for machine vision applications

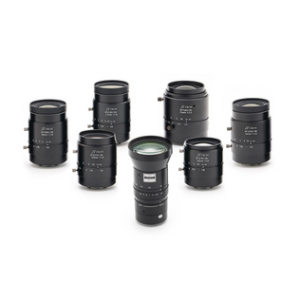

Features:

  • f12mm, 16mm, 25mm, 35mm, 50mm, 75mm are available for Fixed Focal Lens
  • f16~50mm is available for Varifocal Lens
  • 400nm~950nm Focus Shift correction
  • Realizes color reproduction in color images
  • Super high resolution, Low distortion, and excellent uniformity of brightness
  • Line up : Extension ring for close-up purpose

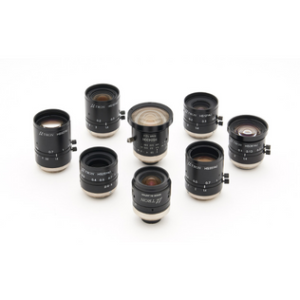

Features:

  • HS0420H and HS0618H are designed for low distortion
  • Stable performance from macro to infinity (∞)
  • Suitable for 3 Mega Pixel (1/1.8″,2/3″)
  • High durability
