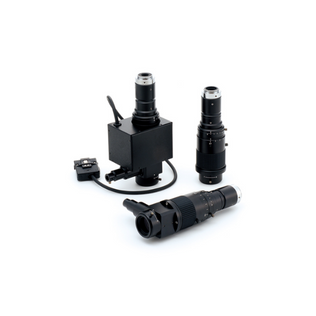

Myutron Macro Zoom Lens – HMZ Series

Features:

Compatible with 1/1.8” of Mega Pixel camera
High resolution and compact design
High contrast and low distortion
Improve uniformity of brightness for co-axial illumination
Magnification and working distance can be converted to 0.21x – 18x, WD37 – 329mm by using converters

Model	Magnification	WD	Resolution	Object side NA	Depth of field	TV distortion	Maximum Compatible sensor
HMZ0745 (Manual Zoom)	0.7x〜4.5x	92mm	11.5μ〜2.87μ	0.03〜0.12	2mm〜 0.08mm	0.05%〜0.08%	1/1.8”
HMZ0745C (Manual Zoom/Co-axial type)	0.7x〜4.5x	92mm	11.5μ〜2.87μ	0.03〜0.12	2mm〜0.08mm	0.05%〜0.08%	1/1.8”
HMZ0745C-SM (Motorized Zoom/Co-axial type)	0.7x〜4.5x	92mm	11.5μ〜2.87μ	0.03〜0.12	2mm〜0.08mm	0.05%〜0.08%	1/1.8”
