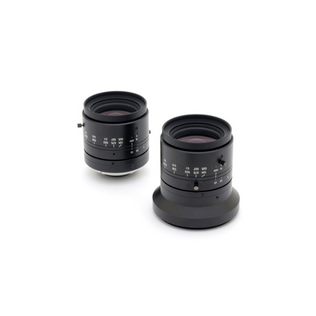

Myutron Line Sensor Lens – WF Series

Features:

  • f50mm is available
  • The widest angle for φ62mm in machine vision industry
  • Suitable for Line Sensor Camera such as 16K x 3.5μm, 12K x 5μm, 8K x 7μm
  • Possible to capture the large field of view by one camera in limited space
  • F and M72 mount are available



Myutron Line Sensor Lens – WF Series Model


Product ModelFocal Length∞FNOWDMagnification at MODOptical distortionMax. Compatible SensorMount
WF5045-□50mm4.5266mm – ∞0.2×-0.01%φ62.5M72 or F
Product price
Additional options total:
Order total:
Add to Proposal
