Multi-format multi-input UHD video capture card with optional H.264 encoding

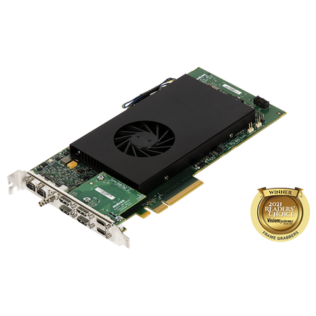

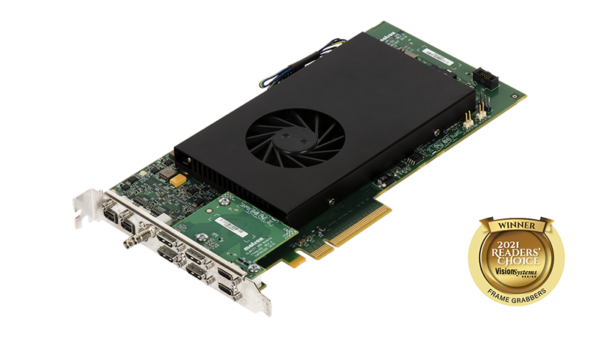

Matrox® Clarity UHD is a comprehensive video capture card supporting the full range of video formats from standard definition (SD) to high definition (HD) all the way to ultra-high definition (UHD). Mini DisplayPort™, HD-BNC, HDMI™, and custom analog DVI1 connectivity are provided to hook up to and switch between the different types of legacy and advanced video sources used in medical, surveillance, and simulation-training applications. System setup and management are further simplified with the board’s automatic video source presence and format detection. Matrox Clarity UHD can simultaneously acquire multiple streams—such as eight HD (1080p60) or two 4K UHD (2160p60) video streams—and reliably transfer these off-board using its efficient PCIe® 2.0 x8 host interface.
| Feature | CLA4GHDSA | CLA4GHDSAE |
|---|---|---|
| Product family | Clarity UHD | Clarity UHD |
| Card type | PCIe video capture card | PCIe video capture card |
| PCIe interface | PCIe 2.0 x8 | PCIe 2.0 x8 |
| Memory | 4 GB | 4 GB |
| HDMI input | Available | Available |
| DisplayPort input | Available | Available |
| SDI input | Available | Available |
| Analog input | Available | Available |
| H.264 encoding | — | Available |
The Axion-CL is the most powerful CL frame grabber BitFlow has ever manufactured. A natural addition to this family was obvious…a CL Base version. The Axion xB series will be replacing the Neon series of Camera Link frame grabbers.
The Axion-CL also benefits from other products in BitFlow’s line up. The Axion-CL uses the Cyton-CXP’s backend: the StreamSync DMA engine and buffer manager. A brand new PCIe Gen 2 interface, with DMA optimized for modern (fully loaded, fully busy) computers.
Moving from the Neon family to the Axion family is simple. No need to make changes to your code, just recompile with the latest SDK. If you are using a 3rd party application, such as Cognex Vision Pro or LabVIEW, just download the latest driver and your program will already be supported. The same application can support both the Axion and the Neon family (as well as our CXP line of frame grabbers).
Connectors on the Axion 1xB are the same as those on the Neon CLB, so your existing cable infrastructure will not need to be changed.
Smart network interface cards for efficient high-bandwidth GigE Vision acquisition
Matrox® GevIQ is the industry’s first network interface card (NIC) offering generic GigE Vision® acquisition offload at speeds up to 25 Gigabits/s per port. With GigE Vision packet processing performed directly onboard, Matrox GevIQ boards enable capture from one or more cameras without any image data loss.
GigE Vision is a camera interface standard that delivers rapid image transfer over distances up to 100 m using standard copper, and up to 5,000 m using standard fiber-optic Ethernet cabling. The standard supports physical links from 1 to 25 Gigabit Ethernet (GbE). Use of 10 and 25 GbE by cameras are gaining industry popularity as they are ideal for vision applications requiring the utmost imaging speed and resolution. Machine vision applications requiring cameras with a 10+ GbE interface can, however, be challenging—they benefit from a high data transmission rate but suffer from increased demands on the host system, resulting in corrupted or dropped image frames, and increased processing latency.
Matrox GevIQ NICs provide a more versatile and widely compatible alternative to custom-built or proprietary solutions based on 10+ GbE. The board is equipped with two 25 GbE ports and acquires from these with very little host CPU usage. Multiple 1, 2.5, 5, or 10 GbE cameras can be aggregated at each port for a total of up to 32 input sources. Support of the standard SFP28 connector allows users to select from standard direct attach copper (DAC) or fiber-optic Ethernet cables for their specific installation requirements.
The Aon-CXP is low cost single link CoaXPress frame grabber. While it looks tiny, it has all the power of its big brother, the Cyton. It supports CXP camera speeds up to 6.25 Gb/S. The technology that Machine Vision components are built on are advancing rapidly in performance while size and costs are plummeting. CoaXPress cameras, which traditionally were power hungry, large, and expensive, are now small, cool, and affordable. Single link cameras are coming out that are 29mm cubes. While this sounds tiny, they can still receive 6.25 Gb/S worth of data over the link, almost twice the real world data rate of the USB3 Vision standard and significantly quicker than the latest GigE Vision data rates. This means you can get 2 MP images at 300 FPS! The Aon CXP has been designed for this low cost/high-performance market.
A small foot print single link CXP camera mated with the Aon-CXP can provide all the convenience of a GigE Vision or USB3 Vision camera system. It can compete on price; can exceed the cable lengths in many cases; and can provide a host of Machine Vision features missing from GigE Vision or USB3 Vision camera systems (triggers, encoders, strobe, waveform generators, quadrature encoder support, etc.). Furthermore, because of the Aon’s advanced DMA engine, no CPU resources are used in moving images to host memory.
One of the biggest advantages of buying a frame grabber over a GigE Vision or USB3 Vision camera is that all of the hardware and software components of the capture system are sourced from one manufacturer. It is not a bunch of separate blocks from different manufacturers (including Intel and Microsoft). BitFlow wrote every line of software and firmware and designed all their own hardware, which means if you have a problem we can support you. If the problem is on our side, we can fix it ourselves and get you a solution in a short amount of time.
Simplify your industrial, medical, or semiconductor imaging application with BitFlow’s Neon-DIF, the easiest to use and most reliable differential frame grabber available anywhere. The Neon-DIF captures images at speeds up to the camera’s highest frame/data rate, with precision image acquisition suitable for the most demanding applications.
The Neon-DIF is designed for the OEM customer looking for the performance of the PCI Express bus, a differential interface, and one of the lowest price points in the industry. The target markets are applications where the current frame grabber is no longer available but the camera and application are still important. Another niche that this product fills is differential applications where the PC needs upgrading, but the frame grabber has a PCI interface. Motherboards with PCI slots are getting harder and harder to find. Finally, customers who want to port their application to 64-bit Windows are finding that their differential frame grabbers are not supported on newer operating systems. The Neon-DIF can handle all of these situations.
The Neon-DIF is not just for legacy situations, however. There are still a tremendous number of devices that output differential data that may not even be cameras. The Neon-DIF can acquire from just about anything and efficiently DMA the data into host memory.
Adding the Neon-DIF to your application is simple with our SDK, which supports both 32-bit and 64-bit operating systems. The SDK provides high level APIs for sophisticated buffer management and low-level direct access to the board for speedy custom control.
