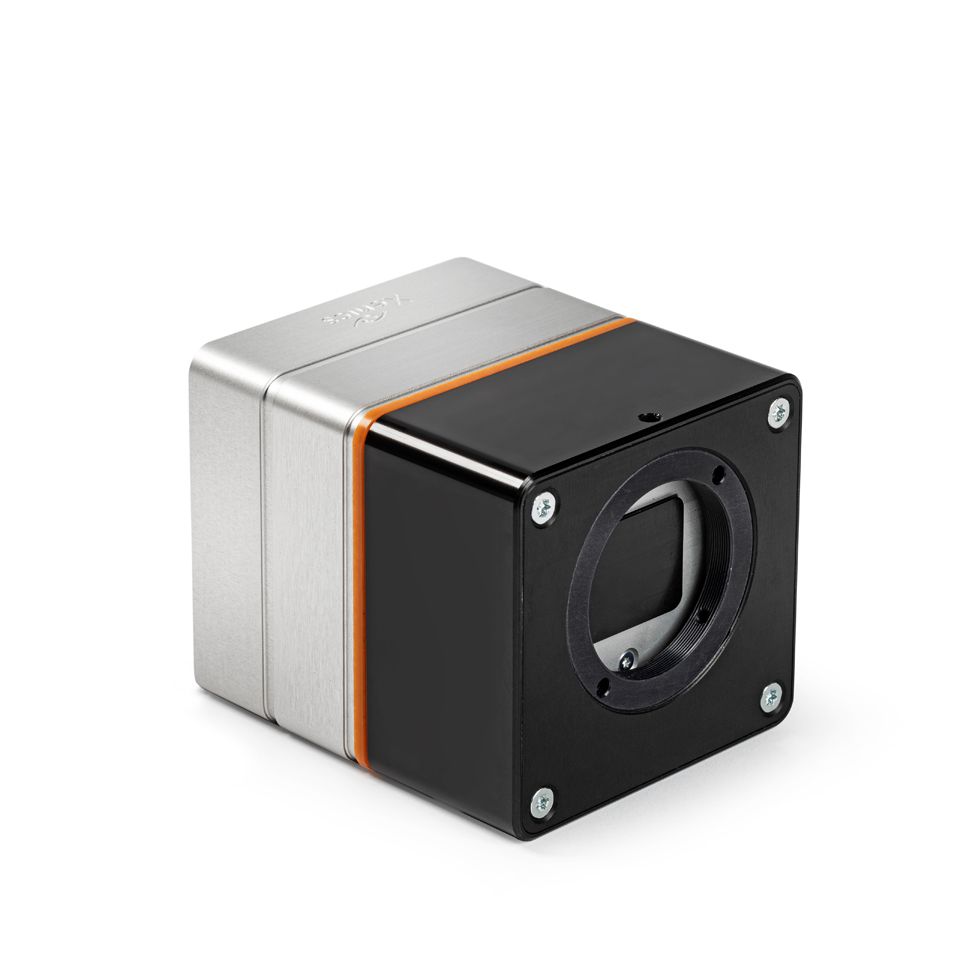

The Ceres V 1280 is based upon the Dione 1280 OEM thermal imaging core with 1280×1024 pixels and 12 μm pixel pitch. The camera offers superior thermal imaging capabilities thanks to the state-of-the-art high-resolution microbolometer detector and on-board image processing.
The Ceres V 1280 camera outputs full frame images at 60 Hz via either a CameraLink or GigE Vision interface – all GenICam compliant.
The compact size, excellent image quality and GenICam compliant interfacing allow for easy integration in demanding industrial, scientific and security thermal imaging applications.
The camera comes either in a no-lens configuration (camera only with M34x0.5 and M45x0.75 optical mount), or with four different HFOV (Horizontal Field-Of-View) options: 12, 16, 25, 48 or 71 degrees
The high-resolution Ceres V 1280 series find application in industrial machine vision, scientific research, medical and security systems where a GenICam compliant interface is a strong requirement.
Benefits & Features
• Compact and high-resolution
• Superior on-board image processing performance (optimized imge quality)
• GenICam compliant
• Uncooled operation
• Flexible optical mount and lens options
| Ceres V 1280 GigE | Ceres V 1280 CL | |
| Approximate dimensions – excluding lens [width x height x length] [mm] | 65 x 68 x 84 | 65 x 68 x 81 |
| Weight [gr] | 583 | 534 |
| Optical interface | M34 x 0.5 & M45 x 0.75 | M34 x 0.5 & M45 x 0.75 |
| Connector GigE | RJ45 | - |
| Connector CameraLink | - | SDR-26 |
| Connector power | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
| Connector trigger | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
| Connector general I/O | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
| Ceres V 1280 GigE | Ceres V 1280 CL | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -40 to +85 | From -40 to +85 |
| Power consumption [W] | 5.5 | 5 |
| Power supply voltage | DC 12 V | DC 12 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g (20 to 2000 Hz), MIL-STD810G | 5 g (20 to 2000 Hz), MIL-STD810G |
| IP rating | IP40 | IP40 |
| Regulatory compliance | RoHS, CE | RoHS, CE |
| Ceres V 1280 GigE | Ceres V 1280 CL | |
| Image format [pixels] | 1280x1024 | 1280x1024 |
| Pixel pitch [µm] | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 15.36 x 12.29 (diagonal 19.67) | 15.36 x 12.29 (diagonal 19.67) |
| Detector NETD (Noise Equivalent Temperature Difference) [mK] | <60 (at 30Hz, 300K, F/1) | <60 (at 30Hz, 300K, F/1) |
| Spectral range [µm] | 8-14 | 8-14 |
| Pixel operability | >99.5% (excluding 3 peripheral rows and columns) | >99.5% (excluding 3 peripheral rows and columns) |
| Max frame rate [Hz] (full frame) | 60 | 60 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Command and control | GigE | CL |
| Digital output format | GigE | CL |
| Trigger | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
