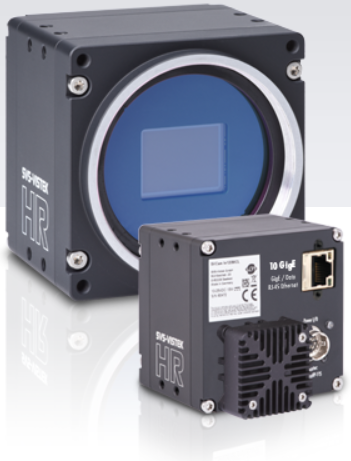

10 GigE and Dual GigE Vision are the most easy way to profit of high interface bandwidth together with the advantages of standard networking technologies. An advantage is the reliable, cost-effective transmission of the image data over a distance of more than 100 m with standard network technology. The 10GigE and GigE cameras of the HR series impress with their housing concept, the wide-range lenses and the unique picture quality. The clean design according to well established standards like GigE Vision, 10 GigE Vision and GenICam ensure rapid integration into the final application.
| Model | MP | Resolution | Chroma | Sensor Size | Frame Rates (fps) |
| hr387MXGE | 16.7 | 5440 x 3076 pixel | Monochrome | 21.7mm (4/3) CMOS | 56.4 |
| hr342MXGE | 31.4 | 6464 x 4852 pixel | Monochrome | 27.9mm (APS-C) CMOS | 35.4 |
| hr51MXGE | 51 | 8424 x 6032 pixel | Monochrome | 35mm Full Frame CMOS | 23.7 |
| hr51MXGE-G2 | 51 | 8424 x 6032 pixel | Monochrome | 35mm Full Frame CMOS | 23.7fps (Grade 2 Sensor) |
| hr455MXGE | 61 | 9568 x 6380 pixel | Monochrome | 43.3mm (Type 2.7) CMOS | 18 |
| hr65MXGE | 65 | 9344 x 7000 pixel | Monochrome | 37.4mm CMOS | 17.4 |
| hr65MXGE-G2 | 65 | 9344 x 7000 pixel | Monochrome | 37.4mm CMOS | 17.4fps (Grade 2 Sensor) |
| shr461MXGE | 101.8 | 11648 x 8742 pixel | Monochrome | 55mm (Type 3.4) CMOS | 8.7 |
| shr661MXGE | 127.6 | 13392 x 9528 pixel | Monochrome | 56.73mm (Type 3.6) CMOS | 9 |
| shr411MXGE | 151 | 14192 x 10640 pixel | Monochrome | Medium Format" CMOS | 6.1 |
| hr387CXGE | 16.7 | 5440 x 3076 pixel | Color (Bayer) | 21.7mm (4/3) CMOS | 56.4 |
| hr342CXGE | 31.4 | 6464 x 4852 pixel | Color (Bayer) | 27.9mm (APS-C) CMOS | 35.4 |
| hr51CXGE | 51 | 8424 x 6032 pixel | Color (Bayer) | 35mm Full Frame CMOS | 23.7 |
| hr51CXGE-G2 | 51 | 8424 x 6032 pixel | Color (Bayer) | 35mm Full Frame CMOS | 23.7fps (Grade 2 Sensor) |
| hr455CXGE | 61 | 9568 x 6380 pixel | Color (Bayer) | 43.3mm (Type 2.7) CMOS | 18 |
| hr65CXGE | 65 | 9344 x 7000 pixel | Color (Bayer) | 37.4mm CMOS | 17.4 |
| hr65CXGE-G2 | 65 | 9344 x 7000 pixel | Color (Bayer) | 37.4mm CMOS | 17.4fps (Grade 2 Sensor) |
| shr461CXGE | 101.8 | 11648 x 8742 pixel | Color (Bayer) | 55mm (Type 3.4) CMOS | 8.7 |
| shr661CXGE | 127.6 | 13392 x 9528 pixel | Color (Bayer) | 56.73mm (Type 3.6) CMOS | 9 |
| shr411CXGE | 151 | 14192 x 10640 pixel | Color (Bayer) | Medium Format" CMOS | 6.1 |
SVS-Vistek SWIR cameras incorporate Sony SenSWIR technology and the proven EXO and FXO camera platforms. Thanks to their wide spectral range and high sensitivity, SVS-Vistek SWIR cameras combine the benefits of an extremely compact footprint with a range from 400nm VIS to the SWIR range at 1700nm. With an innovative thermal design, users can have outstanding optical quality and dynamic range results, potentially using a single camera for multiple areas of the light spectrum.
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
EXO series cameras with GigE Vision interface gives your applications an extreme scalability. Quick and easy hardware interchangeability results in shorter design cycles and reduced development costs. Further value is added to your application by a virtually limitless feature set. As an example, the 4IO LED driver with standardized software control.
The EXO is one of the most flexible and scalable cameras for the industrial market segment. The USB3 Vision interface is easy to integrate in your system, with a data rate up to effective 360 MB/sec. Single cable interface for power an data reduces cable complexity. integrated multi channel GenICam LED light controller provides currents up to 3 A. EXO provides Plug-and-play capability for the whole range of 2.3 to 31 MP resolution.
