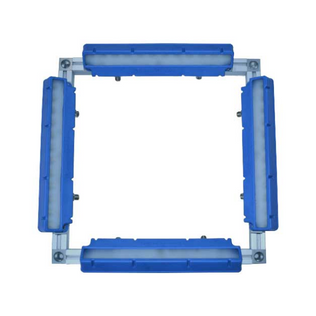

The DFL-24 is an adjustable Dark Field Light and comes with eight L300s, which allows for easy mounting using the extrusion frame. Quickly rotate any light to provide the optimal lighting pattern for a dark field application. The DFL-24 features a 360° illumination field. Each side of the DFL-12 is 600 mm in length.
| Product Details | |
| Illumination Type | Dark Field |
| IP Rating | IP50 |
| Min Working Distance | 50 mm |
| Max Working Distance | 500 mm |
| Mode | Continuous |
| Wavelength | WHI- White / 365 - UV / 395 - UV / 470 - Blue / 505 - Cyan / 530 - Green / 625 - Red / 850 - IR / 940 - IR |
The modular design of the LXB300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight LXB300 together.
The modular design of the ODLX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight ODLX300 together.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
The LC300 features 12 high-bright LEDs, operates in continuous mode, and includes a built-in constant-current driver. The LC300 is a more cost effective light due to the analog intensity control line not being included and not being capable of daisy-chaining to additional linear lights. NPN or PNP trigger signals can be used to control the on/off input of the light.
The Right Light for Your Application
