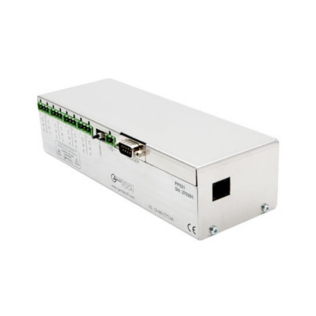

The PP800 models can be quickly configured using our free software which can be downloaded from this page, or for the PP820 Ethernet enabled controller range simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP800 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet or RS232 connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
| Parameter | PP820 |
|---|---|
| Output channels | 8 independent constant current output channels |
| Output current options | PP820: Controllable in steps of approx 100mA. Up to 20A pulsed or 2A continuous PP820C: Controllable in steps of approx 5mA. Up to 20A pulsed or 2A continuous PP821: Controllable in steps of approx 10mA. Up to 2A pulsed or 2A continuous PP821C: Controllable in steps of approx 0.5mA. Up to 2A pulsed or 2A continuous PP822: Controllable in steps of approx 25mA. Up to 5A pulsed or 2A continuous PP822C: Controllable in steps of approx 1.5mA. Up to 5A pulsed or 2A continuous |
| Trigger inputs | 8 opto-isolated digital inputs |
| Pulse width timing | From 1 microsecond to 300 milliseconds in steps of 1 microsecond. Timing repeatability 100 nanoseconds |
| Delay from trigger to pulse | From 4 microseconds to 300 milliseconds in steps of 1 microsecond. Timing repeatability 1 microsecond (depending on conditions) |
| Supply voltage | Unregulated or regulated 12V to 48V |
| Configuration | Ethernet, using TCP/IP or UDP. Configured using a web browser, Gardasoft’s configuration program or from the user’s application software |
| Dimensions | 215mm long by 54mm wide by 86mm high |
| Weight | 600g |
| Mounting | Panel mounting. Six M4 tapped holes |
| Parameter | PP860 |
|---|---|
| Output channels | 8 independent constant current output channels |
| Output current options | PP860: Controllable in steps of approx 100mA. Up to 20A pulsed or 2A continuous PP860C: Controllable in steps of approx 5mA. Up to 20A pulsed or 2A continuous PP861: Controllable in steps of approx 10mA. Up to 2A pulsed or 2A continuous PP861C: Controllable in steps of approx 0.5mA. Up to 2A pulsed or 2A continuous PP862: Controllable in steps of approx 25mA. Up to 5A pulsed or 2A continuous PP862C: Controllable in steps of approx 1.5mA. Up to 5A pulsed or 2A continuous |
| Trigger inputs | 8 opto-isolated digital inputs |
| Pulse width timing | From 1 microseconds to 300 milliseconds in steps of 1 microsecond. Timing repeatability 100 nanoseconds |
| Delay from trigger to pulse | From 4 microseconds to 300 milliseconds in steps of 1 microsecond. Timing repeatability 2 microsecond. |
| Supply voltage | Unregulated or regulated 12V to 48V |
| Control | RS232 commands at 115 Kbaud |
| Dimensions | 215mm long by 54mm wide by 86mm high |
| Weight | 600g |
| Mounting | Panel mounting. Six M4 tapped holes |
The RC range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the needs of perhaps having to use a bespoke DC power supply or heat sinking the controller. All RC models also include our SafeSense™ technology. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft RC Series controllers are therefore single channel current source devices.
The PP420 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP420 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.
The PP520 models can be quickly configured using our free software which can be downloaded from this page, or simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP520 has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.
The VC-16ES-S1 is a 16-channel LED light controller built for demanding machine vision and automation environments. It delivers stable constant-current control across all 16 independent channels, with high-speed strobe output up to 100 kHz and pulse current capability up to 20A ensuring precise, consistent illumination for high-accuracy inspection tasks. A wide input voltage range of 12–48VDC, combined with fine current adjustment and support for both continuous and high-current pulse operation, gives users the flexibility to meet a broad range of lighting requirements within a single unit.
Designed for seamless integration into existing automation infrastructures, the VC-16ES-S1 supports direct synchronization with camera triggers and PLC outputs, minimizing latency and ensuring reliable timing across the inspection cycle. Dual communication interfaces via Ethernet and RS232 provide compatibility with virtually any industrial control system, making setup and ongoing operation straightforward for engineering teams.
The controller is well-suited for applications across PCB and electronics inspection, semiconductor manufacturing, medical imaging, and packaging and sorting systems industries where illumination consistency directly impacts inspection integrity and throughput. Compatible with most industrial LED lighting, it is a dependable and versatile choice for high-speed inspection lines that demand both performance and ease of integration.
