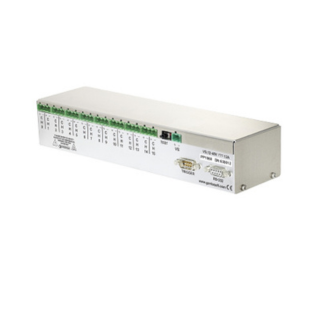

The PP1600 models can be quickly configured using our free software which can be downloaded from this page, or for the PP1620 Ethernet enabled controller range simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the PP1600 range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet or RS232 connection is disconnected. Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.
| PP1620 | PP1621 | PP1660 | PP1661 | |
|---|---|---|---|---|
| User Interface | Ethernet | RS232 | ||
| Output current | 20A pulsed 2A continuous Steps of 6mA | 2A pulsed 2A continuous Steps of 1mA | 20A pulsed 2A continuous Steps of 6mA | 2A pulsed 2A continuous Steps of 1mA |
| Trigger inputs | 8 opto-isolated digital inputs. Require 5V to 24V | |||
| Lighting pulse width timing | 1µs to 1ms in steps of 1µs, variation <1µs 1ms to 1 second in steps of 100µs, variation <5µs | |||
| Lighting delay timing | 4µs to 1ms in steps of 1µs, variation <5µs 1ms to 1 second in steps of 100µs, variation <10µs | |||
| Output voltage | 1.5V to [supply voltage] – 1V | |||
| Supply voltage | 12V to 48V regulated DC | |||
| Dimensions | 280mm by 54mm by 78mm | |||
| Weight | 700g | |||
| Mounting | Panel mount or optional DIN rail kit | |||
When combining lighting, cameras, proximity sensors and encoders to generate an automated solution, the CC320 Trigger Timing Controller is the single component for fast affordable integration. With 8 independent input channels, the controller can take a range of input signals from various components and use these to trigger events on any of the 8 independent output channels.
Gardasoft TR Series LED Controllers are a core component of a triniti Intelligent Lighting system. triniti is a new enabling technology from Gardasoft, which provides expert control, operational intelligence and full integration of Machine Vision lighting – all within a ‘plug & play’ environment.
The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
