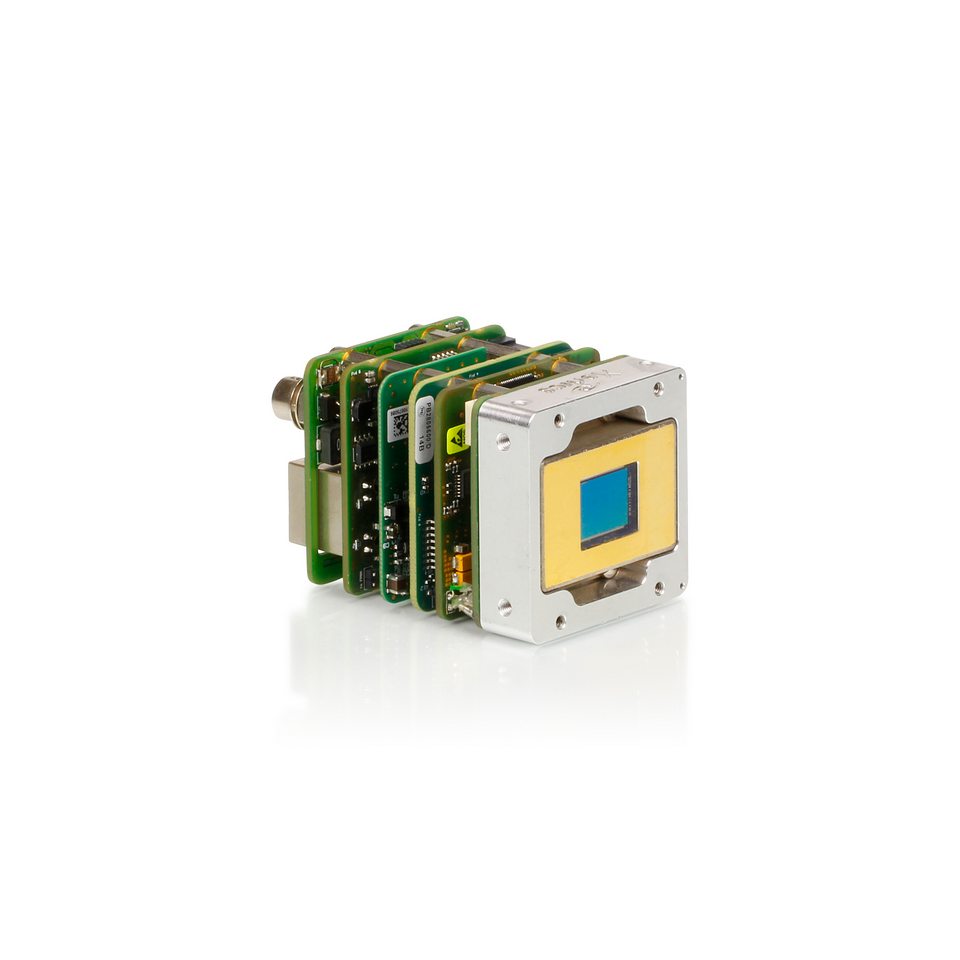

The XSW 640 series is based on an in-house developed, temperature stabilised InGaAs detector with a 640 x 512 pixel resolution.
The XSW 640 modules are offered with frame rate of up to 100 Hz. The module comes with either a CameraLink, GigE Vision or QTE Samtec interface and features low weight and power.
We offer a visible short-wave infrared (vSWIR) option for extended wavelength into the visible band.
Benefits & Features
• vSWIR optional
• Low noise, low dark current
• CameraLink, GigE Vision or QTE Samtec interfacing options
• Versatility with gain modes
| XSW 640 CL SWIR / vSWIR | XSW 640 GigE SWIR / vSWIR | XSW 640 16bitDV SWIR / vSWIR | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 45 x 45 x 56 | 45 x 45 x 65 | 45 x 45 x 52 |
| Weight [gr] - excluding lens | 129 | 165 | 122 |
| Optical interface [optional] | C-mount or M42 | C-mount or M42 | C-mount or M42 |
| Connector GigE | - | RJ-45 | - |
| Connector CameraLink | Standard SDR | - | - |
| Connector power | Hirose HR10-7R-SA[73] | Hirose HR10-7R-SA[73] | - |
| Connector trigger | SMA | SMA | - |
| Connector general I/O | - | - | QTE-020-03-L-D-A Samtec |
| XSW 640 CL SWIR / vSWIR | XSW 640 GigE SWIR / vSWIR | XSW 640 16bitDV SWIR / vSWIR | |
| Operating case temperature [°C] | From -40 to +70; also available in temperature range 0 - 50 | From -40 to +70; also available in temperature range 0 - 50 | From -40 to +70; also available in temperature range 0 - 50 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 | From -45 to +85 |
| Power consumption [W] | 2.8 [no TE cooler] | 4 [no TE cooler] | 2.5 [no TE cooler] |
| Power supply voltage | DC 12 V | DC 12 V | DC 12 V |
| Shock | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] |
| Vibration | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] |
| Regulatory compliance | RoHS | RoHS | RoHS |
| XSW 640 CL SWIR / vSWIR | XSW 640 GigE SWIR / vSWIR | XSW 640 16bitDV SWIR / vSWIR | |
| Image format [pixels] | 640 x 512 | 640 x 512 | 640 x 512 |
| Pixel pitch [µm] | 20 | 20 | 20 |
| Detector type | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC |
| Sensor temperature stabilization | TE cooler | TE cooler | TE cooler |
| Integration type | Snapshot - global shutter | Snapshot - global shutter | Snapshot - global shutter |
| Active area and diagonal [mm] | 12.8 x 10.24 [diagonal 16.4] | 12.8 x 10.24 [diagonal 16.4] | 12.8 x 10.24 [diagonal 16.4] |
| Optical fill factor | 100% | 100% | 100% |
| Spectral range [nm] | 900 - 1700 [SWIR]; 500 - 1700 [vSWIR] | 900 - 1700 [SWIR]; 500 - 1700 [vSWIR] | 900 - 1700 [SWIR]; 500 - 1700 [vSWIR] |
| Quantum efficiency | ~80% [typical peak value] | ~80% [typical peak value] | ~80% [typical peak value] |
| Gain modes | High Gain [HG] & High Dynamic Range [HDR] | High Gain [HG] & High Dynamic Range [HDR] | High Gain [HG] & High Dynamic Range [HDR] |
| Full well capacities [electrons] | 45k [HG] & 800k [HDR] | 45k [HG] & 800k [HDR] | 45k [HG] & 800k [HDR] |
| Read noise [electrons] | 120 [HG] & 500 [HDR] | 120 [HG] & 500 [HDR] | 120 [HG] & 500 [HDR] |
| Dark current [electrons/second] | <100k [at 288K sensor temp and 150 mV reverse bias]; For vSWIR: <200k | <100k [at 288K sensor temp and 150 mV reverse bias]; For vSWIR: <200k | <100k [at 288K sensor temp and 150 mV reverse bias]; For vSWIR: <200k |
| Read out mode | ITR & IWR | ITR & IWR | ITR & IWR |
| Pixel operability | >99% | >99% | >99% |
| Preconfigured exposure time range [ms] | 0.1 to 40 in HG; 0.1 to 20 in HDR | 0.1 to 40 in HG; 0.1 to 20 in HDR | 0.1 to 40 in HG; 0.1 to 20 in HDR |
| Max frame rate [Hz] (full frame) | 100 | 100 | 100 |
| Region of interest | Yes | Yes | Yes |
| Min region size [pixels] | 32 x 4 [step 16 x 4] | 32 x 4 [step 16 x 4] | 32 x 4 [step 16 x 4] |
| Max frame rate [Hz] [min region size] | >10000 | >10000 | >10000 |
| Analog-to-Digital (ADC) [bits] | 14 | 14 | 14 |
| Command and control | CameraLink | GigE Vision | QTE Samtec |
| Digital output format | CameraLink [16 bit] | GigE Vision [16 bit] | Digital Video [16 bit] |
| Trigger | In or out via SMA or in via CL-CC1 [Configurable] | In or out via SMA [Configurable] | In or out via QTE Samtec [Configurable] |

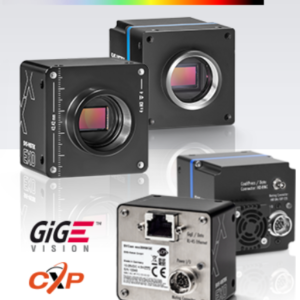

Our ultraviolet cameras are based on the proven design of the FXO series. The fast CoaXPress-12 interface provides outstanding performance in terms of ultra-low trigger latency, faster frame rate and constant data rate. The 10GigE interface option is an economical, highly stable alternative with advantages for long data lines up to 100m. Sony Pregius UV sensors combine high resolution, high dynamic range and superior sensitivity in the wavelength range of 200 – 400 nm.
Our ultraviolet cameras are optimized for deployment in industrial automation processes thanks to advanced signal voltages, temperature stability, I/O control, integrated strobe controller, and feature-rich firmware.
Technical highlights:
Machine vision and deep learning edge IoT device
Matrox® Iris GTX is the next evolution of smart cameras from Matrox Imaging. Offering higher resolution sensors and substantially more processing power than its immediate predecessor, Matrox Iris GTX provides exceptional performance for a compact all-in-one vision system. Paired with flowchart-based Matrox Design Assistant® X1 software, engineers and technicians can quickly configure and deploy machine vision to the Matrox Iris GTX smart cameras. Video capture, analysis, classification, location, measurement, reading, verification, communication, and I/O operations—as well as a web-based operator interface—are all set up within the same software. Matrox Iris GTX smart cameras are model edge IoT devices, performing data acquisition and analytics, and providing results nearest to the manufacturing

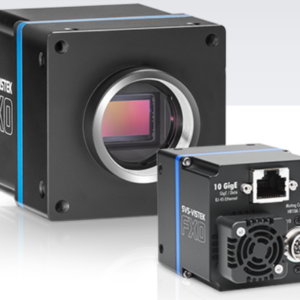

The FXO stands for excellent image quality. The fast CoaXPress-12 interface gives the camera outstanding properties in terms of trigger latency and constant data rate.
An excellent, low-noise image with high dynamics is complemented by a comprehensive feature set. The Sony Pregius S sensors used are characterized by high light sensitivity and best homogeneity. Signal voltages, temperature resistance, I/O control, integrated strobe controller and firmware features are geared towards applications in demanding industrial automation.
Technical highlights:

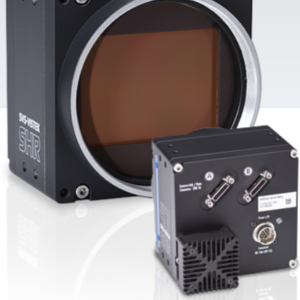

10 GigE and Dual GigE Vision are the most easy way to profit of high interface bandwidth together with the advantages of standard networking technologies. An advantage is the reliable, cost-effective transmission of the image data over a distance of more than 100 m with standard network technology. The 10GigE and GigE cameras of the HR series impress with their housing concept, the wide-range lenses and the unique picture quality. The clean design according to well established standards like GigE Vision, 10 GigE Vision and GenICam ensure rapid integration into the final application.
