Showing 17–32 of 667 results

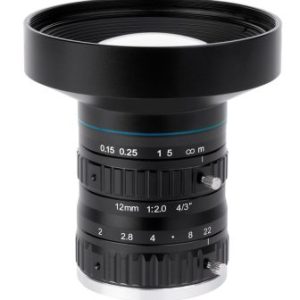

Opto Engineering – Macro & Fixed focal[EN10MP SERIES]

EN10MP Series is a series of powerful fixed focal length lenses designed for the high sensitivity and precise high-speed imaging of the new 1.1″ and 4/3″ Sony Pregius sensors.

The ever-increasing complexity of vision tasks, requires lenses with extremely competitive performance.
The EN10MP series are designed to meet the high accuracy coupled with large format for high resolution sensors.

Opto Engineering^® has wide experience in different industries, our global sales team would support you on provide the most suitable machine vision components based on your needs.

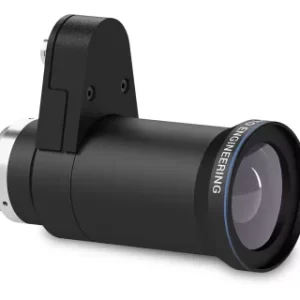

Opto Engineering – Macro & Fixed focal[EN12MP SERIES]

The EL12MP series features 12 MP fixed focal length lenses optimized for sensors up to 1.1″ with integrated liquid lens technology.

The high-resolution optical design combined with a Optotune liquid lens allows autofocus within a few milliseconds and acquisition of high-quality images.

These lenses are ideal for high-speed inspection that require quick, precise and remote focusing at different working distances and high-resolution images.

Sectors that can greatly benefit from this innovative solution are, for example, the food and beverage, pharmaceutical, cosmetics, and electronics industries.
Moreover, EL12MP lenses are ideal for guiding robotic arms used for applications such as fast pick-and-place and bin-picking.

The EL12MP series ensures high repeatability and focus stability thanks to a constant temperature calibration.

Maximum performance can be obtained by combining EL12MP lenses with ITALA G.EL cameras: the built-in liquid lens driver and the autofocus functionality allow time savings as the camera is able to find the best focusing condition of the lens automatically and quickly without direct operator intervention and without the need for an external controller.

Opto Engineering – Macro & Fixed focal[EN2MP SERIES]

EN2MP series is a series of fixed focal length lenses designed for use in factory automation. Its high quality to price ratio allows simple vision tasks to be achieved easily and efficiently. The lenses are designed to withstand harsh working environments.

The lenses are suitable for a wide range of vision tasks. E.g. Pattern matching, positioning, barcode recognition, packaging inspection, presence/absence, robot guide, pick and place, orientation check, 3D measurement…etc.

With many years of experience in the machine vision industry, Opto Engineering® can provide bundle solutions including a suitable lens, camera and illuminator that are optimized for your specific application requirements.

Opto Engineering – Macro & Fixed focal[EN5MP SERIES]

EN5MP series is a series of high resolution fixed focal length lenses designed for use in machine vision applications. A wide range of focal lengths provides more choices of field of view and working distance for many different system configurations.

Together with high resolution cameras and proper illumination, EN5MP lenses allow you to design high resolution vision systems to solve complex or critical tasks. E.g. OCR/OCV, robot guidance…etc. and for the inspection of critical samples like connectors, electronic components, vials…etc.

Opto Engineering® can save you time and money by providing bundle solutions including a suitable lens, camera and illuminator, optimized for your applications requirements and type of samples.

Opto Engineering – Macro & Fixed focal[EN5RT SERIES]

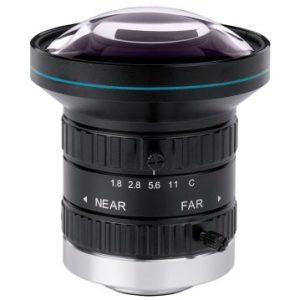

Opto Engineering – Macro & Fixed focal[EN8MP SERIES]

EN8MP Series is a series of fixed focal length lenses that has a very compact design for a high-resolution 1” lens. Its anti-shock design responds to current market needs in factory automation.

While the accuracy request increased in the industry, the resolution and the size of the sensors are increasing, a correspondent high-resolution lens for larger format is needed in order to accomplish much more complex vision tasks. Together with ITALA cameras, the EN8MP series can resolve high-resolution inspections such as hairline defects on reflective material, printing inspection and also collaborative robot guide…etc

Opto Engineering^® has wide experience in different industries, our global tech support team would support you on provide the most suitable machine vision components based on the customer’s need including where the high resolution requires.

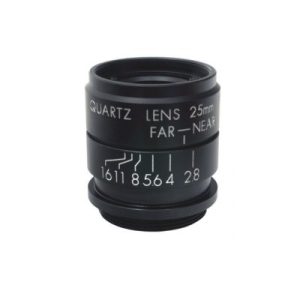

Opto Engineering – Macro & Fixed focal[ENUV2M SERIES]

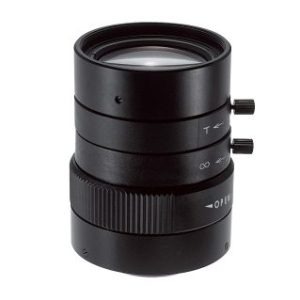

Opto Engineering – Macro & Fixed focal[ENVF SERIES]

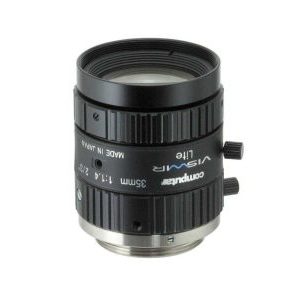

Opto Engineering – Macro & Fixed focal[ENVIS-SWIRMP SERIES]

Opto Engineering – Macro & Fixed focal[MC SERIES]

MC series macro lenses are designed to capture images of small objects when both very good resolution and nearly zero distortion are needed.

Small object fields of view are often observed by means of long focal length lenses equipped with an additional spacer, used to adjust the working distance.

Unfortunately, this approach leads to several problems like high image distortion, resolution loss (especially at the corners), poor depth of field and chromatic effects, thus making this method not suitable for good imaging neither compatible with accurate measurement requirements.

All these problems can be overcome by using the MC lenses, specifically designed for macro imaging. MC optics are compact and cost-effective optics providing very high image resolution. A very low optical distortion makes these lenses perfectly suitable for precise dimensional measurement applications.

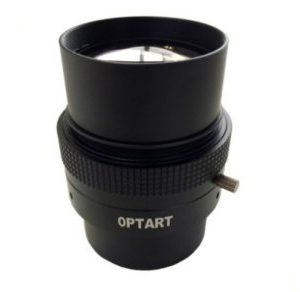

Opto Engineering – Macro & Fixed focal[MC16K SERIES]

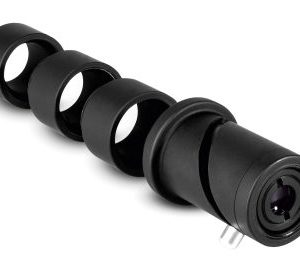

Opto Engineering – Macro & Fixed focal[MC3-03X SERIES]

The MC3-03X is a multi-configuration macro lens suitable for the inspection of objects whose size varies from a few millimeters to some centimeters. Magnification and focus can be tuned by adjusting a lockable rotating knob.

The magnification range of the lens can be selected by means of a set of extension tubes, included in the product package; this feature makes this component ideal for prototyping purposes and for machine vision applications requiring flexibility. Since the working F-number increases with magnification, the optimum combination of field depth, image resolution and brightness is maintained in any lens configuration.

Moreover, the optical distortion approaches zero at any magnification, making this lens perfectly suitable for measurement applications.

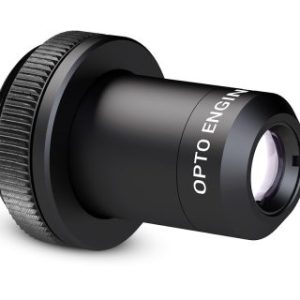

Opto Engineering – Macro & Fixed focal[MC3M SERIES]

MC3M series is a family of macro lenses designed to capture images of small objects when high resolution and nearly zero distortion are required.

Optimized for 1.1″ sensors, MC3M macro lenses are specifically designed for macro imaging to get the best out of close-range inspections without compromising image distortion, resolution, depth of field, color fidelity, and measurement accuracy.

With magnifications ranging from 0.1x to 6x, these macro lenses are ideal for applications such as positioning/inspection/measurement of objects where a high depth of field is not required (bent metal parts, silicon wafers, quad flat no-lead (QFN) packages, etc.).

Their compact design and high quality/price ratio make them suitable for industrial environments with space restrictions.

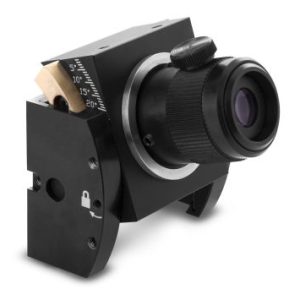

Opto Engineering – Macro & Fixed focal[MCSM1-01X SERIES]

MCSM1-01X is a variable macro lens expressly designed for 3D measurement and imaging applications where the object plane is not perpendicular to the optical axis. A precise built-in adjustment mechanism allows the lens to accurately meet the Scheimpflug condition and to image tilted planes in perfect focus. This lens offers a wide range of magnifications and angles of view. It can be interfaced with any structured light source to build up extremely accurate 3D imaging systems. Image sharpness is maintained even when the lens is tilted by a wide-angle, since the Scheimpflug adjustment tilts around the horizontal axis of the detector plane. The tiltable mount is compatible with any C-mount camera.

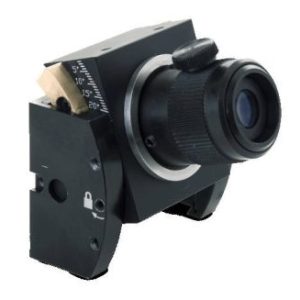

Opto Engineering – Macro & Fixed focal[MCSM3M1-025X SERIES]

MCSM3M1-025X is a variable macro lens for sensors up to 1.1” specifically designed for 3D measurement and imaging applications where the object plane is not perpendicular to the optical axis. A precise built-in adjustment mechanism allows the lens to accurately meet the Scheimpflug condition and to image tilted planes in perfect focus. This lens offers a wide range of magnifications and angles of view. It can be interfaced with any structured light source to build up extremely accurate 3D imaging systems. Image sharpness is maintained even when the lens is tilted by a wide-angle, since the Scheimpflug adjustment tilts around the horizontal axis of the sensor plane. The tiltable mount is compatible with any C-mount camera.

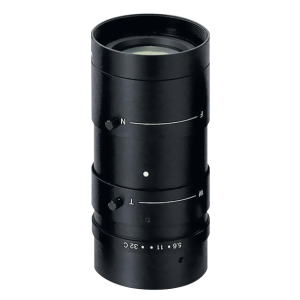

Opto Engineering – Macro & Fixed focal[MCZM SERIES]
