Opto Engineering – Telecentric [TC2HMR Series]

TC2MHR series features high-resolution telecentric lenses designed for sensors up to 1″ and is the perfect choice for advanced metrology applications. Our TC2MHR series ensures unmatched resolution, low distortion and homogeneous image quality while offering the best performance-to-price ratio.

Thanks to their compact and robust design, TC2MHR lenses can be easily integrated in industrial environments. Additionally, the set screws positioned in the eyepiece allow to easily adjust the camera phase.

Opto Engineering – Telecentric [TC3MHR Series]

TC3MHR series features high-resolution telecentric lenses designed for sensors up to 1.1″ and is the perfect choice for advanced metrology applications. Our TC3MHR series delivers unmatched resolution thanks to the low F# as well as low distortion and homogeneous image quality while offering the best performance-to-price ratio.

The compact and robust design of TC3MHR lenses allows easy integration in industrial environments. Additionally, the camera phase can be easily adjusted by simply loosening the set screws positioned in the eyepiece.

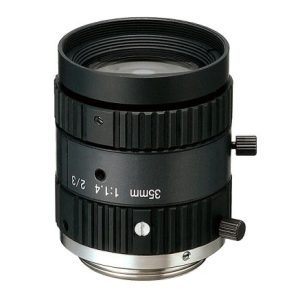

Opto Engineering – Macro & Fixed focal[EN-2RT SERIES]

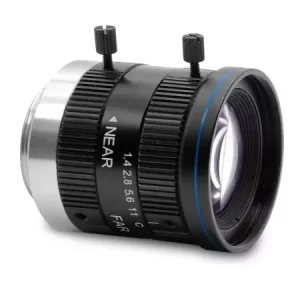

Opto Engineering – Macro & Fixed focal[EN2MP SERIES]

EN2MP series is a series of fixed focal length lenses designed for use in factory automation. Its high quality to price ratio allows simple vision tasks to be achieved easily and efficiently. The lenses are designed to withstand harsh working environments.

The lenses are suitable for a wide range of vision tasks. E.g. Pattern matching, positioning, barcode recognition, packaging inspection, presence/absence, robot guide, pick and place, orientation check, 3D measurement…etc.

With many years of experience in the machine vision industry, Opto Engineering® can provide bundle solutions including a suitable lens, camera and illuminator that are optimized for your specific application requirements.

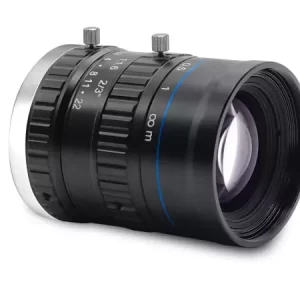

Opto Engineering – Macro & Fixed focal[EN5MP SERIES]

EN5MP series is a series of high resolution fixed focal length lenses designed for use in machine vision applications. A wide range of focal lengths provides more choices of field of view and working distance for many different system configurations.

Together with high resolution cameras and proper illumination, EN5MP lenses allow you to design high resolution vision systems to solve complex or critical tasks. E.g. OCR/OCV, robot guidance…etc. and for the inspection of critical samples like connectors, electronic components, vials…etc.

Opto Engineering® can save you time and money by providing bundle solutions including a suitable lens, camera and illuminator, optimized for your applications requirements and type of samples.

Opto Engineering – Telecentric [TC CORE PLUS SERIES]

TC CORE PLUS series is a range of large FOV telecentric lenses for area scan cameras, specifically designed for the latest generation 1/1.8” and 2/3” CMOS sensors. Their opto-mechanical design is ideal to inspect large objects in a reduced space.

The lenses from the TC CORE PLUS series are up to 45% shorter than other telecentric lenses available on the market.

Their patented optical design, inspired by catadioptric telescopes, allows for large FOV imaging while keeping the overall footprint compact.

The length and working distance of a telecentric lens strongly impacts the size of a vision system. This is especially critical when a large FOV telecentric lens is used with a telecentric illuminator, as the overall system dimensions are doubled. For this reason, the working distance of TC CORE PLUS lenses has been optimized to make the vision system as compact as possible. TC CORE PLUS lenses feature a built-in mounting flange for easy mounting without additional clamps, making their integration easy and cost-effective.

Opto Engineering – Telecentric [TC CORE SERIES]

TC CORE bi-telecentric lenses for sensors up to 2/3” feature a truly revolutionary ultra compact opto-mechanical design.

These lenses deliver high-end optical performances and at the same time are up to 70% smaller than other double-sided telecentric lenses on the market, thus allowing to significantly downsize a vision system.
The unique shape has been expressly developed for maximum mounting flexibility.

TC CORE lenses can be mounted in different directions using any of the 4 sides even without clamps, allowing you to cut the system’s cost, and can be easily fitted or retrofitted even into very compact machines.

TC CORE bi-telecentric lenses can also be coupled with the new ultra compact LTCLHP CORE series telecentric illuminators to build super small yet extremely accurate measurement systems.

Opto Engineering – Telecentric [TC10M SERIES]

TC10M series features high-resolution telecentric optics with an image circle of 28 mm that perfectly fit cameras with large sensors, up to APS-C format. These lenses also feature a compact and robust design that is suitable for industrial environments.

Their excellent optical performance and high resolution make them ideal for several applications such as flat panel display checks, high-precision measurement of mechanical parts, semiconductor and electronics inspection.

Opto Engineering – Telecentric [TC12M SERIES]

TC12M series features high-resolution telecentric lenses for sensors with an image circle up to 33.5 mm. They perfectly fit cameras with large sensors, up to APS-H format.

TC12M series lenses feature a compact and robust design that makes them ideal for various industrial applications.

Opto Engineering – Telecentric [TC1MHR CORE SERIES]

TC1MHR CORE series is a range of ultra-compact telecentric lenses tailored for high-resolution sensors up to 1/1.2”. TC1MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique opto-mechanical design, these lenses offer very high resolution, low F#, nearly zero distortion and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.

Thanks to the M6 threads located on multiple sides Opto Engineering® TC1MHR CORE lenses can be mounted in several orientations, even without clamping mechanics. For maximum flexibility, a special front mounting clamp is also available.

Opto Engineering – Telecentric [TC2MHR CORE SERIES]

TC2MHR CORE series features ultra-compact telecentric lenses tailored for high-resolution sensors up to 1”. TC2MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique opto-mechanical design, these lenses offer very high resolution, nearly zero distortion and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.

Our compact telecentric lenses can be mounted in several orientations thanks to the M6 threads located on multiple sides, even without clamping mechanics. For maximum flexibility, a special front mounting clamp is also available.

Opto Engineering – Telecentric [TC3MHR CORE SERIES]

TC3MHR CORE series is a range of ultra-compact telecentric lenses tailored for high-resolution sensors up to 1.1”. TC3MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique opto-mechanical design, these lenses offer very high resolution, low F#, nearly zero distortion and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.

Thanks to the M6 threads located on multiple sides Opto Engineering® TC3MHR CORE lenses can be mounted in several orientations, even without clamping mechanics. For maximum flexibility, a special front mounting clamp is also available.

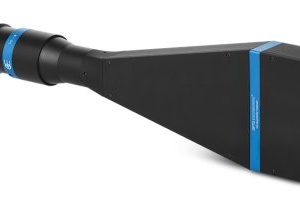

Opto Engineering – Telecentric [TC4K SERIES]

TC4K series telecentric lenses have been designed for measurement applications using line scan cameras with a detector size up to 28.7 mm (e.g. 4096 pixels with pixel size 7 μm).

Dimensional constraints are often a major issue when designing image scanning systems where the sample or the camera itself must be moved: TC4K series is the Opto Engineering® solution for applications and machines with tight dimensional constraints. Compatible LTCL4K illuminators with matching flat design and dedicated accessories allow for optical combinations that fit most geometrical measurement configurations.

The TC4K series feature standard F or M42 mount to fit common line scan camera interfaces; additional mounts are available upon request. Moreover, the lens-camera interface provides both fine detector phase adjustment and a precise focusing mechanism. Detector phase adjustment allows to precisely position the linear FOV at 90° from the object movement direction.

Opto Engineering – Telecentric [TC4MHR CORE SERIES]

TC4MHR CORE series features ultra-compact telecentric lenses tailored for high-resolution sensors up to 4/3”. TC4MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique opto-mechanical design, these lenses offer very high resolution, nearly zero distortion and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.

Opto Engineering – Telecentric [TC4MHR SERIES]

TC4MHR series features high-resolution telecentric lenses designed for sensors up to 4/3′′ and is the perfect choice for advanced metrology applications. Our TC4MHR series ensures unmatched resolution, low distortion and homogeneous image quality while offering the best performance-to-price ratio.

TC4MHR lenses feature a compact and robust design that allows easy integration in industrial environments. Additionally, the set screws positioned in the eyepiece allow to easily adjust the camera phase.

Opto Engineering – Telecentric [TCBENCH CORE SERIES]

TCBENCH CORE series is a range of complete optical systems offering superior performances needed for highly demanding measurement applications in a super compact assembly.

The benches come pre-mounted and pre-aligned, ensuring the best accuracy that a telecentric measurement system can deliver.

Each TCBENCH CORE integrates:

1 TC CORE bi-telecentric lens for 2/3” sensors
1 LTCLHP CORE telecentric illuminator (green)
1 CMPTCR base-plate

TCBENCH CORE systems deliver the same optical performances as our TCBENCH systems in a very reduced space.
