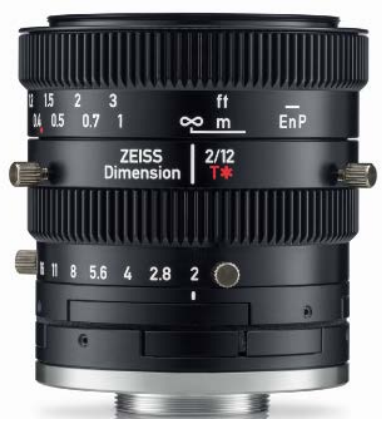

ZEISS Dimension 2/12

The new ZEISS Dimension® family meets the highest demands for industrial applications. The lenses developed for use with a C-mount are designed for image sensors up to a size of 4/3” and offer exceptional image quality in a compact, lightweight and rugged aluminum housing. The ZEISS Dimension® family consists of six focal lengths ranging from 8 to 50 millimeters. Almost all ZEISS Dimension lenses have the same outer diameter for reliable planning when mounting them in production facilities.

Features:
• fast f/2 aperture
• excellent image quality, leading to highest data precision over the complete image field
• for industrial cameras up to sensor sizes of 4/3’’
• robust full-metal construction made of aluminium
• small and compact
• possibility to adjust the back focal distance to compensate for tolerances of camera bayonets
• possibility for azimuthal adjustment ensures best possible readability of scales
• fixable focus and aperture settings
• optimized spectral transmission in VIS and near IR range through ZEISS T* coating
