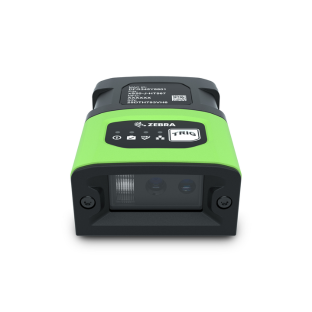

Zebra VS20
Machine Vision Smart Sensor

Easily Integrate Machine Vision Into Your Network
The compact VS20 fits wherever you need to perform essential quality inspections. Multiple connectivity options easily integrate into your PLC or Host network, enabling your primary machine vision applications to feed all the processes that drive your business. With Zebra Aurora’s powerful software platform, you can easily set up, deploy and run the VS20 — and all other Zebra Machine Vision Smart Cameras and Fixed Industrial Scanners. Plus, you can upgrade to more advanced features with the simple purchase of a software license.

Specifications for VS20

ModelView / MPLensFeaturesConnectivityLightingDecoder
VS20-SR10S2-2C00WStandard Range, 1.0 MPN/ASmart Ethernet Sensor, Adjustable Focus, Sensor ToolsetEthernet + Serial & Industrial ProtocolsRed—
VS20-SR10S2-3C00WStandard Range, 1.0 MPN/ASmart Ethernet Sensor, Adjustable Focus, Sensor ToolsetEthernet + Serial & Industrial ProtocolsWhite—
VS20-SR10S3-2C00WStandard Range, 1.0 MPN/ASmart Ethernet Sensor, Adjustable Focus, Sensor Toolset w/ Fast 2D DecodeEthernet + Serial & Industrial ProtocolsRedFast 2D
VS20-SR10S3-3C00WStandard Range, 1.0 MPN/ASmart Ethernet Sensor, Adjustable Focus, Sensor Toolset w/ Fast 2D DecodeEthernet + Serial & Industrial ProtocolsWhiteFast 2D
VS20-SR10P2-2C00WStandard Range, 1.0 MPN/ASmart PoE Sensor, Adjustable Focus, Sensor ToolsetEthernet with PoE + Serial & Industrial ProtocolsRed—
VS20-SR10P2-3C00WStandard Range, 1.0 MPN/ASmart PoE Sensor, Adjustable Focus, Sensor ToolsetEthernet with PoE + Serial & Industrial ProtocolsWhite—
VS20-SR10P3-2C00WStandard Range, 1.0 MPN/ASmart PoE Sensor, Adjustable Focus, Sensor Toolset w/ Fast 2D DecodeEthernet with PoE + Serial & Industrial ProtocolsRedFast 2D
VS20-SR10P3-3C00WStandard Range, 1.0 MPN/ASmart PoE Sensor, Adjustable Focus, Sensor Toolset w/ Fast 2D DecodeEthernet with PoE + Serial & Industrial ProtocolsWhiteFast 2D
Select options below to view price
Clear
Product price
Additional options total:
Order total:
Add to Proposal
Related Products
ISVI IC-C18N-CXP
ISVI IC-C18N-CXP

Key Features:

  • • 18 Mega Pixels @ 24 fps
  • • Resolution 4912 x 3684
  • • 3usec~10sec Exposure
  • • Color
  • • Electronic Rolling Shutter
  • • True 8 Bit Data Output
  • • CXP-6, 1 LINK, 6.25Gbps transfer
  • • Continuous, Trig Timed, Width
  • • C-Mount / CS-Mount
  • • GenICam, PoCXP Support
SVS-VISTEK HR<br>[CameraLink]
SVS-VISTEK HR
[CameraLink]

hr camera link 80bit

HR Camera Link

Excellent Performance, Flexibility And Cost Efficiency

The HR series with Camera Link Interface combines the advantages of this interface, the performance, with safe and easy handling.

High Data Rates And Highest Resolutions

Highest resolutions at high frame rates for industrial cameras is the core area of the HR series. The HR series impresses with a wide range of features:

  • User defined defect pixel correction
  • LUT, gamma, offset
  • Binning (not for: hr49, hr65) and ROI
  • Integrated multi-channel LED strobe controller
  • Industrial TTL-24V I/O interface with SafeTrigger, programmable logic functions, sequencers and timers, RS232
  • Power over Camera Link (PoCL)
  • Ideal for cleanrooms

Camera Link offers high data rates, deterministic time response and very direct access to the image sensor. This enables settings and operating modes that are not available with other interfaces, even for industrial cameras with the highest resolutions.

HR65 back Camera Link sRGB

Areas Of Application

The high resolutions recommend the HR for demanding measurement technology.

The main areas of application are semiconductor, pharmaceutical and beverage technology as well as pressure inspection.

Resolution25-65 MP
Speed13-32 fps
ISVI IC-X25B-CL
ISVI IC-X25B-CL

Having superb image quality, the all-new IC-X25B-CL provides the best performance-for-value ratio of all of ISVI’s new compact cameras. Using its Full Configuration Camera Link interface it achieves a frame rate of 30Hz. Its compact size and wide selection of standard lens mounts makes it a popular choice for users requiring a high-resolution camera but do not need the high frame rates of our CXP cameras.

Key Features:

  • • 25 Mega Pixels @ 30 fps
  • • Resolution 5120 x 5120
  • • Global Shutter 1usec~10sec
  • • Optimized PRNU / DP Correction
  • • 4 User Areas for Calibration Storage
  • • True 8 Bit Data Output
  • • 8/10 Tap Full Configuration
  • • F / M42 / M58 / M72 / LM-Mount
  • • Compact Size – 82 x 82 x 83.7mm
The Imaging Source 37 A Series - USB 3.1 Monochrome
The Imaging Source 37 A Series – USB 3.1 Monochrome

Features:

● Reversible Type-C port connection
● Sony STARVIS and Pregius CMOS sensors
● Single-board cameras
