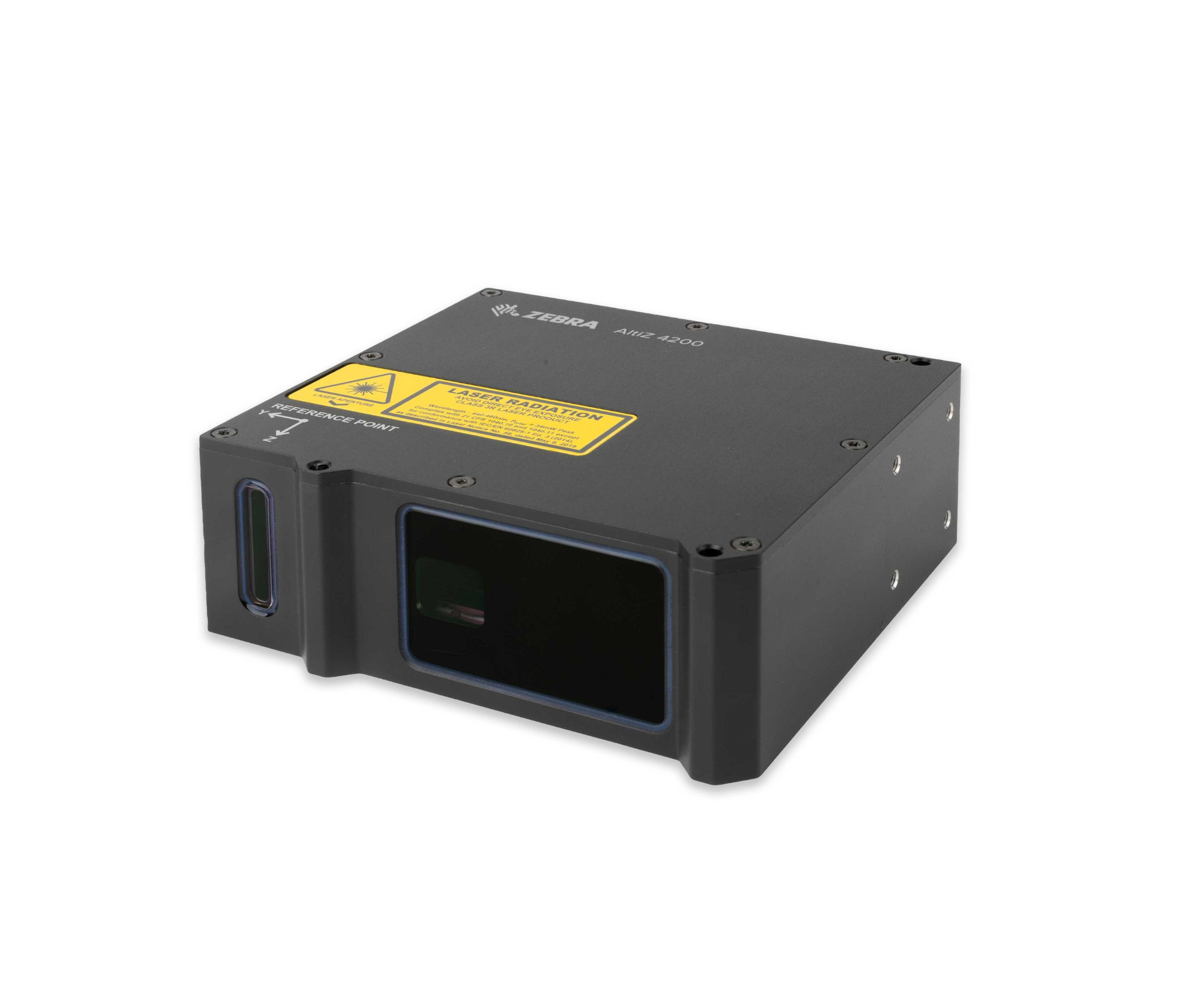

AltiZ 4200 3D profilers deliver tight field of views in a compact form factor with ultra-high resolution, significantly more data points per profile and faster capture speeds for challenging electronics and automotive manufacturing inspection applications
| Feature | AZ2S2SB | AZ2S3SB | AZ2S5SB |
|---|---|---|---|
| Product family | AltiZ 4200 | AltiZ 4200 | AltiZ 4200 |
| Camera design | Single camera | Single camera | Single camera |
| Laser color | Blue (450 nm) | Blue (450 nm) | Blue (450 nm) |
| Working distance | 60 mm | 100 mm | 100 mm |
| Z range | 20 mm | 45 mm | 70 mm |
| X FoV — near | 26 mm | 43 mm | 70 mm |
| X FoV — far | 32 mm | 58 mm | 92 mm |
| X resolution | 6–7 µm | 10–13 µm | 16–22 µm |
| Points per profile | 4,224 | 4,224 | 4,224 |
| Max profile rate | Up to 14,000/s | Up to 14,000/s | Up to 14,000/s |
| Network interface | 2.5 GbE | 2.5 GbE | 2.5 GbE |
| Data interface | GigE Vision 2.2 + GenDC 1.1 | GigE Vision 2.2 + GenDC 1.1 | GigE Vision 2.2 + GenDC 1.1 |
| 3D data output | Profiles · Depth Maps · Point Clouds | Profiles · Depth Maps · Point Clouds | Profiles · Depth Maps · Point Clouds |
| Digital I/Os | 4× in / 2× out (24 V isolated) | 4× in / 2× out (24 V isolated) | 4× in / 2× out (24 V isolated) |
| Power | 24 Vdc or PoE | 24 Vdc or PoE | 24 Vdc or PoE |
| Ingress protection | IP67 | IP67 | IP67 |
| Operating temperature | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C |
| Dimensions (L×H×W) | 133×125×51 mm | 133×125×51 mm | 133×125×51 mm |
| Weight | 1,550 g | 1,550 g | 1,550 g |
| Software compatibility | Aurora Design Assistant · Aurora Vision Studio | Aurora Design Assistant · Aurora Vision Studio | Aurora Design Assistant · Aurora Vision Studio |
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye Pro M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 1000–2000 mm
Near FOV: 800 × 450 @ 1.0 m
Far FOV: 1500 × 890 @ 2.0 m
Resolution: 1920 × 1200
Megapixels: 2.3 MP
Z Repeatability: 0.2 mm @ 2 m
VDI/VDE Accuracy: 0.2 mm @ 2 m
Typical Capture Time: 0.3-0.6 s
Baseline: About 270 mm
Dimensions: About 353 mm × 57 mm × 100 mm
Weight: About 1.9 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC, 3.75 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
JMGV_VD100 active structured light binocular camera is a stereo vision camera deeply customized and developed according to the needs of robots and industrial stereo vision application scenarios. The industry-leading 940nm infrared structured light speckle projector is used to supplement light and texture, and OV9282 global shutter sensor has the highest tolerance in the industry for motion speed and environment. It can be widely used in industrial sorting, AGV and service robot obstacle avoidance, high precision visual positioning and other scenarios.
Product Features:
• 640×400@30fps, high resolution and frame rate, widely used in various scenarios.
• Industry leading wide FOV92.5°x80.5°x55.2° (DxHxV) for wider sensing range.
• 940nm infrared structured light projector has extremely high environmental tolerance and
can be used indoor and outdoor, dark and light environments. Compared with structured
light and TOF solutions, the material of detected object has a wider applicable range.
• Adopts a global shutter sensor, which can be adapted to high speed and dark light
environments.
• Dedicated ASIC binocular depth calculation chip, which consumes low power and does not
occupy the computing power of the host computer;
• Type C USB 2.0 interface with locking function, high reliability and good applicability.
• Ultra-low noise, very suitable for obstacle avoidance applications
• Mature Linux and ROS 2 development SDK;
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye Log M can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 800–2000 mm
Near FOV: 520 × 390 @ 0.8 m
Far FOV: 1410 × 960 @ 2.0 m
Resolution: 1280 x 1024
Megapixels: 1.3 MP
Z Repeatability: 0.3 mm @ 2 m
VDI/VDE Accuracy: 0.3 mm @ 2 m
Typical Capture Time: 0.3–0.5 s
Baseline: About 280 mm
Dimensions: About 387 mm × 72 mm × 130 mm
Weight: About 2.4 kg
Operating Temperature: 0-45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC, 3.75 A
Safety & EMC: CE/FCC/VCCI
Light Source: Blue LED (459 nm, RG2)
IP Rating: IP65
Cooling: Passive
Palm-sized with high-qualty 3D imaging. Ideal for precision-required on-arm robotic applications.
Fast acquisition | High Flexibility | Industrial suitability | Easy integration
Mech-Eye LSR L can generate complete, detailed and accurate point cloud for objects with complex structures. High flexibility, well suited for demanding applications in space saving environment. Aluminium housing, fully enclosed, IP65, dust and water proof, vibration resistant, EMC/EMI approved. Suitable for industrial use, CE, FCC, VCCI & RoHS certified.
Specifications:
Optimal Working Distance: 1200–3000 mm
Near FOV: 1200 × 1000 @ 1.2 m
Far FOV: 3000 × 2400 @ 3.0 m
Resolution: Depth Map：2048 × 1536, RGB：4000 x 3000 OR 2000 x 1500
Megapixels: 3.0 MP
Z Repeatability: 0.5 mm @ 3 m
VDI/VDE Accuracy: 1.0 mm @ 3 m
Typical Capture Time: 0.5–0.9 s
Baseline: About 380 mm
Dimensions: About 459 mm × 77 mm × 86 mm
Weight: About 2.9 kg
Operating Temperature: -10–45 ℃
Communication Interface: Gigabit Ethernet
Input: 24V DC,1.5 A
Safety & EMC: CE/FCC/VCCI/UKCA/KC/ISED/NRTL
Light Source: Red laser (638 nm, Class 2)
IP Rating: IP65
Cooling: Passive
