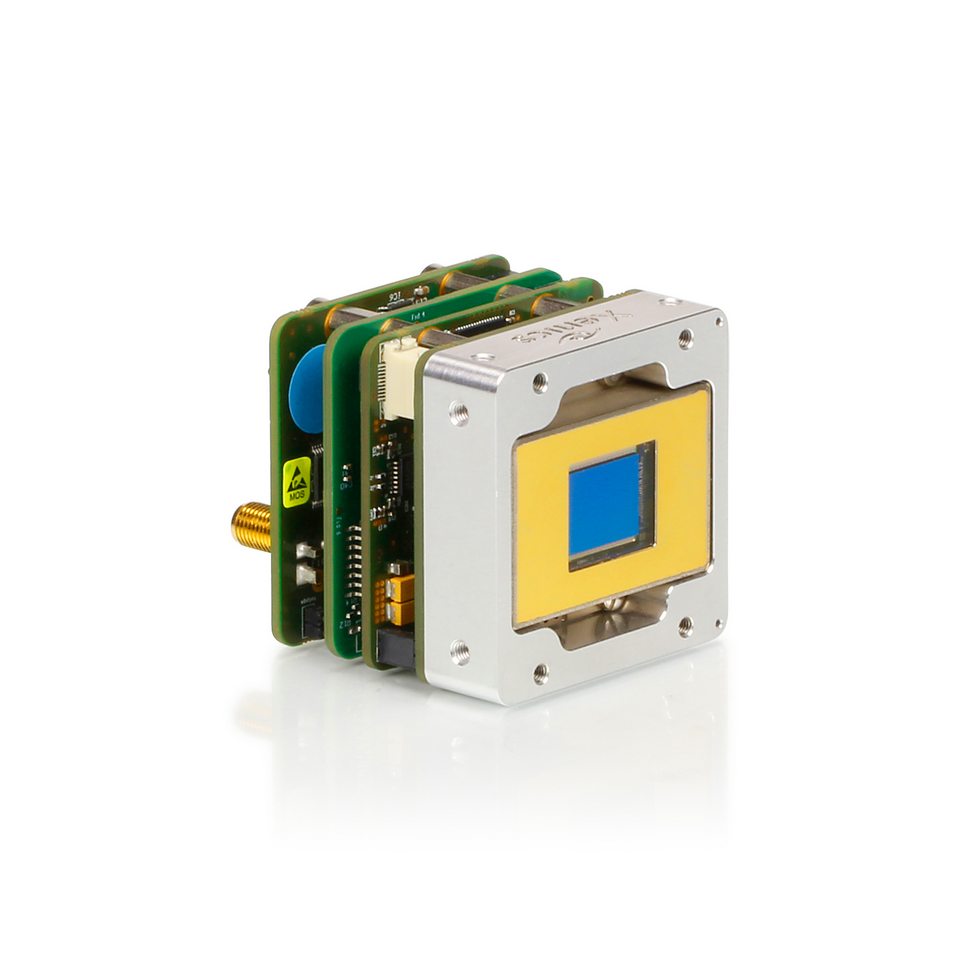

The XSW 320 series is based on an in-house developed, temperature stabilised InGaAs detector with a 320 x 256 pixel resolution.
The XSW 320 camera modules are offered with frame rates of up to 400 Hz.
The camera modules come with either a CameraLink, GigE Vision or QTE Samtec interface and features low weight and power.
Benefits & Features
• Flexible and easy-to-use
• CameraLink, GigE Vision, QTE Samtec interfacing options
• Low dark current
• Small SWIR area-scan camera module
| XSW 320 CL 100 / 400 | XSW 320 GigE 100 / 400 | XSW 320 16bitDV 100 / 400 | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 45 x 45 x 56 | 45 x 45 x 65 | 45 x 45 x 52 |
| Weight [gr] - excluding lens | 129 | 165 | 122 |
| Optical interface [optional] | C-mount or M42 | C-mount or M42 | C-mount or M42 |
| Connector GigE | - | RJ-45 | - |
| Connector CameraLink | Standard SDR | - | - |
| Connector power | Hirose HR10-7R-SA[73] | Hirose HR10-7R-SA[73] | - |
| Connector trigger | SMA | SMA | - |
| Connector general I/O | - | - | QTE-020-03-L-D-A Samtec |
| XSW 320 CL 100 / 400 | XSW 320 GigE 100 / 400 | XSW 320 16bitDV 100 / 400 | |
| Operating case temperature [°C] | From -40 to +70; also available in temperature range 0 - 50 | From -40 to +70; also available in temperature range 0 - 50 | From -40 to +70; also available in temperature range 0 - 50 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 | From -45 to +85 |
| Power consumption [W] | 2.8 [no TE cooler] | 4 [no TE cooler] | 2.5 [no TE cooler] |
| Power supply voltage | DC 12 V | DC 12 V | DC 12 V |
| Shock | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] |
| Vibration | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] |
| Regulatory compliance | RoHS | RoHS | RoHS |
| XSW 320 CL 100 / 400 | XSW 320 GigE 100 / 400 | XSW 320 16bitDV 100 / 400 | |
| Image format [pixels] | 320 x 256 | 320 x 256 | 320 x 256 |
| Pixel pitch [µm] | 20 | 20 | 20 |
| Detector type | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC |
| Sensor temperature stabilization | TE cooler | TE cooler | TE cooler |
| Integration type | Snapshot - global shutter | Snapshot - global shutter | Snapshot - global shutter |
| Active area and diagonal [mm] | 6.4 x 5.12 [diagonal 8.2] | 6.4 x 5.12 [diagonal 8.2] | 6.4 x 5.12 [diagonal 8.2] |
| Optical fill factor | 100% | 100% | 100% |
| Spectral range [nm] | 900 - 1700 | 900 - 1700 | 900 - 1700 |
| Quantum efficiency | ~80% [typical peak value] | ~80% [typical peak value] | ~80% [typical peak value] |
| Gain modes | Single Gain | Single Gain | Single Gain |
| Full well capacities [electrons] | 70k | 70k | 70k |
| Read noise [electrons] | 110 | 110 | 110 |
| Dark current [electrons/second] | <100k [at 288K sensor temp and 150 mV reverse bias] | <100k [at 288K sensor temp and 150 mV reverse bias] | <100k [at 288K sensor temp and 150 mV reverse bias] |
| Read out mode | ITR | ITR | ITR |
| Pixel operability | >99% | >99% | >99% |
| Preconfigured exposure time range [ms] | 0.5 to 10 for 100 Hz; 0.01 to 40 for 400 Hz | 0.5 to 10 for 100 Hz; 0.01 to 40 for 400 Hz | 0.5 to 10 for 100 Hz; 0.01 to 40 for 400 Hz |
| Max frame rate [Hz] (full frame) | 100 or 400 | 100 or 400 | 100 or 400 |
| Region of interest | Yes [only for 400 Hz model] | Yes [only for 400 Hz model] | Yes [only for 400 Hz model] |
| Min region size [pixels] | 32 x 4 [step 4 x 1] [only for 400 Hz model] | 32 x 4 [step 4 x 1] [only for 400 Hz model] | 32 x 4 [step 4 x 1] [only for 400 Hz model] |
| Max frame rate [Hz] [min region size] | >10000 [only for 400 Hz model] | >10000 [only for 400 Hz model] | >10000 [only for 400 Hz model] |
| Analog-to-Digital (ADC) [bits] | 14 | 14 | 14 |
| Command and control | CameraLink | GigE Vision | QTE Samtec |
| Digital output format | CameraLink [16 bit] | GigE Vision [16 bit] | Digital Video [16 bit ] |
| Trigger | In or out via SMA or in via CL-CC1 [Configurable] | In or out via SMA [Configurable] | In or out via QTE Samtec [Configurable] |
Features:
● Compatible to UVC and USB3 Vision
● Sony Pregius and STARVIS sensors
● Onboard image pre-processing
![SVS-VISTEK HR [CoaXPress]](https://www.jm-vistec.com/wp-content/uploads/2023/01/SVS-HR-300x300.png)

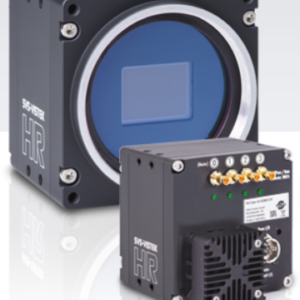

The HR series combines high-resolution image sensors with powerful machine vision interfaces. With state-of-the-art interfaces, the HR achieves data rates of up to 50 Gbit/s and resolutions of up to 122 MP.
