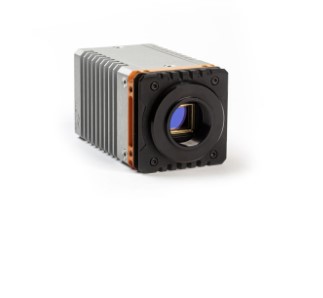

The Wildcat+ 640 TE0 and WL series is based upon a state-of-the-art uncooled InGaAs detector with 640×512 pixels and 20 μm pixel pitch. The WL version uses a special windowless sensor package for laser beam analysis applications. The camera offers superior, high-resolution SWIR imaging capabilities, comes in a versatile and industry-proven Wildcat camera package (GenICam compliant) and offers advanced on-board image processing.
The Wildcat+ 640 TE0 and WL cameras output full frame images at 220 Hz via either a CameraLink or USB3 Vision interface.
The Wildcat+ 640 TE0 and WL is suitable for semiconductor inspection, display inspection (mobile phone and TV), microscopy and laser beam analysis.
Benefits & Features
| Wildcat+ 640 TE0 CL 200 | Wildcat+ 640 TE0 U3V 200 | Wildcat+ 640 WL CL 200 | Wildcat+ 640 WL U3V 200 | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 55 x 55 x 72 | 55 x 55 x 91.5 | 55 x 55 x 72 | 55 x 55 x 91.5 |
| Weight [gr] - excluding lens | 316 | 358 | 316 | 358 |
| Optical interface | C-mount or M42 | C-mount or M42 | C-mount or M42 | C-mount or M42 |
| Connector USB | - | USB 3.0 type micro-B | - | USB 3.0 type micro-B |
| Connector CameraLink | Standard SDR | - | Standard SDR | - |
| Connector power/trigger/serial command | Lemo 1B.308 (unified connector) | Lemo 1B.308 (unified connector) | Lemo 1B.308 (unified connector) | Lemo 1B.308 (unified connector) |
| Wildcat+ 640 TE0 CL 200 | Wildcat+ 640 TE0 U3V 200 | Wildcat+ 640 WL CL 200 | Wildcat+ 640 WL U3V 200 | |
| Operating case temperature [°C] | From -40 to +70 | From -40 to +70 | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -40 to +85 | From -40 to +85 | From -40 to +85 | From -40 to +85 |
| Power consumption [W] | <7 | <7 | <7 | <7 |
| Power supply voltage | DC 12 V | DC 12 V | DC 12 V | DC 12 V |
| Shock | 40 g, 11 ms, according to MIL-STD810G | 40 g, 11 ms, according to MIL-STD810G | 40 g, 11 ms, according to MIL-STD810G | 40 g, 11 ms, according to MIL-STD810G |
| Vibration | 5 g [20 to 2000 Hz], according to MIL-STD810G | 5 g [20 to 2000 Hz], according to MIL-STD810G | 5 g [20 to 2000 Hz], according to MIL-STD810G | 5 g [20 to 2000 Hz], according to MIL-STD810G |
| IP rating | IP40 | IP40 | IP40 | IP40 |
| Regulatory compliance | CE | CE | CE | CE |
| Wildcat+ 640 TE0 CL 200 | Wildcat+ 640 TE0 U3V 200 | Wildcat+ 640 WL CL 200 | Wildcat+ 640 WL U3V 200 | |
| Image format [pixels] | 640 x 512 | 640 x 512 | 640 x 512 | 640 x 512 |
| Pixel pitch [µm] | 20 | 20 | 20 | 20 |
| Detector type | InGaAs photodiode array with CTIA ROIC (WL version comes without detector cover glass) | InGaAs photodiode array with CTIA ROIC (WL version comes without detector cover glass) | InGaAs photodiode array with CTIA ROIC (WL version comes without detector cover glass) | InGaAs photodiode array with CTIA ROIC (WL version comes without detector cover glass) |
| Sensor temperature stabilization | NA(uncooled) | NA(uncooled) | NA(uncooled) | NA(uncooled) |
| Integration type | Snapshot - global shutter | Snapshot - global shutter | Snapshot - global shutter | Snapshot - global shutter |
| Active area and diagonal [mm] | 12.8 x 10.24 [diagonal 16.4] | 12.8 x 10.24 [diagonal 16.4] | 12.8 x 10.24 [diagonal 16.4] | 12.8 x 10.24 [diagonal 16.4] |
| Optical fill factor | 100% | 100% | 100% | 100% |
| Spectral range [nm] | 900 - 1700 | 900 - 1700 | 900 - 1700 | 900 - 1700 |
| Quantum efficiency | ~80% [typical peak value] | ~80% [typical peak value] | ~80% [typical peak value] | ~80% [typical peak value] |
| Gain modes | High Gain [HG] & High Dynamic Range [HDR] | High Gain [HG] & High Dynamic Range [HDR] | High Gain [HG] & High Dynamic Range [HDR] | High Gain [HG] & High Dynamic Range [HDR] |
| Full well capacities [electrons] | 65k [HG] & 550k [HDR] | 65k [HG] & 550k [HDR] | 65k [HG] & 550k [HDR] | 65k [HG] & 550k [HDR] |
| Read noise [electrons] | 45 [HG] & 200 [HDR] | 45 [HG] & 200 [HDR] | 45 [HG] & 200 [HDR] | 45 [HG] & 200 [HDR] |
| Dark current [electrons/second] | <100k | <100k | <100k | <100k |
| Read out modes | ITR/IWR | ITR/IWR | ITR/IWR | ITR/IWR |
| Pixel operability | >99.5% | >99.5% | >99.5% | >99.5% |
| Preconfigured exposure time range [ms] | HDR ITR: 0.5 ms; HG ITR: 0.5 ms & 5 ms; HG IWR 0.5 ms & 5 ms | HDR ITR: 0.5 ms; HG ITR: 0.5 ms & 5 ms; HG IWR 0.5 ms & 5 ms | HDR ITR: 0.5 ms; HG ITR: 0.5 ms & 5 ms; HG IWR 0.5 ms & 5 ms | HDR ITR: 0.5 ms; HG ITR: 0.5 ms & 5 ms; HG IWR 0.5 ms & 5 ms |
| Max frame rate [Hz] [full frame] | 220 | 220 | 220 | 220 |
| Region of interest | Yes | Yes | Yes | Yes |
| Min region size [pixels] | 8 x 8 (step size 4 pixels in X & 1 pixel in Y) | 8 x 8 (step size 4 pixels in X & 1 pixel in Y) | 8 x 8 (step size 4 pixels in X & 1 pixel in Y) | 8 x 8 (step size 4 pixels in X & 1 pixel in Y) |
| Max frame rate [Hz] [min region size] | >7 kHz | >7 kHz | >7 kHz | >7 kHz |
| Command and control | CameraLink Base | USB 3 Vision | CameraLink Base | USB 3 Vision |
| Digital output format | CameraLink Base (16 bit) | USB 3 Vision (16 bit) | CameraLink Base (16 bit) | USB 3 Vision (16 bit) |
| Trigger | Connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CameraLink trigger in | Connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CameraLink trigger in | Connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CameraLink trigger in | Connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CameraLink trigger in |
