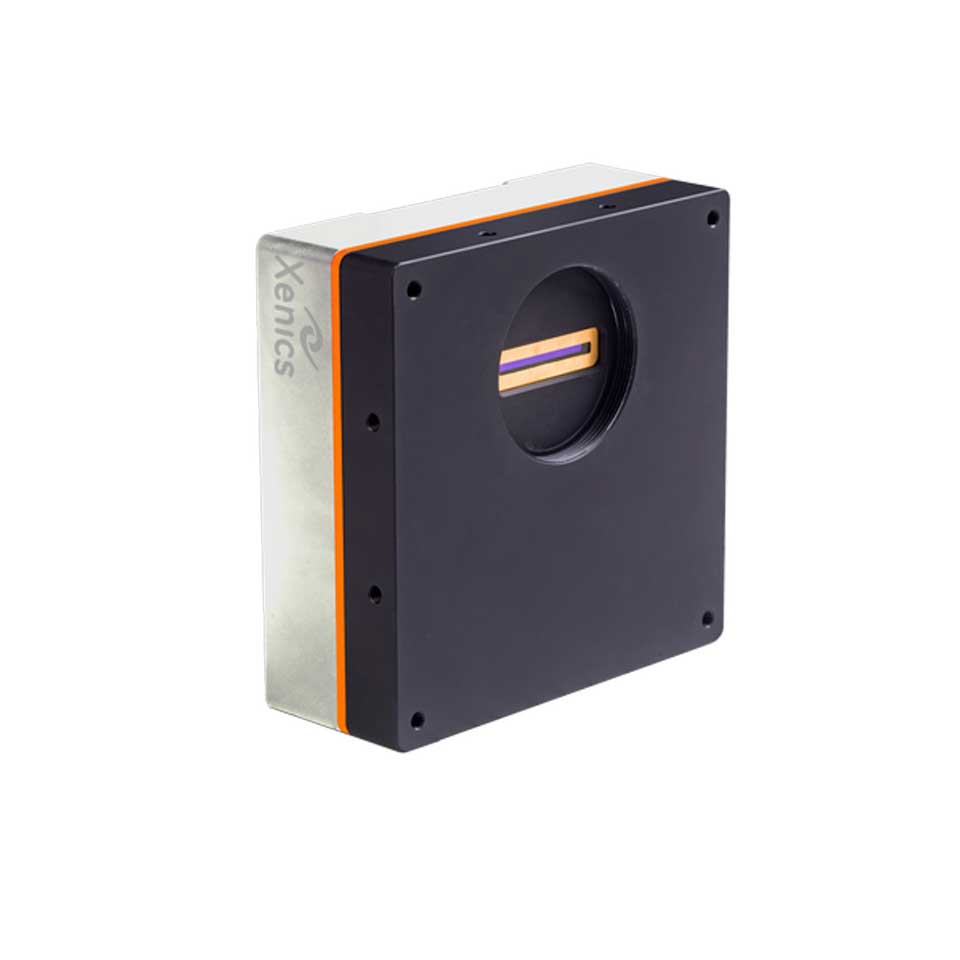

Xenics Short-Wave Infrared (SWIR) Manx R Series

Based on a brand new, in-house developed InGaAs linear detector, the Manx rectangular (R) is a high-performance short-wave infrared (SWIR) camera providing high speed and quality line-scan imaging. At unprecedented line rates of up to 256 kHz (or 128 kHz), the Manx rectangular (R) stands as the fastest line-scan InGaAs camera available in the world.

The Manx rectangular (R) is able to provide up to 2048 pixel resolution. It also presents the lowest noise performance record for a 2048 pixel SWIR linear camera, combined with excellent dynamic range.

The use of CoaXPress interfacing enables fast and reliable data transfer.

The Manx rectangular (R) is offered in 3 different resolutions of 512, 1024 or 2048 pixels.

The Manx rectangular (R) products are suitable for spectroscopy and spectral-domain optical coherence tomography (OCT).

Benefits & Features

• World’s fastest SWIR line-scan imaging up to 256 kHz
• High resolution
• Low noise, low dark current
• CoaXPress interfacing for reliable streaming of data
• Versatility with 4 gain modes
• Optional GigE convertor available

Mechanical Specifications:
Manx 512 R CXP 130/260 Manx 1024 R CXP 130/260 Manx 2048 R CXP 130/260
Approximate dimensions - excluding lens [width x height x length] [mm] 102 x 102 x 40 102 x 102 x 40 102 x 102 x 40
Weight [gr] - excluding lens 900 900 900
Optical interface C-mount or M42 [M42 to F-mount adapter optional] C-mount or M42 [M42 to F-mount adapter optional] C-mount or M42 [M42 to F-mount adapter optional]
Connector CXP 4 connectors - type DIN 1.0/2.3 4 connectors - type DIN 1.0/2.3 4 connectors - type DIN 1.0/2.3
Connector power Only PoCXP Only PoCXP Only PoCXP
Connector trigger Lemo (unified connector) Lemo (unified connector) Lemo (unified connector)
Environmental & Power Specifications:
Manx 512 R CXP 130/260 Manx 1024 R CXP 130/260 Manx 2048 R CXP 130/260
Operating case temperature [°C] From -40 to +60 From -40 to +60 From -40 to +60
Storage temperature [°C] From -40 to +85 From -40 to +85 From -40 to +85
Power consumption [W] up to 11 (without TEC) up to 11 (without TEC) up to 11 (without TEC)
Power supply voltage DC 24 V (via CXP) DC 24 V (via CXP) DC 24 V (via CXP)
Shock 40 g, 11 ms, according to MIL-STD810G 40 g, 11 ms, according to MIL-STD810G 40 g, 11 ms, according to MIL-STD810G
Vibration 5g [20 to 2000 Hz], according to MIL-STD810G 5g [20 to 2000 Hz], according to MIL-STD810G 5g [20 to 2000 Hz], according to MIL-STD810G
IP rating IP40 IP40 IP40
Regulatory compliance CE, RoHS CE, RoHS CE, RoHS
Electro-Optical Specifications:
Manx 512 R CXP 130/260 Manx 1024 R CXP 130/260 Manx 2048 R CXP 130/260
Sensor format [pixels] 512 1024 2048
Pixel pitch [µm] 12.5 12.5 12.5
Pixel height [µm] 250 250 250
Detector type InGaAs photodiode array with CTIA ROIC InGaAs photodiode array with CTIA ROIC InGaAs photodiode array with CTIA ROIC
Sensor temperature stabilization TE cooler TE cooler TE cooler
Integration type Snapshot - global shutter Snapshot - global shutter Snapshot - global shutter
Optical fill factor 100% 100% 100%
Spectral range [nm] 900 - 1700 900 - 1700 900 - 1700
Quantum efficiency ~80% [typical peak value] ~80% [typical peak value] ~80% [typical peak value]
Gain modes 4 (100x [HG]; 20x [MG]; 5x [ML]; 1x [LG]) 4 (100x [HG]; 20x [MG]; 5x [ML]; 1x [LG]) 4 (100x [HG]; 20x [MG]; 5x [ML]; 1x [LG])
Full well capacities [electrons] 290k; 1.6M; 8.1M; 35M 290k; 1.6M; 8.1M; 35M 290k; 1.6M; 8.1M; 35M
Read noise [electrons] 350; 700; 2600; 12000 350; 700; 2600; 12000 350; 700; 2600; 12000
Dark current [electrons/second] 1.6M (at 20°C sensor temp and 100 mV reverse bias) 1.6M (at 20°C sensor temp and 100 mV reverse bias) 1.6M (at 20°C sensor temp and 100 mV reverse bias)
Read out mode IWR IWR IWR
Pixel operability >99.6% >99% >98%
Max line rate [kHz] 256/128 256/128 256/128
Analog-to-Digital [ADC] [bits] 14 14 14
Command and control CoaXPress CoaXPress CoaXPress
Digital output format CoaXPress [16 bit] CoaXPress [16 bit] CoaXPress [16 bit]
Trigger Trigger connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CXP trigger: 1 trigger in Trigger connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CXP trigger: 1 trigger in Trigger connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CXP trigger: 1 trigger in
