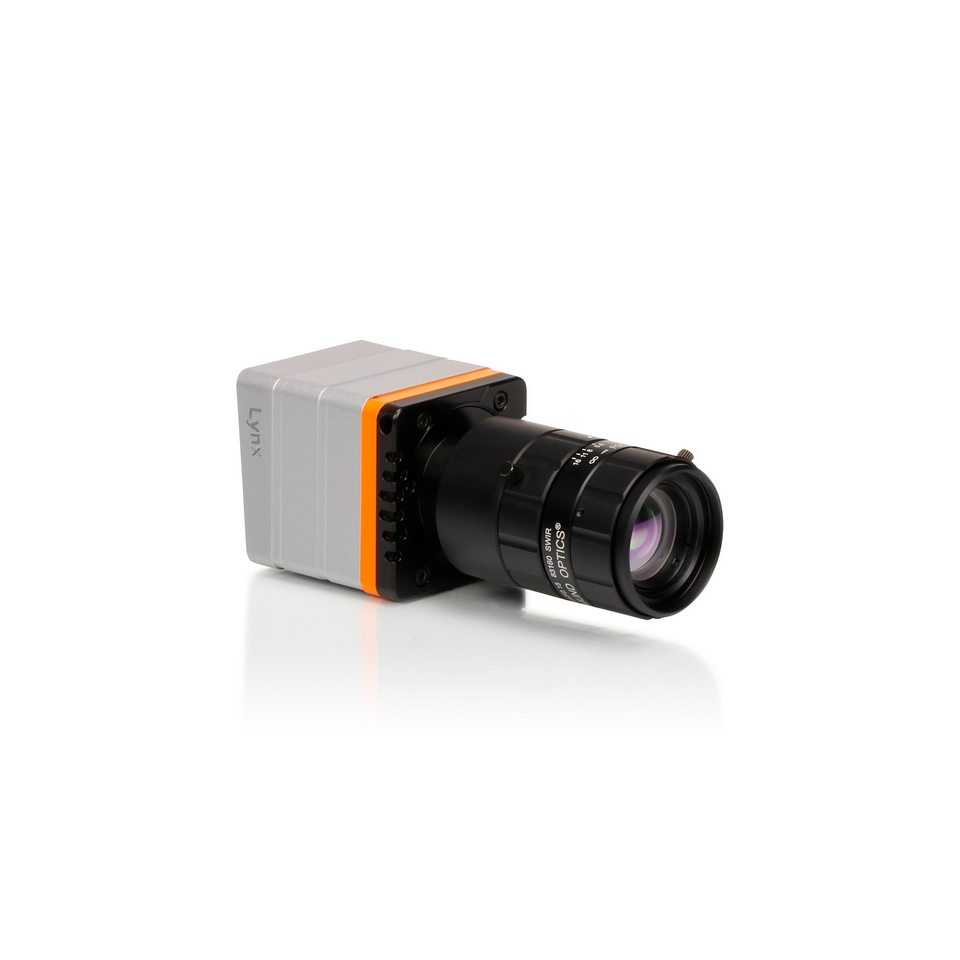

The Lynx square (SQ) series, based on an in-house developed linear InGaAs detector, offer affordable short-wave infrared (SWIR) line-scan imagers.
The Lynx SQ cameras are able to image line rates up to 40 kHz for demanding machine vision applications. The cameras come with an industry-standard CameraLink or GigE Vision interface.
Depending on your imaging requirements, three resolutions of 512, 1024, or 2048 pixels are offered.
Benefits & Features
• High speed line-scan imaging up to 40 kHz
• High resolution
• CameraLink or GigE Vision interfacing
| Lynx 512 SQ CL / GigE | Lynx 1024 SQ CL / GigE | Lynx 2048 SQ CL / GigE | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 49 x 49 x 53 [CL], 49 x 49 x 71 [GigE] | 49 x 49 x 53 [CL], 49 x 49 x 71 [GigE] | 49 x 49 x 53 [CL], 49 x 49 x 71 [GigE] |
| Weight [gr] - excluding lens | 153 [CL], 208 [GigE] | 153 [CL], 208 [GigE] | 153 [CL], 208 [GigE] |
| Optical interface | C-mount or M42 [M42 to F-mount adapter optional] | C-mount or M42 [M42 to F-mount adapter optional] | C-mount or M42 [M42 to F-mount adapter optional] |
| Connector GigE | RJ-45 | RJ-45 | RJ-45 |
| Connector CameraLink | Standard SDR | Standard SDR | Standard SDR |
| Connector power | Hirose HR10-7R-SA[73] | Hirose HR10-7R-SA[73] | Hirose HR10-7R-SA[73] |
| Connector trigger | SMA | SMA | SMA |
| Lynx 512 SQ CL / GigE | Lynx 1024 SQ CL / GigE | Lynx 2048 SQ CL / GigE | |
| Ambient operating temperature range [°C] | From -40 to +70; also available in temperature range 0 - 50 | From -40 to +70; also available in temperature range 0 - 50 | From -40 to +70; also available in temperature range 0 - 50 |
| Storage temperature [°C] | From -50 to +85 | From -50 to +85 | From -50 to +85 |
| Power consumption [W] | 2.6 [CL], 4.6 [GigE] | 2.6 [CL], 4.6 [GigE] | 2.6 [CL], 4.6 [GigE] |
| Power supply voltage | DC 12 V | DC 12 V | DC 12 V |
| Shock | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] | IEC60068-2-27 Ed4.0; half-sine; terminal saw tooth; 50 g [11 ms] |
| Vibration | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] | Random: IEC60068-2-64 Ed2.0; 4.3 g [20 - 1000 Hz]. Sine: IEC60068-2-6 Ed7.0; 1 g [10 - 2000 Hz] |
| IP rating | IP40 | IP40 | IP40 |
| Regulatory compliance | CE, RoHS | CE, RoHS | CE, RoHS |
| Lynx 512 SQ CL / GigE | Lynx 1024 SQ CL / GigE | Lynx 2048 SQ CL / GigE | |
| Sensor format [pixels] | 512 | 1024 | 2048 |
| Pixel pitch [µm] | 25 | 12.5 | 12.5 |
| Pixel height [µm] | 25 | 12.5 | 12.5 |
| Detector type | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC |
| Integration type | Snapshot - global shutter | Snapshot - global shutter | Snapshot - global shutter |
| Spectral range [nm] | 900 - 1700 | 900 - 1700 | 900 - 1700 |
| Quantum efficiency | ~80% [typical peak value] | ~80% [typical peak value] | ~80% [typical peak value] |
| Full well capacities [electrons] | 450k to 32M | 450k to 32M | 450k to 10M |
| Read out modes | IWR and ITR | IWR and ITR | IWR and ITR |
| Pixel operability | >99.6% | >99% | >98% |
| Max line rate [kHz] | 40 | 40 | 10 |
| Analog-to-Digital [ADC] [bits] | 14 | 14 | 14 |
| Command and control | CameraLink or GigE Vision | CameraLink or GigE Vision | CameraLink or GigE Vision |
| Digital output format | CameraLink or GigE Vision [16 bit] | CameraLink or GigE Vision [16 bit] | CameraLink or GigE Vision [16 bit] |
| Trigger | In or out via SMA [configurable]. For CL - additional trigger in available via CC1 | In or out via SMA [configurable]. For CL - additional trigger in available via CC1 | In or out via SMA [configurable]. For CL - additional trigger in available via CC1 |
