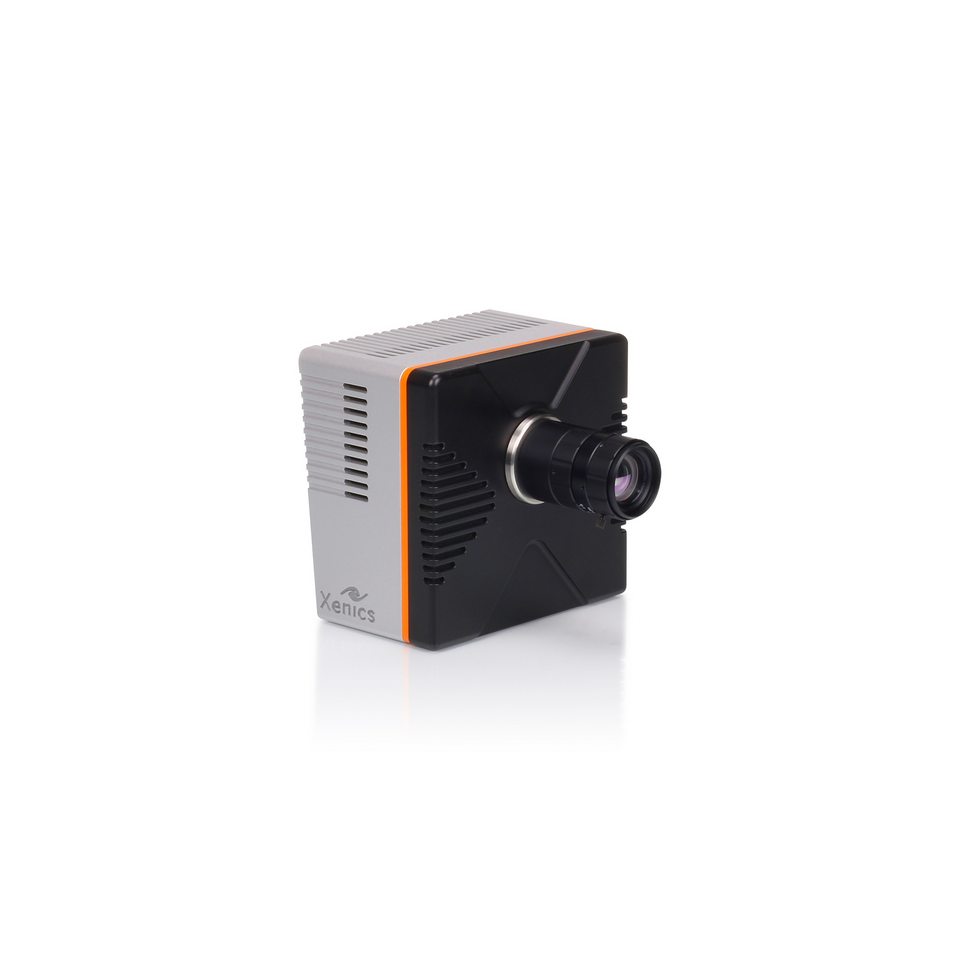

The Cheetah 640 series is based on a cooled, in-house developed InGaAs detector with a 640 x 512 pixel resolution.
The Cheetah 640 camera with single-stage TE-cooled detector offers high frame rates of either 400 Hz, 800 Hz or 1700 Hz while the version with three-stage TE-cooled detector offers a frame rate of up to 110 Hz. The camera comes with a CameraLink interface.
A visible short-wave infrared (vSWIR) option is available for extension into the visible wavelength band.
Benefits & Features
• World’s fastest SWIR area-scan imaging up to 1700 Hz
• vSWIR optional
• Low dark current
• Reliable data transfer via CameraLink
| Cheetah 640 TE1 400 SWIR / vSWIR | Cheetah 640 TE1 800 SWIR / vSWIR | Cheetah 640 TE1 1700 SWIR / vSWIR | Cheetah 640 TE3 | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 143 x 137 x 95 | 143 x 137 x 95 | 143 x 137 x 95 | 143 x 137 x 95 |
| Weight [gr] - excluding lens | 2000 | 2000 | 2000 | 2000 |
| Camera cooling | Forced convection [fan] | Forced convection [fan] | Forced convection [fan] | Water cooling |
| Optical interface | C-mount | C-mount | C-mount | C-mount |
| Connector CameraLink | Standard SDR connectors | Standard SDR connectors | Standard SDR connectors | Standard SDR connectors |
| Connector power | LEMO ECG 1B-1K302 | LEMO ECG 1B-1K302 | LEMO ECG 1B-1K302 | LEMO ECG 1B-1K302 |
| Connector trigger | LEMO ECG 1B-1K302 | LEMO ECG 1B-1K302 | LEMO ECG 1B-1K302 | LEMO ECG 1B-1K302 |
| Water connector | - | - | - | Push-in fitting for 6 mm diameter tube |
| Cheetah 640 TE1 400 SWIR / vSWIR | Cheetah 640 TE1 800 SWIR / vSWIR | Cheetah 640 TE1 1700 SWIR / vSWIR | Cheetah 640 TE3 | |
| Ambient operating temperature range [°C] | From 0 to +50 | From 0 to +50 | From 0 to +50 | From 0 to +50 |
| Storage temperature [°C] | From -45 to +60 | From -45 to +60 | From -45 to +60 | From -45 to +60 |
| Power consumption [W] | Up to 25 | Up to 25 | Up to 25 | Up to 60 |
| Power supply voltage | DC 12 V | DC 12 V | DC 12 V | DC 12 V |
| Shock | MIL-STD810G method 516.6; half-sine, 40 g [11 ms] | MIL-STD810G method 516.6; half-sine, 40 g [11 ms] | MIL-STD810G method 516.6; half-sine, 40 g [11 ms] | MIL-STD810G method 516.6; half-sine, 40 g [11 ms] |
| Vibration | Random: MIL-STD810G method 514.6; 4.01 g [15 - 2000 Hz]. Sine: MIL-STD883J method 2007; 5 g [20 - 2000 Hz] | Random: MIL-STD810G method 514.6; 4.01 g [15 - 2000 Hz]. Sine: MIL-STD883J method 2007; 5 g [20 - 2000 Hz] | Random: MIL-STD810G method 514.6; 4.01 g [15 - 2000 Hz]. Sine: MIL-STD883J method 2007; 5 g [20 - 2000 Hz] | Random: MIL-STD810G method 514.6; 4.01 g [15 - 2000 Hz]. Sine: MIL-STD883J method 2007; 5 g [20 - 2000 Hz] |
| Regulatory compliance | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS |
| Cheetah 640 TE1 400 SWIR / vSWIR | Cheetah 640 TE1 800 SWIR / vSWIR | Cheetah 640 TE1 1700 SWIR / vSWIR | Cheetah 640 TE3 | |
| Image format [pixels] | 640 x 512 | 640 x 512 | 640 x 512 | 640 x 512 |
| Pixel pitch [µm] | 20 | 20 | 20 | 20 |
| Detector type | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC |
| Sensor cooling | TE cooler | TE cooler | TE cooler | 3-stage TE cooler |
| Integration type | Snapshot - global shutter | Snapshot - global shutter | Snapshot - global shutter | Snapshot - global shutter |
| Active area and diagonal [mm] | 12.8 x 10.24 [diagonal 16.4] | 12.8 x 10.24 [diagonal 16.4] | 12.8 x 10.24 [diagonal 16.4] | 12.8 x 10.24 [diagonal 16.4] |
| Optical fill factor | 100% | 100% | 100% | 100% |
| Spectral range [nm] | 900 - 1700 [SWIR]; 500 - 1700 [vSWIR] | 900 - 1700 [SWIR]; 500 - 1700 [vSWIR] | 900 - 1700 [SWIR]; 500 - 1700 [vSWIR] | 900 - 1700 [SWIR] |
| Quantum efficiency | ~80% [typical peak value] | ~80% [typical peak value] | ~80% [typical peak value] | ~80% [typical peak value] |
| Gain modes | High Gain [HG] & High Dynamic Range [HDR] | High Gain [HG] & High Dynamic Range [HDR] | High Gain [HG] & High Dynamic Range [HDR] | High Gain [HG] & High Dynamic Range [HDR] |
| Full well capacities [electrons] | 45k [HG] & 500k [HDR] | 45k [HG] & 500k [HDR] | 45k [HG] & 500k [HDR] | 45k [HG] & 500k [HDR] |
| Read noise [electrons] | 120 [HG] & 500 [HDR] | 120 [HG] & 500 [HDR] | 120 [HG] & 500 [HDR] | 120 [HG] & 500 [HDR] |
| Dark current [electrons/second] | <100k [at 288K sensor temp and 150 mV reverse bias]; <200k for vSWIR | <100k [at 288K sensor temp and 150 mV reverse bias]; <200k for vSWIR | <100k [at 288K sensor temp and 150 mV reverse bias]; <200k for vSWIR | <1000 [at 233K sensor temp and 150 mV reverse bias] |
| Read out mode | ITR & IWR | ITR & IWR | ITR & IWR | ITR & IWR |
| Pixel operability | >99% | >99% | >99% | >99% |
| Preconfigured exposure time range [ms] | 0.1 to 40 in HG, 0.1 to 20 in HDR | 0.1 to 40 in HG, 0.1 to 20 in HDR | 0.1 to 40 in HG, 0.1 to 20 in HDR | Maximum exposure is up to 20s in HG |
| Max frame rate [Hz] [full frame] | 444 | 865 | 1730 | 111 |
| Region of interest | Yes | Yes | Yes | Yes |
| Min region size [pixels] | 32 x 4 [step 16 x 4] | 32 x 4 [step 16 x 4] | 32 x 4 [step 16 x 4] | 32 x 4 [step 16 x 4] |
| Max frame rate [Hz] [min region size] | >100000 | >100000 | >100000 | >10000 |
| Analog-to-Digital [ADC] [bits] | 14 | 14 | 14 | 14 |
| Command and control | CameraLink | CameraLink | CameraLink | CameraLink |
| Digital output format | CameraLink [12 bit base] - 1 cable | CameraLink [12 bit medium] - 2 cables | CameraLink [12 bit dual medium] - 4 cables CameraLink [8 bit full] - 2 cables | CameraLink [14 bit base] - 1 cable |
| Trigger | In or out via trigger connector [configurable] | In or out via trigger connector [configurable] | In or out via trigger connector [configurable] | In or out via trigger connector [configurable] |
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
Our ultraviolet cameras are based on the proven design of the FXO series. The fast CoaXPress-12 interface provides outstanding performance in terms of ultra-low trigger latency, faster frame rate and constant data rate. The 10GigE interface option is an economical, highly stable alternative with advantages for long data lines up to 100m. Sony Pregius UV sensors combine high resolution, high dynamic range and superior sensitivity in the wavelength range of 200 – 400 nm.
Our ultraviolet cameras are optimized for deployment in industrial automation processes thanks to advanced signal voltages, temperature stability, I/O control, integrated strobe controller, and feature-rich firmware.
Technical highlights:
The FXO stands for excellent image quality. The fast 10GigE interface is an extremely economical interface and at the same time offers excellent conditions for use in larger networks. The large framebuffer and packet resend ensure reliable top frame rates. Up to 100 m cable length is supported by the modern network technology of the FXO.
An excellent, low-noise image with high dynamics is complemented by a comprehensive feature set. The Sony Pregius S sensors used are characterized by high light sensitivity and best homogeneity. Signal voltages, temperature resistance, I/O control, integrated strobe controller and firmware features are aimed at applications in industrial automation.
Technical highlights:
The FXO stands for excellent image quality. The fast CoaXPress-12 interface gives the camera outstanding properties in terms of trigger latency and constant data rate.
An excellent, low-noise image with high dynamics is complemented by a comprehensive feature set. The Sony Pregius S sensors used are characterized by high light sensitivity and best homogeneity. Signal voltages, temperature resistance, I/O control, integrated strobe controller and firmware features are geared towards applications in demanding industrial automation.
Technical highlights:
