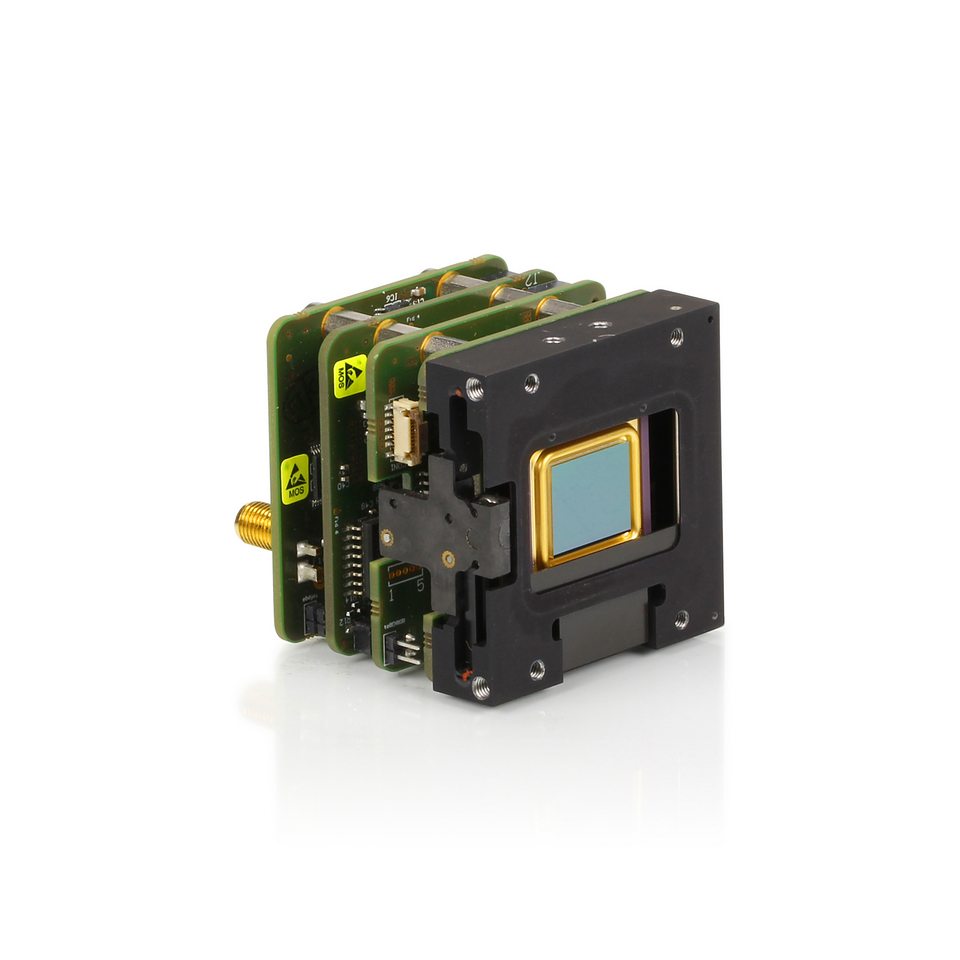

The XTM+ 640 series is based on an uncooled microbolometer detector with a 640 x 480 pixel resolution.
The XTM+ 640 offers frame rates up to 60 Hz and lower detector NETD options ( < 30 mK available upon request).
The modules come with either a CameraLink, GigE Vision or QTE Samtec interface and feature low weight and power.
Benefits & Features
• Compact size
• Easy connectivity via multiple interfaces
• Frame rates up to 60 Hz
• Lower detector NETD options ( < 30 mK available upon request)
| XTM+ 640 GigE | XTM+ 640 CL | XTM+ 640 16bit DV | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 45 x 45 x 63 | 45 x 45 x 45 | 45 x 45 x 36 |
| Weight [gr] - excluding lens | 125 | 84 | 72 |
| Optical interface [optional] | M42 or M34 x 0.75 | M42 or M34 x 0.75 | M42 or M34 x 0.75 |
| Connector GigE | RJ-45 | - | - |
| Connector CameraLink | - | Standard SDR | - |
| Connector power | Hirose HR10-7R-SA[73] | Hirose HR10-7R-SA[73] | - |
| Connector trigger | SMA | SMA | - |
| Connector analog | - | - | - |
| Connector RS232 | - | - | - |
| Connector general I/O | - | - | QTE-020-02-L-D-A Samtec |
| XTM+ 640 GigE | XTM+ 640 CL | XTM+ 640 16bit DV | |
| Ambient operating temperature range [°C] | From -40 to +60; also available in temperature range 0 - 50 | From -40 to +60; also available in temperature range 0 - 50 | From -40 to +60; also available in temperature range 0 - 50 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 | From -45 to +85 |
| Power consumption [W] | 4.6 | 2.9 | 2.7 |
| Power supply voltage | DC 12 V or PoE (Power over Ethernet) | DC 12 V | DC 3.3 V |
| Shock | 40 g, 11 ms, MIL-STD810G / MIL-STD883J | 40 g, 11 ms, MIL-STD810G / MIL-STD883J | 40 g, 11 ms, MIL-STD810G / MIL-STD883J |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G / MIL-STD883J | 5 g [20 to 2000 Hz], MIL-STD810G / MIL-STD883J | 5 g [20 to 2000 Hz], MIL-STD810G / MIL-STD883J |
| Regulatory compliance | RoHS | RoHS | RoHS |
| XTM+ 640 GigE | XTM+ 640 CL | XTM+ 640 16bit DV | |
| Image format [pixels] | 640 x 480 | 640 x 480 | 640 x 480 |
| Pixel pitch [µm] | 17 | 17 | 17 |
| Detector type | a-Si microbolometer | a-Si microbolometer | a-Si microbolometer |
| Integration type | Rolling shutter | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 10.88 x 8.16 [13.6 diagonal] | 10.88 x 8.16 [13.6 diagonal] | 10.88 x 8.16 [13.6 diagonal] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <50 [at 30 Hz, 300K, F/1] [ < 30 mK available upon request] | <50 [at 30 Hz, 300K, F/1] [ < 30 mK available upon request] | <50 [at 30 Hz, 300K, F/1] [ < 30 mK available upon request] |
| Spectral range [µm] | 8 - 14 | 8 - 14 | 8 - 14 |
| Pixel operability | >99.5% | >99.5% | >99.5% |
| Max frame rate [full frame] [Hz] | 60 [or 9] | 60 [or 9] | 60 [or 9] |
| Integration time range [µs] | 1 - 80 | 1 - 80 | 1 - 80 |
| Region of interest | Yes | Yes | Yes |
| Min region size [pixels] | 160 x 120 | 160 x 120 | 160 x 120 |
| Analog-to-Digital [ADC] [bits] | 16 | 16 | 16 |
| Command and control | GigE Vision | CameraLink | QTE Samtec [serial LVCMOS] |
| Digital output format | 16 bit GigE Vision | 16 bit base CameraLink | 16 bit Digital Video |
| Trigger | In or out via SMA [configurable, not for 9 Hz] | In or out via SMA or in via CL-CC1 [configurable, not for 9 Hz] | In or out via QTE Samtec [configurable, not for 9 Hz] |
Winner of the prestigious Vision Systems and Design Magazine’s Innovators Award 2018, the IC-X50T-CXP mono and color versions showcase ISVI’s expertise in leading-edge camera design.
Key Features:
The FXO series combines the outstanding image quality of the Sony Pregius S sensor with state-of-the-art, fast interfaces. 10GigE, 25GigE and CoaXPress-12 are supported. The integrated strobe controller facilitates the construction of very slim applications.
The Pregius S sensor from Sony with global shutter shines with outstanding image quality and is the heart of the FXO series. The 2.74 µm – 9 µm pixel has a high light sensitivity combined with very low noise. The excellent homogeneity and dynamic range of the image set standards.
An elaborately milled housing for each sensor provides the optimum temperature distribution for this high-performance sensor. The FXO combines the outstanding sensor with the fastest interfaces in the machine vision sector.
With its excellent image, fast interfaces, versatile inputs and an integrated multichannel strobe controller, the FXO offers an extremely flexible, powerful and economical camera concept. The small pixel enables more favorable lenses for the high resolutions.
The FXO series with CXP interface is available in versions with one or two CoaXPress-12 connections. This enables the FXO to achieve data rates of 12.5 or 25 Gbit/s.
The FXO 10GigE offers resolutions of up to 24.5 MP and frame rates of up to 124 fps.
Brand new and incredibly fast: the FXO 25GigE delivers up to 671 fps with a resolution of 1.8 MP.
The highest demands on image quality and data rate are the field of application of the FXO. The small pixels allow a high resolution in the application despite the small design and the use of inexpensive lenses.
The integrated GenICam strobe controller effectively saves costs by reducing the number of components. In plant engineering, the fast FXO scores with the latest sensor technology, the extended temperature range and many I/O interfaces.
Key Features:
Features:
● Reversible Type-C port connection
● Sony STARVIS and Pregius CMOS sensors
● Single-board cameras
