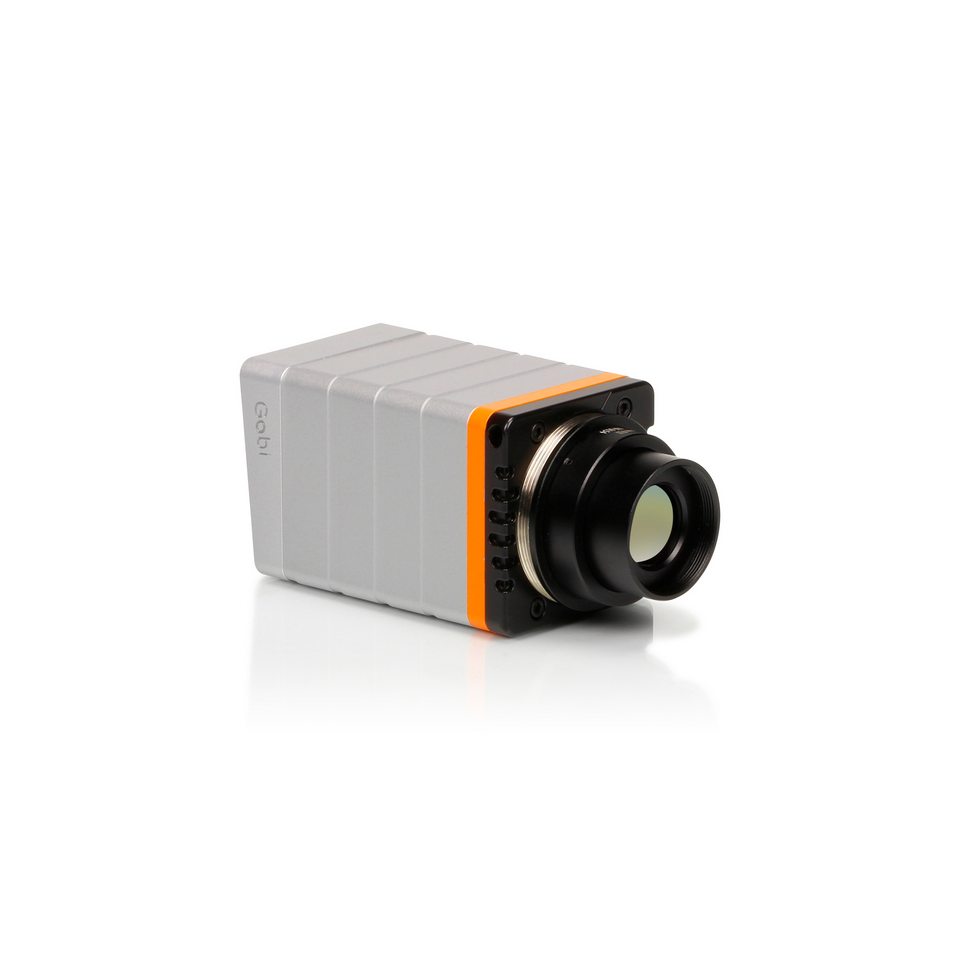

The Gobi+ 640 series is based on an uncooled microbolometer detector with a 640 x 480 pixel resolution.
The Gobi+ 640 offers frame rates up to 60 Hz and lower detector NETD options ( < 30 mK available upon request).
The cameras come with either a CameraLink or GigE Vision interface.
Benefits & Features
• Compact size
• Easy connectivity via multiple interfaces
• Frame rates up to 60 Hz
• Lower detector NETD options ( < 30 mK available upon request)
• Temperature calibrations for thermographic applications
| Gobi+ 640 GigE | Gobi+ 640 CL | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 49 x 49 x 79 | 49 x 49 x 62 |
| Weight [gr] - excluding lens | 263 | 208 |
| Optical interface | M42 or M34 x 0.75 | M42 or M34 x 0.75 |
| Connector GigE | RJ-45 | - |
| Connector CameraLink | - | Standard SDR |
| Connector power | Hirose HR10-7R-SA[73] | Hirose HR10-7R-SA[73] |
| Connector trigger | SMA | SMA |
| Gobi+ 640 GigE | Gobi+ 640 CL | |
| Ambient operating temperature range [°C] | From -40 to +60; also available in temperature range 0 - 50 | From -40 to +60; also available in temperature range 0 - 50 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 |
| Power consumption [W] | 4.6 | 2.9 |
| Power supply voltage | DC 12 V or PoE (Power over Ethernet) | DC 12 V |
| Shock | 40 g, 11 ms, MIL-STD810G/ MIL-STD883J | 40 g, 11 ms, MIL-STD810G/ MIL-STD883J |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G/ MIL-STD883J | 5 g [20 to 2000 Hz], MIL-STD810G/ MIL-STD883J |
| IP rating | IP40 | IP40 |
| Regulatory compliance | CE, RoHS | CE, RoHS |
| Gobi+ 640 GigE | Gobi+ 640 CL | |
| Image format [pixels] | 640 x 480 | 640 x 480 |
| Pixel pitch [µm] | 17 | 17 |
| Detector type | a-Si microbolometer | a-Si microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 10.88 x 8.16 [13.6 diagonal] | 10.88 x 8.16 [13.6 diagonal] |
| Detector NETD (Noise Equivalent Temperature Difference) [mK] | <50 [at 30 Hz, 300 K, F/1] [ < 30 mK available upon request] | <50 [at 30 Hz, 300 K, F/1] [ < 30 mK available upon request] |
| Spectral range [µm] | 8 - 14 | 8 - 14 |
| Pixel operability | >99.5% | >99.5% |
| Max frame rate [Hz] (full frame) | 60 [or 9] | 60 |
| Integration time range [µs] | 1 - 80 | 1 - 80 |
| Region of interest | Yes | Yes |
| Min region size [pixels] | 160 x 120 | 160 x 120 |
| Analog-to-Digital (ADC) [bits] | 16 | 16 |
| Command and control | GigE Vision | CameraLink |
| Digital output format | GigE Vision [16 bit] | CameraLink [16 bit] |
| Trigger | In or out via SMA [configurable] [not for 9 Hz] | In or out via SMA or in via CL-CC1 [configurable] |
