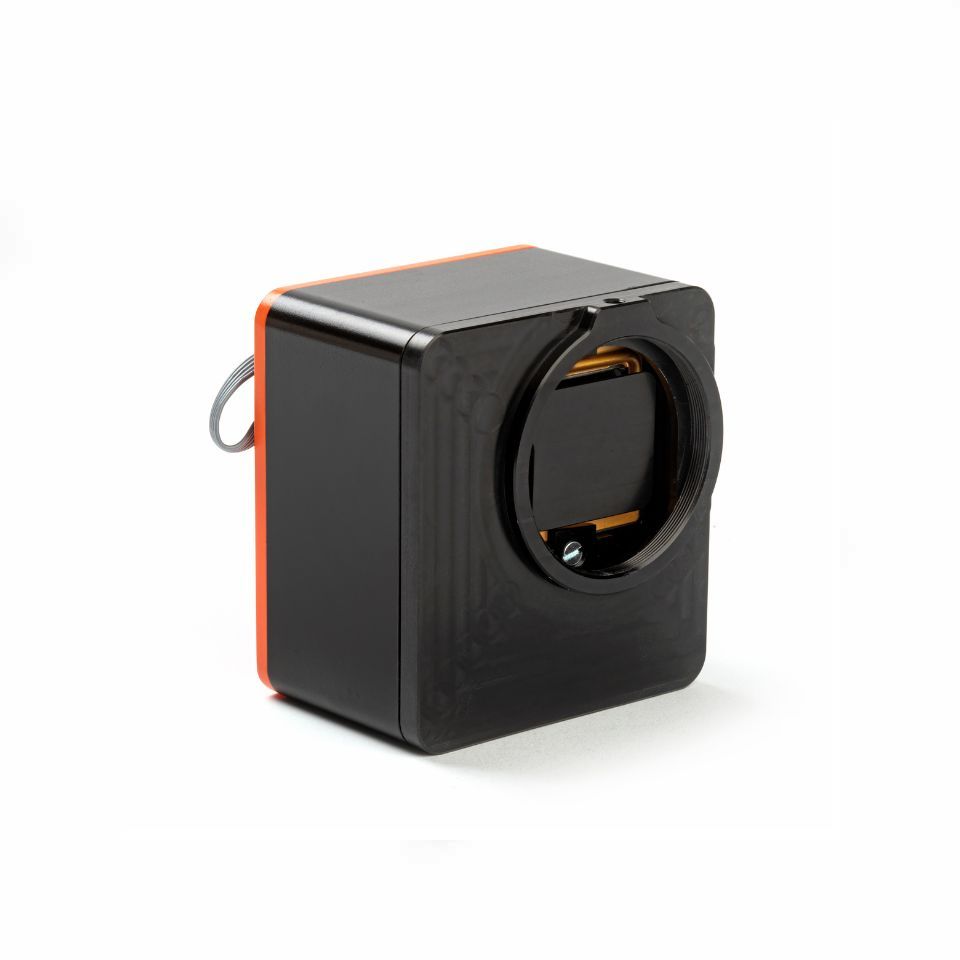

The Dione S 1024 CAM series is based upon the Dione 1024 OEM thermal imaging core with 1024×768 pixels and 12 μm pixel pitch. The NETD is less than 40 mK (available upon request) or 50 mK. The maximum frame rate is 80 Hz.
Dione S 1024 CAM is a LWIR uncooled thermal imaging SWaP module with housing supporting M34/M45 lens (optional).
Dione S 1024 CAM series benefit from Xenics image enhancement for advanced image processing while keeping power consumption low. Moreover, GenICam compliance and the availability of multiple lenses provide a high level of tunability for optimal integration into many systems.
The compact Dione S 1024 CAM series find applications in safety and security, transportation and industrial process monitoring.
Benefits and Features:
• Ultra-compact size, low weight and power (SWaP)
• 1024×768 microbolometer detector with 12 μm pixel pitch
• Frame rates up to 80 Hz
• Detector NETD is less than 40 mK (available upon request) or 50 mK
• Uncooled with mechanical shutter
| Dione S 1024 CAM 40 mK | Dione S 1024 CAM 50 mK | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 60 x 55 x 39* | 65 x 62 x 40* | 60 x 55 x 39* | 65 x 62 x 40* |
| Weight [gr] - excluding lens | 188*| 190* | 188*| 190* |
| Optical interface (optional) | M34x0.5 or M45x0.75 | M34x0.5 or M45x0.75 |
| Connector general I/O | SAMTEC ST5-30-1.50-L-D-P-TR | SAMTEC ST5-30-1.50-L-D-P-TR |
| Dione S 1024 CAM 40 mK | Dione S 1024 CAM 50 mK | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -40 to +85 | From -40 to +85 |
| Average power consumption | 2.3 W (at 60 Hz) | 2.3 W (at 60 Hz) |
| Power supply voltage | DC 5 V | DC 5 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G | 5 g [20 to 2000 Hz], MIL-STD810G |
| Regulatory compliance | RoHS | RoHS |
| Dione S 1024 CAM 40 mK | Dione S 1024 CAM 50 mK | |
| Image format [pixels] | 1024 x 768 | 1024 x 768 |
| Pixel pitch [µm] | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 12.29 x 9.432 [15.49 diagonal] | 12.29 x 9.432 [15.49 diagonal] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <40 [at 30 Hz, 300K, F/1], available upon request | <50 [at 30 Hz, 300K, F/1] |
| Spectral range [µm] | 8 - 14 | 8 - 14 |
| Pixel operability | >99.5% | >99.5% |
| Max frame rate [full frame] [Hz] | 80 | 80 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Region of interest | Yes | Yes |
| Analog-to-Digital [ADC] [bits] | 14 | 14 |
| Command and control | SAMTEC ST5 connector | SAMTEC ST5 connector |
| Digital output format | 16bit DV**, MIPI CSI-2** | 16bit DV**, MIPI CSI-2** |
| Trigger | SAMTEC ST5 connector | SAMTEC ST5 connector |
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
Our ultraviolet cameras are based on the proven design of the FXO series. The fast CoaXPress-12 interface provides outstanding performance in terms of ultra-low trigger latency, faster frame rate and constant data rate. The 10GigE interface option is an economical, highly stable alternative with advantages for long data lines up to 100m. Sony Pregius UV sensors combine high resolution, high dynamic range and superior sensitivity in the wavelength range of 200 – 400 nm.
Our ultraviolet cameras are optimized for deployment in industrial automation processes thanks to advanced signal voltages, temperature stability, I/O control, integrated strobe controller, and feature-rich firmware.
Technical highlights:
ECO-4IO cameras are master in LED illumination and communication and can control the timing for illumination precisely. 4 power outputs and 4 inputs (0-24 Volt) provide a maximum of control. Each output can be configured separately to fit the task and type of illumination. Together with a fully programmable sequencer, new possibilities are made available for your applications.
The FXO stands for excellent image quality. The fast 10GigE interface is an extremely economical interface and at the same time offers excellent conditions for use in larger networks. The large framebuffer and packet resend ensure reliable top frame rates. Up to 100 m cable length is supported by the modern network technology of the FXO.
An excellent, low-noise image with high dynamics is complemented by a comprehensive feature set. The Sony Pregius S sensors used are characterized by high light sensitivity and best homogeneity. Signal voltages, temperature resistance, I/O control, integrated strobe controller and firmware features are aimed at applications in industrial automation.
Technical highlights:
