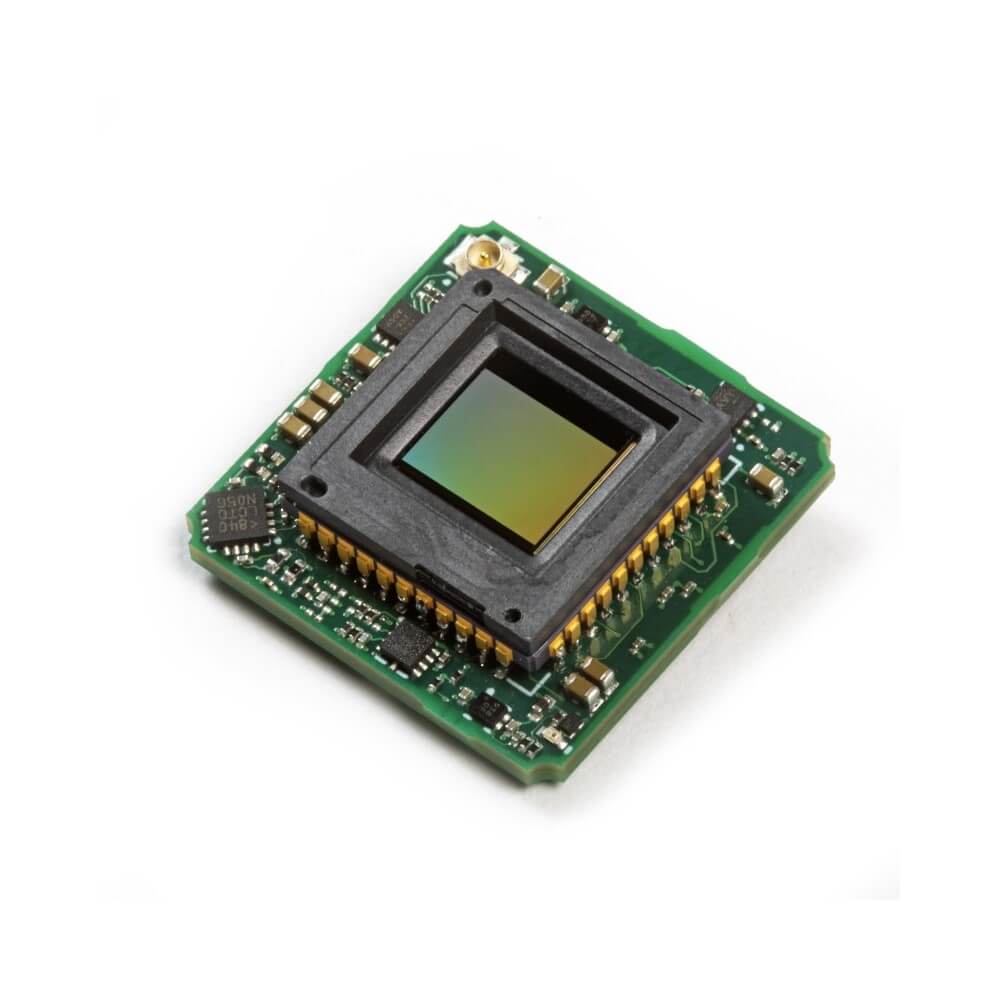

The Dione 640 OEM series is based on an uncooled 12 μm pitch microbolometer detector with a 640 × 480 resolution. The NETD is less than 40 mK (available upon request) or 50 mK.
The cores are optimized for low SWaP (Size, Weight and Power). The overall size of the OEM core is 25 x 25 x 10 mm3 and weight is 6 gr. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione 640 versions have the same SAMTEC ST5 connector and are GenICam compliant.
The ultra-compact Dione 640 OEM series find application in safety and security systems, as well as in industrial thermal imaging systems.
Benefits & Feature
• State-of-the-art 640×480 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shutterless and uncooled operation
| Dione 640 OEM 40 mK | Dione 640 OEM 50 mK | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 25 x 25 x 10 | 25 x 25 x 10 |
| Weight [gr] | 6 | 6 |
| Connector general I/O | SAMTEC ST5-30-1.50-L-D-P-TR | SAMTEC ST5-30-1.50-L-D-P-TR |
| Dione 640 OEM 40 mK | Dione 640 OEM 50 mK | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 |
| Power consumption [W] | 0.750 (60 Hz operation; 16bit DV) | 0.750 (60 Hz operation; 16bit DV) |
| Power supply voltage | DC 5 V | DC 5 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G | 5 g [20 to 2000 Hz], MIL-STD810G |
| Regulatory compliance | RoHS | RoHS |
| Dione 640 OEM 40 mK | Dione 640 OEM 50 mK | |
| Image format [pixels] | 640 x 480 | 640 x 480 |
| Pixel pitch [µm] | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 7.68 x 5.76 [9.6 diagonal] | 7.68 x 5.76 [9.6 diagonal] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <40 [at 30 Hz, 300K, F/1], available upon request | <50 [at 30 Hz, 300K, F/1] |
| Spectral range [µm] | 8 - 14 | 8 - 14 |
| Pixel operability | >99.5% (excluding 3 peripheral rows and columns) | >99.5% (excluding 3 peripheral rows and columns) |
| Max frame rate [full frame] [Hz] | 60 | 60 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Region of interest | Yes | Yes |
| Min region size [pixels] | 80 x 80 | 80 x 80 |
| Analog-to-Digital [ADC] [bits] | 14 | 14 |
| Command and control | SAMTEC ST5 connector | SAMTEC ST5 connector |
| Digital output format | 16bit DV (standard), MIPI-CSI-2 (optional), UVC (optional) | 16bit DV (standard), MIPI-CSI-2 (optional), UVC (optional) |
| Trigger | SAMTEC ST5 connector | SAMTEC ST5 connector |
