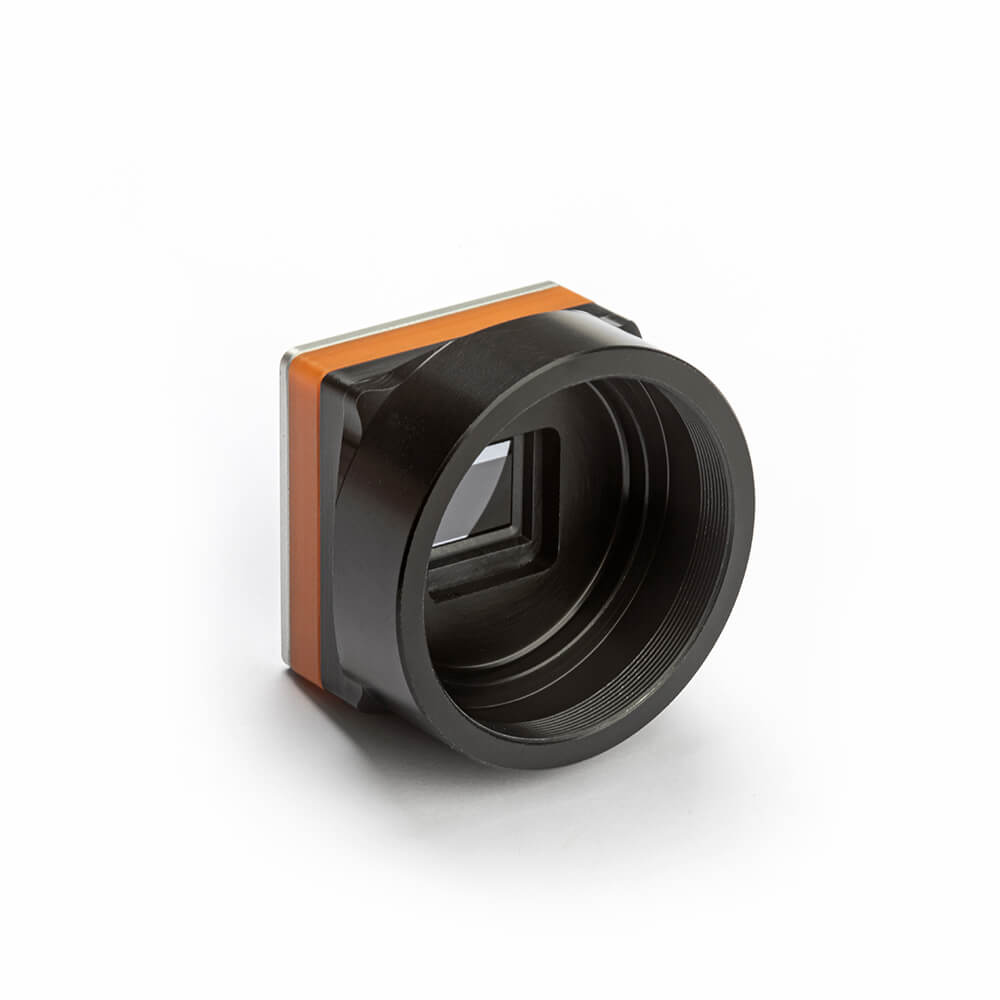

The Dione 640 CAM series is based on the Dione 640 OEM thermal imaging core with 640 x 480 pixels and 12 μm pixel pitch. The NETD is less than 40 mK (available upon request) or 50 mK. The maximum frame rate is 60 Hz.
The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione 640 CAM is both lightweight and small. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione 640 CAM versions have the same SAMTEC ST5 connector and are GenICam compliant. Dione 640 CAM is a LWIR uncooled thermal imaging SWAP module with housing supporting M24/M34 lens (optional).
The ultra-compact Dione 640 CAM series find application in safety and security systems, as well as in industrial thermal imaging systems.
Benefits & Features
• State-of-the-art 640×480 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shutterless and uncooled operation
• Availability of multiple lenses (optional) adds flexibility to integration programs
| Dione 640 CAM 40 mK | Dione 640 CAM 50 mK | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 31 x 31 x 22* | 40 x 40 x 24* | 31 x 31 x 22* | 40 x 40 x 24* |
| Weight [gr] - excluding lens | 27* | 30 * | 27* | 30 * |
| Optical interface | M24 or M34 x 0.5 | M24 or M34 x 0.5 |
| Connector general I/O | SAMTEC ST5-30-1.50-L-D-P-TR | SAMTEC ST5-30-1.50-L-D-P-TR |
| Dione 640 CAM 40 mK | Dione 640 CAM 50 mK | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 |
| Power consumption [W] | 0.750 (60 Hz operation; 16bit DV) | 0.750 (60 Hz operation; 16bit DV) |
| Power supply voltage | DC 5 V | DC 5 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G | 5 g [20 to 2000 Hz], MIL-STD810G |
| Regulatory compliance | RoHS | RoHS |
| Dione 640 CAM 40 mK | Dione 640 CAM 50 mK | |
| Image format [pixels] | 640 x 480 | 640 x 480 |
| Pixel pitch [µm] | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 7.68 x 5.76 [9.6 diagonal] | 7.68 x 5.76 [9.6 diagonal] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <40 [at 30 Hz, 300K, F/1], available upon request | <50 [at 30 Hz, 300K, F/1] |
| Spectral range [µm] | 8 - 14 | 8 - 14 |
| Pixel operability | >99.5% (excluding 3 peripheral rows and columns) | >99.5% (excluding 3 peripheral rows and columns) |
| Max frame rate [full frame] [Hz] | 60 | 60 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Region of interest | Yes | Yes |
| Min region size [pixels] | 80 x 80 | 80 x 80 |
| Analog-to-Digital [ADC] [bits] | 14 | 14 |
| Command and control | SAMTEC ST5 connector | SAMTEC ST5 connector |
| Digital output format | 16bit DV (standard), MIPI-CSI-2 (optional), UVC (optional), USB (optional) | 16bit DV (standard), MIPI-CSI-2 (optional), UVC (optional), USB (optional) |
| Trigger | SAMTEC ST5 connector | SAMTEC ST5 connector |
Features:
● Reversible Type-C port connection
● Sony STARVIS and Pregius CMOS sensors
● Single-board cameras
Matrox® Indio provides the industrial I/O and communication capabilities to turn any PC running Matrox Imaging vision software into a genuine vision controller. It provides discrete inputs and outputs managed in hardware for the real-time synchronization of a vision application with automation devices. It also provides Gigabit Ethernet connectivity for interfacing with programmable logic/automation controllers or GigE Vision® cameras equipped for Power-over-Ethernet (PoE).
Key Features:
The FXO series combines the outstanding image quality of the Sony Pregius S sensor with state-of-the-art, fast interfaces. 10GigE, 25GigE and CoaXPress-12 are supported. The integrated strobe controller facilitates the construction of very slim applications.
The Pregius S sensor from Sony with global shutter shines with outstanding image quality and is the heart of the FXO series. The 2.74 µm – 9 µm pixel has a high light sensitivity combined with very low noise. The excellent homogeneity and dynamic range of the image set standards.
An elaborately milled housing for each sensor provides the optimum temperature distribution for this high-performance sensor. The FXO combines the outstanding sensor with the fastest interfaces in the machine vision sector.
With its excellent image, fast interfaces, versatile inputs and an integrated multichannel strobe controller, the FXO offers an extremely flexible, powerful and economical camera concept. The small pixel enables more favorable lenses for the high resolutions.
The FXO series with CXP interface is available in versions with one or two CoaXPress-12 connections. This enables the FXO to achieve data rates of 12.5 or 25 Gbit/s.
The FXO 10GigE offers resolutions of up to 24.5 MP and frame rates of up to 124 fps.
Brand new and incredibly fast: the FXO 25GigE delivers up to 671 fps with a resolution of 1.8 MP.
The highest demands on image quality and data rate are the field of application of the FXO. The small pixels allow a high resolution in the application despite the small design and the use of inexpensive lenses.
The integrated GenICam strobe controller effectively saves costs by reducing the number of components. In plant engineering, the fast FXO scores with the latest sensor technology, the extended temperature range and many I/O interfaces.
