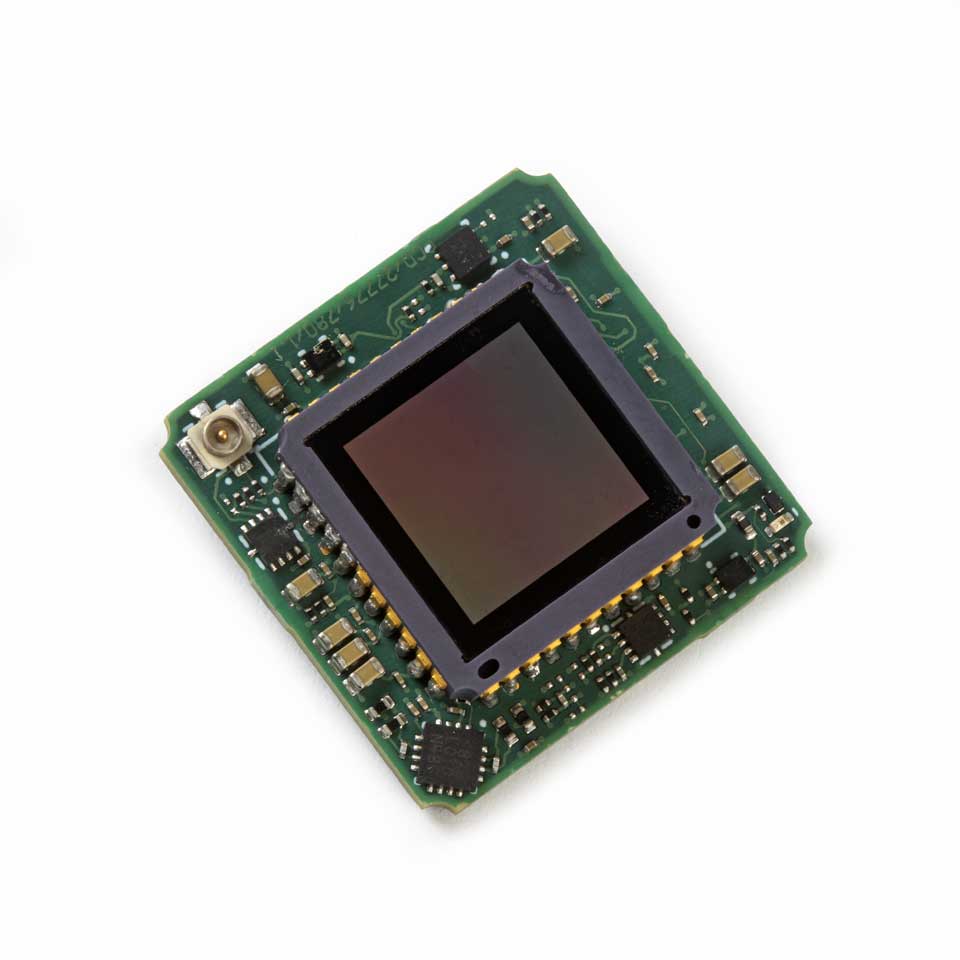

The Dione 320 OEM is based on a state-of-the-art detector with a 320×240 pixels and 12 μm pixel pitch. The NETD is less than 40 mK (available upon request) or 50 mK.
The cores are optimized for low SWaP (Size, Weight and Power). The overall size of the OEM core is 25 x 25 x 10 mm3 and weight is 6 gr. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione 320 versions have the same SAMTEC ST5 connector and are GenICam compliant.
The compact Dione 320 OEM series find application in industrial machine vision, medical, scientific and advanced research, safety and security systems.
Benefits & Features
• State-of-the-art detector with 12 μm pitch
• Industry leading SWaP (Size, Weight and Power)
• GenICam compliant for easy integration
• Shutterless operation
• High level of tunability for optimal integration into many systems
| Dione 320 OEM 40 mK | Dione 320 OEM 50 mK | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 25 x 25 x 10 | 25 x 25 x 10 |
| Weight [gr] - excluding lens | 6 | 6 |
| Connector general I/O | SAMTEC ST5-30-1.50-L-D-P-TR | SAMTEC ST5-30-1.50-L-D-P-TR |
| Dione 320 OEM 40 mK | Dione 320 OEM 50 mK | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 |
| Power consumption [mWatt] | 570 mWatt (at 60 Hz operation; 16bit DV) | 570 mWatt (at 60 Hz operation; 16bit DV) |
| Power supply voltage | DC 5 V | DC 5 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G | 5 g [20 to 2000 Hz], MIL-STD810G |
| Regulatory compliance | RoHS | RoHS |
| Dione 320 OEM 40 mK | Dione 320 OEM 50 mK | |
| Image format [pixels] | 320 x 240 | 320 x 240 |
| Pixel pitch [µm] | 12 | 12 |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 3.84 x 2.88 [diagonal 4.8] | 3.84 x 2.88 [diagonal 4.8] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <40 [at 60 Hz, 300K, F/1], available upon request | <50 [at 60 Hz, 300K, F/1] |
| Spectral range [µm] | 8 - 14 | 8 - 14 |
| Pixel operability | >99.8% | >99.8% |
| Max frame rate [full frame] [Hz] | 60 | 60 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Region of interest | Yes | Yes |
| Min region size [pixels] | 80 x 80 | 80 x 80 |
| Analog-to-Digital [ADC] [bits] | 14 | 14 |
| Command and control | SAMTEC ST5 connector | SAMTEC ST5 connector |
| Digital output format | 16bit DV (standard) , MIPI CSI-2 (optional) | 16bit DV (standard) , MIPI CSI-2 (optional) |
| Trigger | SAMTEC ST5 connector | SAMTEC ST5 connector |
