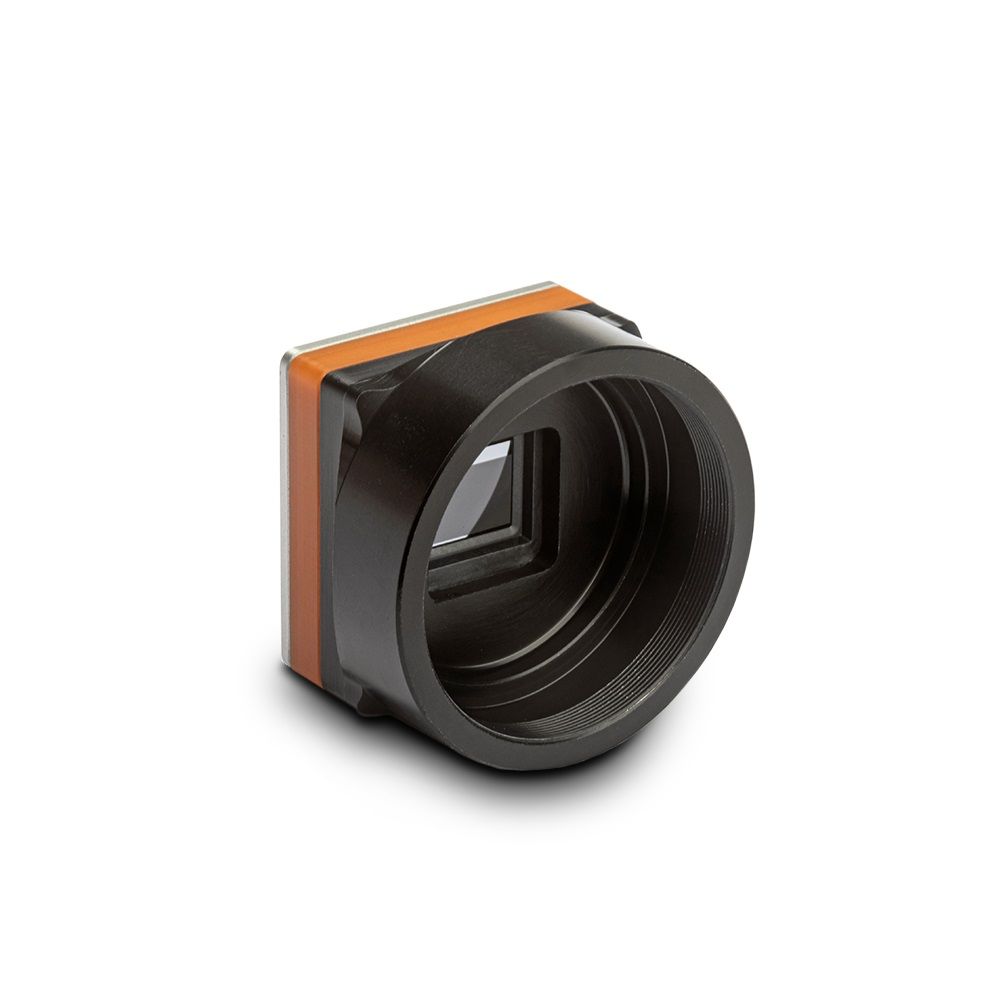

The Dione 320 CAM series is based on an uncooled state-of-the-art 12 μm pitch detector with 320×240 pixels and NETD of less than 40 mK (available upon request) or 50 mK.
The camera cores are optimized for low SWaP (Size, Weight, and Power). The Dione 320 CAM is both light weight and small. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione 320 versions have the same SAMTEC ST5 connector and are GenICam compliant. Dione 320 CAM is a LWIR uncooled thermal imaging camera SWaP module with housing supporting M24/M34 lens (optional)
The compact Dione 320 CAM series find applications in industrial machine vision, medical, scientific and advanced research, safety and security systems.
Benefits & Features
• State-of-the-art detector with 12 μm pitch
• Industry leading SWaP (Size, Weight and Power)
• GenICam compliant for easy integration
• Shutterless operation
• Availability of multiple lenses (optional) add flexibility to integration programs
| Dione 320 CAM 40 mK | Dione 320 CAM 50 mK | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 31 x 31 x 22* | 40 x 40 x 24* | 31 x 31 x 22* | 40 x 40 x 24* |
| Weight [gr] - excluding lens | 27* | 30* | 27* | 30* |
| Optical interface (optional) | M24 or M34 x0.5 | M24 or M34 x0.5 |
| Connector general I/O | SAMTEC ST5-30-1.50-L-D-P-TR | SAMTEC ST5-30-1.50-L-D-P-TR |
| Dione 320 CAM 40 mK | Dione 320 CAM 50 mK | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -45 to +85 | From -45 to +85 |
| Power consumption [mWatt] | 570 mWatt (at 60 Hz operation; 16bit DV) | 570 mWatt (at 60 Hz operation; 16bit DV) |
| Power supply voltage | DC 5 V | DC 5 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G | 5 g [20 to 2000 Hz], MIL-STD810G |
| Regulatory compliance | RoHS | RoHS |
| Dione 320 CAM 40 mK | Dione 320 CAM 50 mK | |
| Image format [pixels] | 320 x 240 | 320 x 240 |
| Pixel pitch [µm] | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 3.84 x 2.88 [diagonal 4.8] | 3.84 x 2.88 [diagonal 4.8] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <40 [at 60 Hz, 300K, F/1], available upon request | <50 [at 60 Hz, 300K, F/1] |
| Spectral range [µm] | 8 - 14 | 8 - 14 |
| Pixel operability | >99.8% | >99.8% |
| Max frame rate [full frame] [Hz] | 60 | 60 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Region of interest | Yes | Yes |
| Min region size [pixels] | 80 x 80 | 80 x 80 |
| Analog-to-Digital [ADC] [bits] | 14 | 14 |
| Command and control | SAMTEC ST5 connector | SAMTEC ST5 connector |
| Digital output format | 16bit DV**, MIPI CSI-2** | 16bit DV**, MIPI CSI-2** |
| Trigger | SAMTEC ST5 connector | SAMTEC ST5 connector |
