The Dione 1280 OEM series is based on an uncooled 12 μm pitch microbolometer detector with a 1280 × 1024 resolution. The NETD is less than 40 mK (available upon request) or 50 mK.

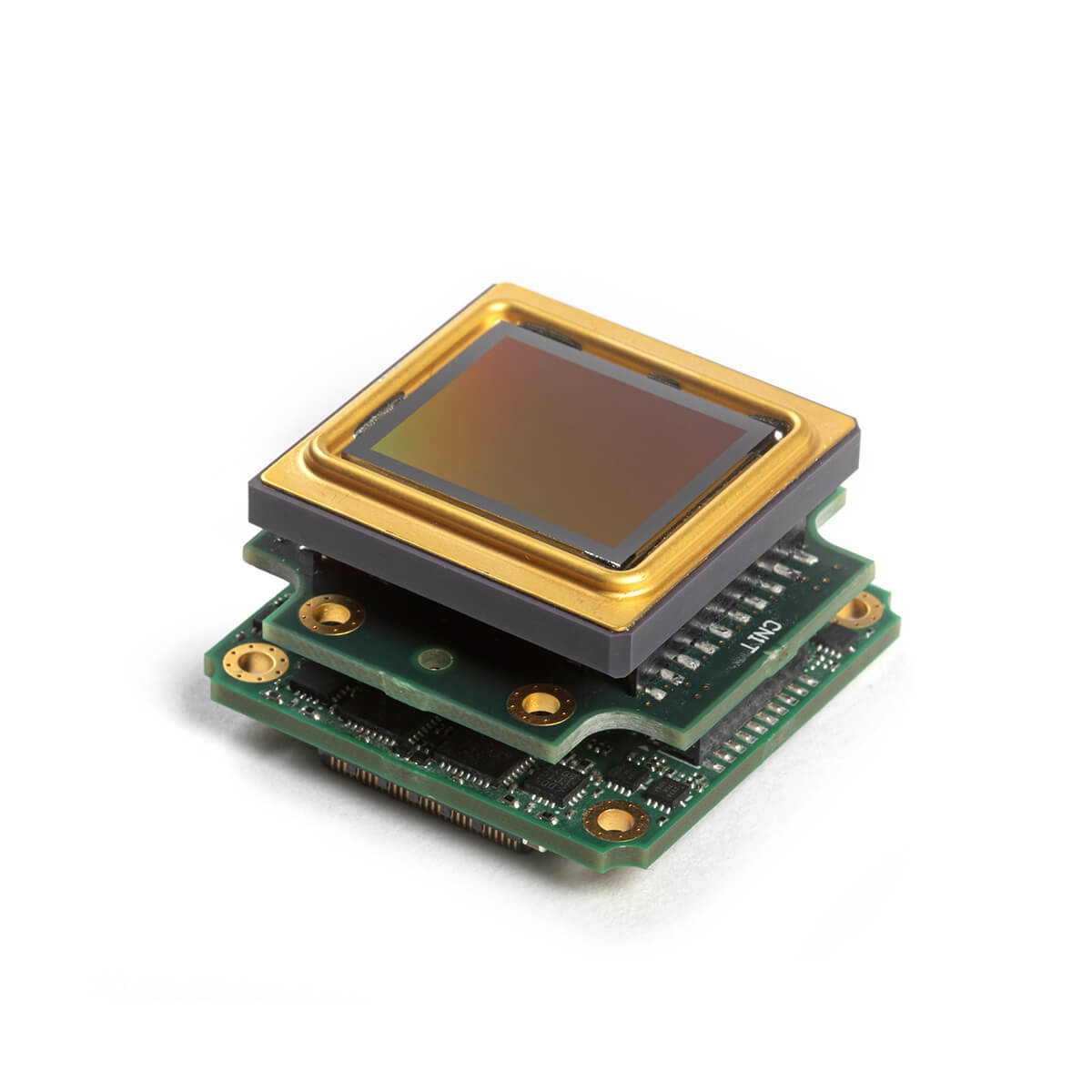

The cores are optimized for low SWaP (Size, Weight and Power). The overall size of the OEM core is 35 x 35 x 23.5 mm3 and weight is 27 gr. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione 1280 versions have the same SAMTEC ST5 connector and are GenICam compliant.
The ultra-compact Dione 1280 OEM series find application in safety and security systems, as well as in industrial thermal imaging systems.
Benefits & Features
• State-of-the-art 1280 × 1024 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shutterless and uncooled operation
| Dione 1280 OEM 40 mK | Dione 1280 OEM 50 mK | |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 35 x 35 x 23.5 | 35 x 35 x 23.5 |
| Weight [gr] - excluding lens | 27 | 27 |
| Connector general I/O | SAMTEC ST5-30-1.50-L-D-P-TR | SAMTEC ST5-30-1.50-L-D-P-TR |
| Dione 1280 OEM 40 mK | Dione 1280 OEM 50 mK | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -40 to +85 | From -40 to +85 |
| Average power consumption | 1.9 W (at 30 Hz) & 2.1 W (at 60 Hz) | 1.9 W (at 30 Hz) & 2.1 W (at 60 Hz) |
| Power supply voltage | DC 5 V | DC 5 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G | 5 g [20 to 2000 Hz], MIL-STD810G |
| Regulatory compliance | RoHS | RoHS |
| Dione 1280 OEM 40 mK | Dione 1280 OEM 50 mK | |
| Image format [pixels] | 1280 x 1024 | 1280 x 1024 |
| Pixel pitch [µm] | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 15.36 x 12.29 [19.67 diagonal] | 15.36 x 12.29 [19.67 diagonal] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <40 [at 30 Hz, 300K, F/1], available upon request | <50 [at 30 Hz, 300K, F/1] |
| Spectral range [µm] | 8 - 14 | 8 - 14 |
| Pixel operability | >99.5% (excluding 3 peripheral rows and columns) | >99.5% (excluding 3 peripheral rows and columns) |
| Max frame rate [full frame] [Hz] | 60 | 60 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Region of interest | Yes | Yes |
| Min region size [pixels] | 80 x 80 | 80 x 80 |
| Analog-to-Digital [ADC] [bits] | 14 | 14 |
| Command and control | SAMTEC ST5 connector | SAMTEC ST5 connector |
| Digital output format | 16bit DV (standard), MIPI CSI-2 (optional) | 16bit DV (standard), MIPI CSI-2 (optional) |
| Trigger | SAMTEC ST5 connector | SAMTEC ST5 connector |
Machine vision and deep learning edge IoT device
Matrox® Iris GTX is the next evolution of smart cameras from Matrox Imaging. Offering higher resolution sensors and substantially more processing power than its immediate predecessor, Matrox Iris GTX provides exceptional performance for a compact all-in-one vision system. Paired with flowchart-based Matrox Design Assistant® X1 software, engineers and technicians can quickly configure and deploy machine vision to the Matrox Iris GTX smart cameras. Video capture, analysis, classification, location, measurement, reading, verification, communication, and I/O operations—as well as a web-based operator interface—are all set up within the same software. Matrox Iris GTX smart cameras are model edge IoT devices, performing data acquisition and analytics, and providing results nearest to the manufacturing
10 GigE and Dual GigE Vision are the most easy way to profit of high interface bandwidth together with the advantages of standard networking technologies. An advantage is the reliable, cost-effective transmission of the image data over a distance of more than 100 m with standard network technology. The 10GigE and GigE cameras of the HR series impress with their housing concept, the wide-range lenses and the unique picture quality. The clean design according to well established standards like GigE Vision, 10 GigE Vision and GenICam ensure rapid integration into the final application.
The ECO-series is compelling by virtue of its extremely compact design (38 x 38 x 33 mm) and offers the best value for money. Resolution ranging from VGA to 5 MegaPixel combined with high frame rates. The ECO is small, robust, fit for the factory floor, manufactured with precision, safe to connect, offers an LED controller, is PLC ready and reliable.
The successful EXO series is the shining basis of the EXO Tracer. The Tracer comes with identical camera features and additionally with a fully functional lens control (focus, zoom, aperture). Lens mount is a Micro Four Thirds (MFT) mount, covering all electric connections. Due to the size of the MFT Bayonet, the Tracer is a bit larger than the original EXO in dimensions. Still, the excellent thermal concept of the EXO qualifies for a operating temperature of up to 60°C.
All MFT lenses feature a specific beam geometry on the sensor side of the lens, which works in perfect harmony to sensors between 2/3″ and 1.2″. A nearly perfect flatfield is the compelling result. Together with up to 72dB dynamic range and up to 20 MP resolution, the Tracer delivers excellent image quality with its highly sensitive sensors.
The lens properties are integrated into the camera’s GenICam 3.0 tree, any GenICam-driven software is immediately able to use lens control without additional drivers. Same thing is valid for the integrated LED strobe control: All items adjustable via GenICam properties. This permits effortless and quick machine vision integration.
Tests at SVS-Vistek showed a surprising high repeatability of the lenses, even after 1 Mio focus cycles. Focus and zoom times are similar to what you know from lenses in photography.
