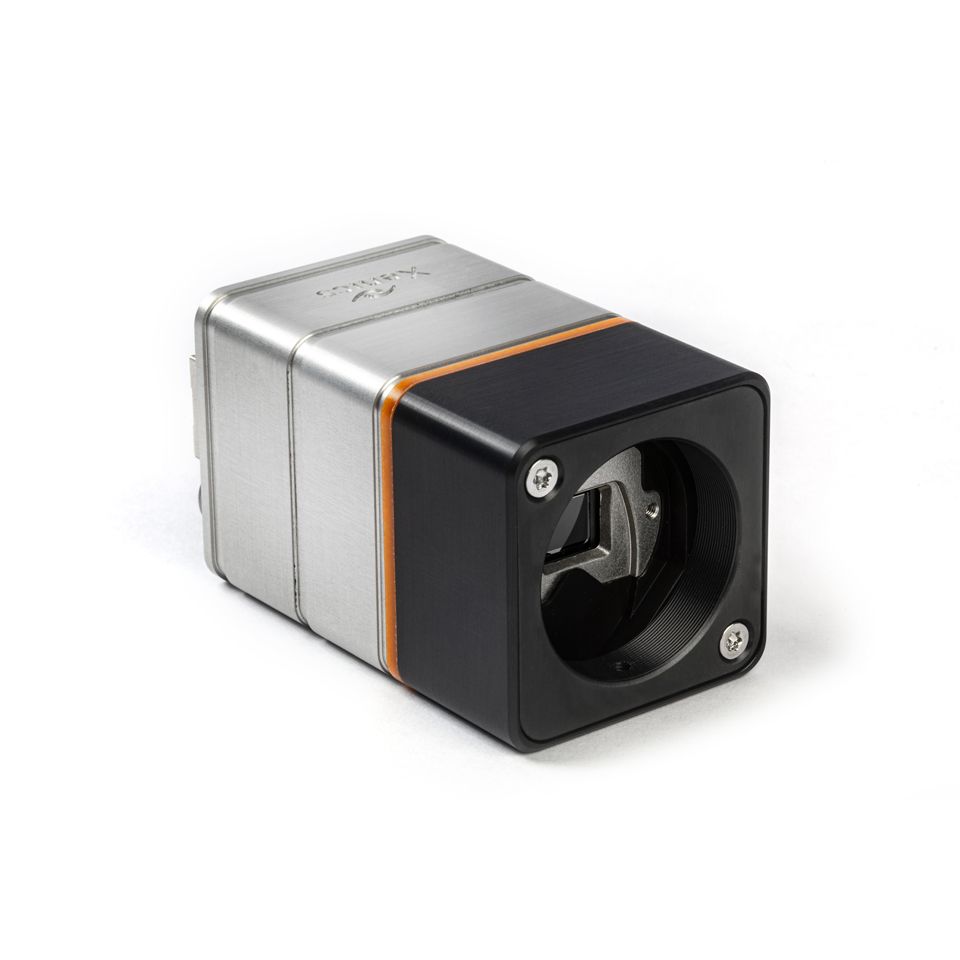

The Ceres V 640 is based upon the Dione 640 OEM thermal imaging core with 640×480 pixels and 12 μm pixel pitch. The camera offers superior thermal imaging capabilities, thanks to the state-of-the-art microbolometer detector and on-board image processing.
The Ceres V 640 camera outputs full frame images at 60 Hz via either a CameraLink or GigE Vision interface — all GenlCam compliant.
The compact size, excellent image quality and GenlCam compliant interfacing allow for easy integration in demanding industrial, scientific and security thermal imaging applications.
The camera comes either in a no-lens configuration (camera only with M24x0.5 and M34x0.5 optical mount), or with four different HFOV (Horizontal Field-Of-View) options: 8, 12, 24 or 50 degrees.
Benefits & Features
• Compact and high-resolution
• Superior on-board image processing performance (optimized image quality)
• GenICam compliant
• Uncooled operation
• Flexible optical mount and lens options
| Ceres V 640 GigE | Ceres V 640 CL | |
| Approximate dimensions – excluding lens [width x height x length] [mm] | 45 x 45 x 75 | 45 x 45 x 67 |
| Weight [gr] | 207 | 200 |
| Optical interface | M24 & M34 x 0.5 | M24 & M34 x 0.5 |
| Connector GigE | RJ45 | - |
| Connector CameraLink | - | SDR-26 |
| Connector power | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
| Connector trigger | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
| Connector general I/O | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
| Ceres V 640 GigE | Ceres V 640 CL | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Storage temperature [°C] | From -40 to +85 | From -40 to +85 |
| Power consumption [W] | 4 | 3.5 |
| Power supply voltage | DC 12 V | DC 12 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g (20 to 2000 Hz), MIL-STD810G | 5 g (20 to 2000 Hz), MIL-STD810G |
| IP rating | IP40 | IP40 |
| Regulatory compliance | RoHS, CE | RoHS, CE |
| Ceres V 640 GigE | Ceres V 640 CL | |
| Image format [pixels] | 640x480 | 640x480 |
| Pixel pitch [µm] | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 7.68 x 5.76 (diagonal 9.6) | 7.68 x 5.76 (diagonal 9.6) |
| Detector NETD (Noise Equivalent Temperature Difference) [mK] | <60 (at 30Hz, 300K, F/1) | <60 (at 30Hz, 300K, F/1) |
| Spectral range [µm] | 8-14 | 8-14 |
| Pixel operability | >99.5% (excluding 3 peripheral rows and columns) | >99.5% (excluding 3 peripheral rows and columns) |
| Max frame rate [Hz] (full frame) | 60 | 60 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Command and control | GigE | CL |
| Digital output format | GigE | CL |
| Trigger | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
