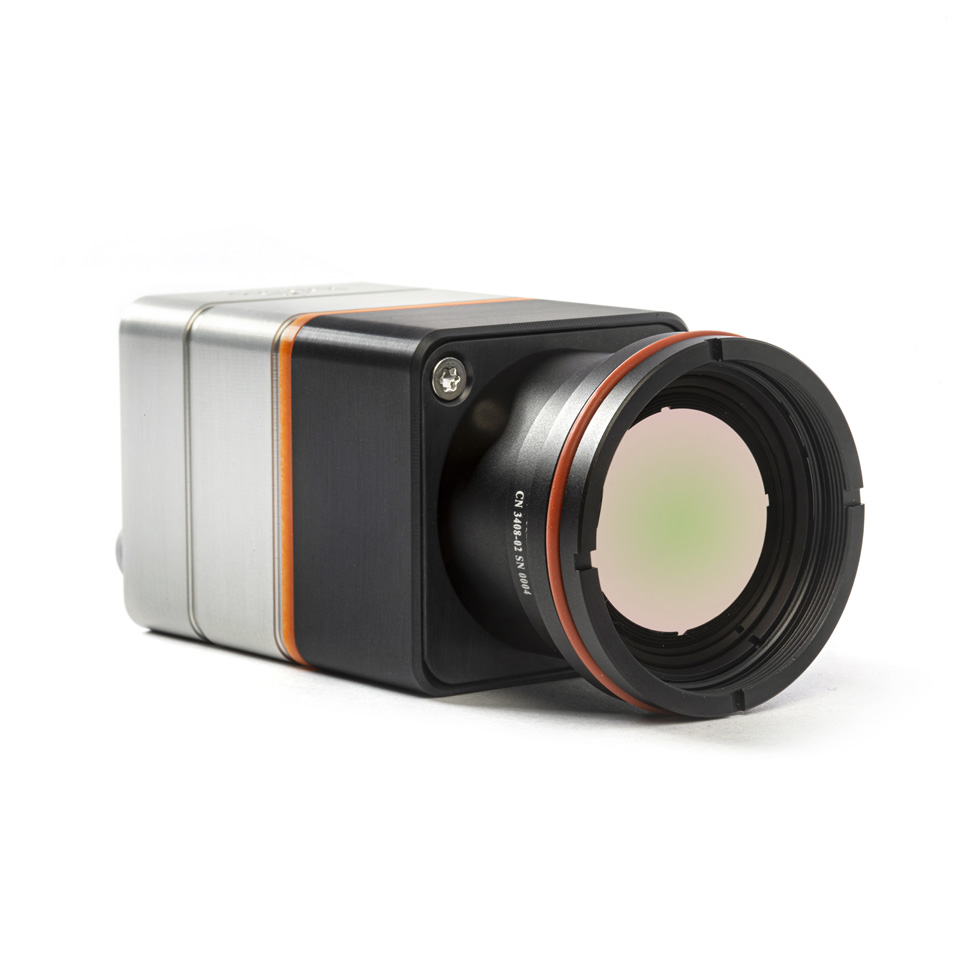

The Ceres T 640 series is based upon the Dione 640 OEM thermal imaging core with 640×480 pixels and 12 μm pixel pitch. The camera offers superior on-board thermographic performance (accuracy, stability) in the temperature range up to 400°C.
The Ceres T 640 camera outputs full frame images at 60 Hz via either a CameraLink or GigE Vision interface.
The compact size, excellent thermographic stability and accuracy, and GenICam compliant interfacing allow for easy integration in demanding industrial thermography applications. The camera comes with two different HFOV (Horizontal Field-Of-View) options: 24 and 50 degrees.
The compact Ceres T 640 series find application in process monitoring, medical and scientific and advanced research.
Benefits & Features
• State-of-the-art 640 × 480 microbolometer detector with 12 μm pitch
• Compact size for industrial thermography applications
• GenICam compliant
• Uncooled operation
| Ceres T 640 24 GigE | Ceres T 640 50 GigE | Ceres T 640 24 CL | Ceres T 640 50 CL | |
| Approximate dimensions – excluding lens [width x height x length] [mm] | 45 x 45 x 75 | 45 x 45 x 75 | 45 x 45 x 67 | 45 x 45 x 67 |
| Approximate lens dimensions [diameter x length] [mm] | 28 x 23 | 32 x 30 | 28 x 23 | 32 x 30 |
| Weight [gr] - including lens | 231 | 249 | 224 | 242 |
| HFOV [°] | 25 | 50 | 25 | 50 |
| Minimum working distance [mm] | 1500 | 500 | 1500 | 500 |
| Optical interface | M24x0.5 | M24x0.5 | M24x0.5 | M24x0.5 |
| Connector GigE | RJ45 | RJ45 | - | - |
| Connector CameraLink | - | - | SDR-26 | SDR-26 |
| Connector power | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
| Connector trigger | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
| Connector general I/O | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
| Ceres T 640 24 GigE | Ceres T 640 50 GigE | Ceres T 640 24 CL | Ceres T 640 50 CL | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 | From -40 to +70 | From -40 to +70 |
| Ambient operating temperature range for thermography [°C] | From +10 to +35 | From +10 to +35 | From +10 to +35 | From +10 to +35 |
| Storage temperature [°C] | From -40 to +85 | From -40 to +85 | From -40 to +85 | From -40 to +85 |
| Power consumption [W] | 4 | 4 | 3.5 | 3.5 |
| Power supply voltage | DC 12 V | DC 12 V | DC 12 V | DC 12 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g (20 to 2000 Hz), MIL-STD810G | 5 g (20 to 2000 Hz), MIL-STD810G | 5 g (20 to 2000 Hz), MIL-STD810G | 5 g (20 to 2000 Hz), MIL-STD810G |
| IP rating | IP40 | IP40 | IP40 | IP40 |
| Regulatory compliance | RoHS | RoHS | RoHS | RoHS |
| Ceres T 640 24 GigE | Ceres T 640 50 GigE | Ceres T 640 24 CL | Ceres T 640 50 CL | |
| Image format [pixels] | 640x480 | 640x480 | 640x480 | 640x480 |
| Pixel pitch [µm] | 12 | 12 | 12 | 12 |
| Detector type | Microbolometer | Microbolometer | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 7.68 x 5.76 (diagonal 9.6) | 7.68 x 5.76 (diagonal 9.6) | 7.68 x 5.76 (diagonal 9.6) | 7.68 x 5.76 (diagonal 9.6) |
| Detector NETD (Noise Equivalent Temperature Difference) [mK] | <60 (at 30Hz, 300K, F/1) | <60 (at 30Hz, 300K, F/1) | <60 (at 30Hz, 300K, F/1) | <60 (at 30Hz, 300K, F/1) |
| Spectral range [µm] | 8-14 | 8-14 | 8-14 | 8-14 |
| Pixel operability | >99.5% (excluding 3 peripheral rows and columns) | >99.5% (excluding 3 peripheral rows and columns) | >99.5% (excluding 3 peripheral rows and columns) | >99.5% (excluding 3 peripheral rows and columns) |
| Max frame rate [Hz] (full frame) | 60 | 60 | 60 | 60 |
| Integration time range [µs] | 20 - 65 | 20 - 65 | 20 - 65 | 20 - 65 |
| Min region size [pixels] | 80 x 80 | 80 x 80 | 80 x 80 | 80 x 80 |
| Analog-to-Digital (ADC) [bits] | 16 | 16 | 16 | 16 |
| Command and control | GigE | GigE | CL | CL |
| Digital output format | GigE | GigE | CL | CL |
| Trigger | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
