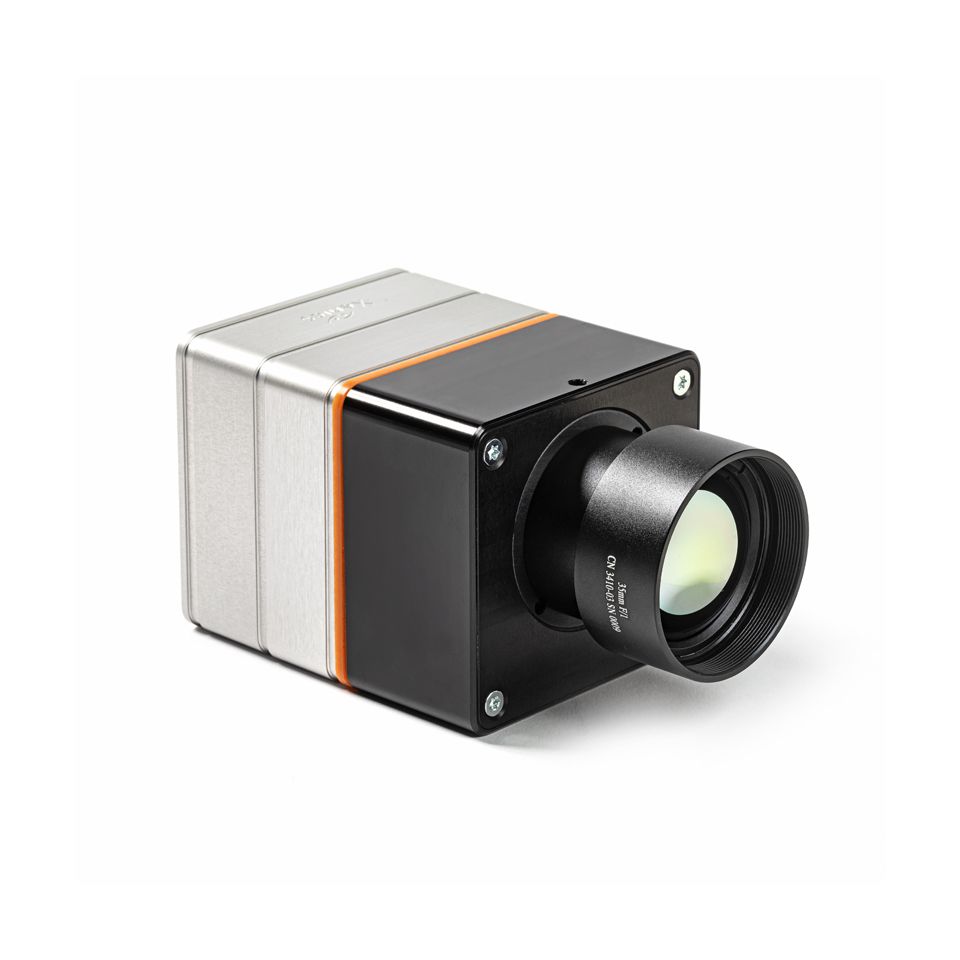

The Ceres T 1280 series is based upon the Dione 1280 OEM thermal imaging core with 1280×1024 pixels and 12 μm pixel pitch. The camera offers superior on-board thermographic performance (accuracy, stability) in the temperature range up to 400°C.
The Ceres T 1280 camera outputs full frame images at 60 Hz via either a CameraLink or GigE Vision interface.
The compact size, excellent thermographic stability and accuracy, and GenICam compliant interfacing allow for easy integration in demanding industrial thermography applications. The camera comes with one HFOV (Horizontal Field-Of-View) option: 48 degrees.
The compact Ceres T 1280 series find application in process monitoring, medical and scientific and advanced research.
Benefits & Features
• Compact size and high-resolution
• Superior on-board thermographic performance (stability, accuracy)
• GenICam compliant
• Uncooled operation
| Ceres T 1280 48 GigE | Ceres T 1280 48 CL | |
| Approximate dimensions – excluding lens [width x height x length] [mm] | 65 x 68 x 84 | 65 x 68 x 81 |
| Approximate lens dimensions [diameter x length] [mm] | 36 x 32 | 36 x 32 |
| Weight [gr] - including lens | 649 | 600 |
| FOV [°] | 47.8 x 37.8 | 47.8 x 37.8 |
| Minimum working distance [mm] | 2000 | 2000 |
| Optical interface | M34x0.5 | M34x0.5 |
| Connector GigE | RJ45 | - |
| Connector CameraLink | - | SDR-26 |
| Connector power | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
| Connector trigger | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
| Connector general I/O | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
| Ceres T 1280 48 GigE | Ceres T 1280 48 CL | |
| Ambient operating temperature range [°C] | From -40 to +70 | From -40 to +70 |
| Ambient operating temperature range for thermography [°C] | From +10 to +35 | From +10 to +35 |
| Storage temperature [°C] | From -40 to +85 | From -40 to +85 |
| Power consumption [W] | 5.5 | 5.0 |
| Power supply voltage | DC 12 V | DC 12 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g (20 to 2000 Hz), MIL-STD810G | 5 g (20 to 2000 Hz), MIL-STD810G |
| IP rating | IP40 | IP40 |
| Regulatory compliance | RoHS | RoHS |
| Ceres T 1280 48 GigE | Ceres T 1280 48 CL | |
| Image format [pixels] | 1280x1024 | 1280x1024 |
| Pixel pitch [µm] | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal [mm] | 15.36 x 12.29 (diagonal 19.67) | 15.36 x 12.29 (diagonal 19.67) |
| Detector NETD (Noise Equivalent Temperature Difference) [mK] | <60 (at 30Hz, 300K, F/1) | <60 (at 30Hz, 300K, F/1) |
| Spectral range [µm] | 8-14 | 8-14 |
| Pixel operability | >99.5% (excluding 3 peripheral rows and columns) | >99.5% (excluding 3 peripheral rows and columns) |
| Max frame rate [Hz] (full frame) | 30 | 30 |
| Integration time range [µs] | 20 - 65 | 20 - 65 |
| Analog-to-Digital (ADC) [bits] | 16 | 16 |
| Command and control | GigE | CL |
| Digital output format | GigE | CL |
| Trigger | Unified connector (Lemo 1B) | Unified connector (Lemo 1B) |
