Application:
| Model | Optics | Electric | Size O x H (mm) | Weight (g) | |||||
| Color | LED Row | Light Emitting L x W (mm | Inner hole diameter (mm) | Voltage (V) | W * | ||||
| Red | White, Blue, Green | ||||||||

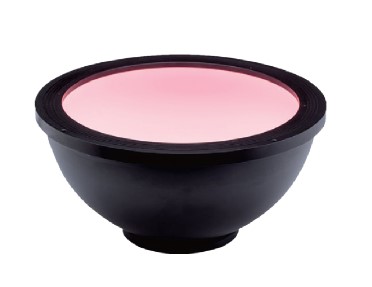

| RDL-44-1 | Red, White, Blue, Green | 1 | 26 | 12 | 24 | 2.6 | 6.6 | 44x35 | 78 |
| RDL-70-1 | Red, White, Blue, Green | 1 | 45 | 12 | 24 | 2.2 | 3.7 | 70x32 | 83 |
| RDL-100-1 | Red, White, Blue, Green | 1 | 66 | 25 | 24 | 7.9 | 13.8 | 116x57 | 235 |
| RDL-120-1 | Red, White, Blue, Green | 1 | 84 | 35 | 24 | 10.0 | 16.6 | 134x62.5 | 295 |
| RDL-150-1 | Red, White, Blue, Green | 1 | 116 | 35 | 24 | 13.7 | 22.1 | 166x81 | 420 |
| RDL-180-1 | Red, White, Blue, Green | 1 | 138 | 30 | 24 | 16.0 | 25.9 | 198x90 | 535 |
| RDL-250-1 | Red, White, Blue, Green | 1 | 216 | 50 | 24 | 25.9 | 40.3 | 266x130 | 1070 |
| RDL-300-1 | Red, White, Blue, Green | 1 | 250 | 55 | 24 | 34.2 | 51.8 | 300x140 | 1500 |
The modular design of the LXB300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight LXB300 together.
The LM75 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. The LM75 has a 80 mm long housing and features 8 high-current LEDs.
The LHI-DO Series is an OverDriveTM only light source meant to provide external illumination for logistics. This light can be used to create tunnel systems capable of illuminating any package of any size and ensure perfect readability no matter the shape or material. The LHI-DO Series is available in 300- and 600 mm lengths.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The LHI-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.
The modular design of the ODLX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight ODLX300 together.
