Application areas: Inspection of appearance defects in plastic parts, inspection of bottle mouth defects, edge positioning of hardware parts, detection of engraving damage, stains and dirt on metal surfaces, various edge extraction techniques, etc.
Foreign matter contamination detection in pharmaceuticals, damage detection of glass end faces, and appearance inspection of molding rings, etc.
Advantages

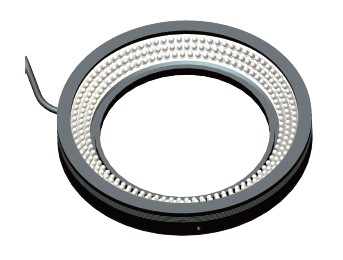

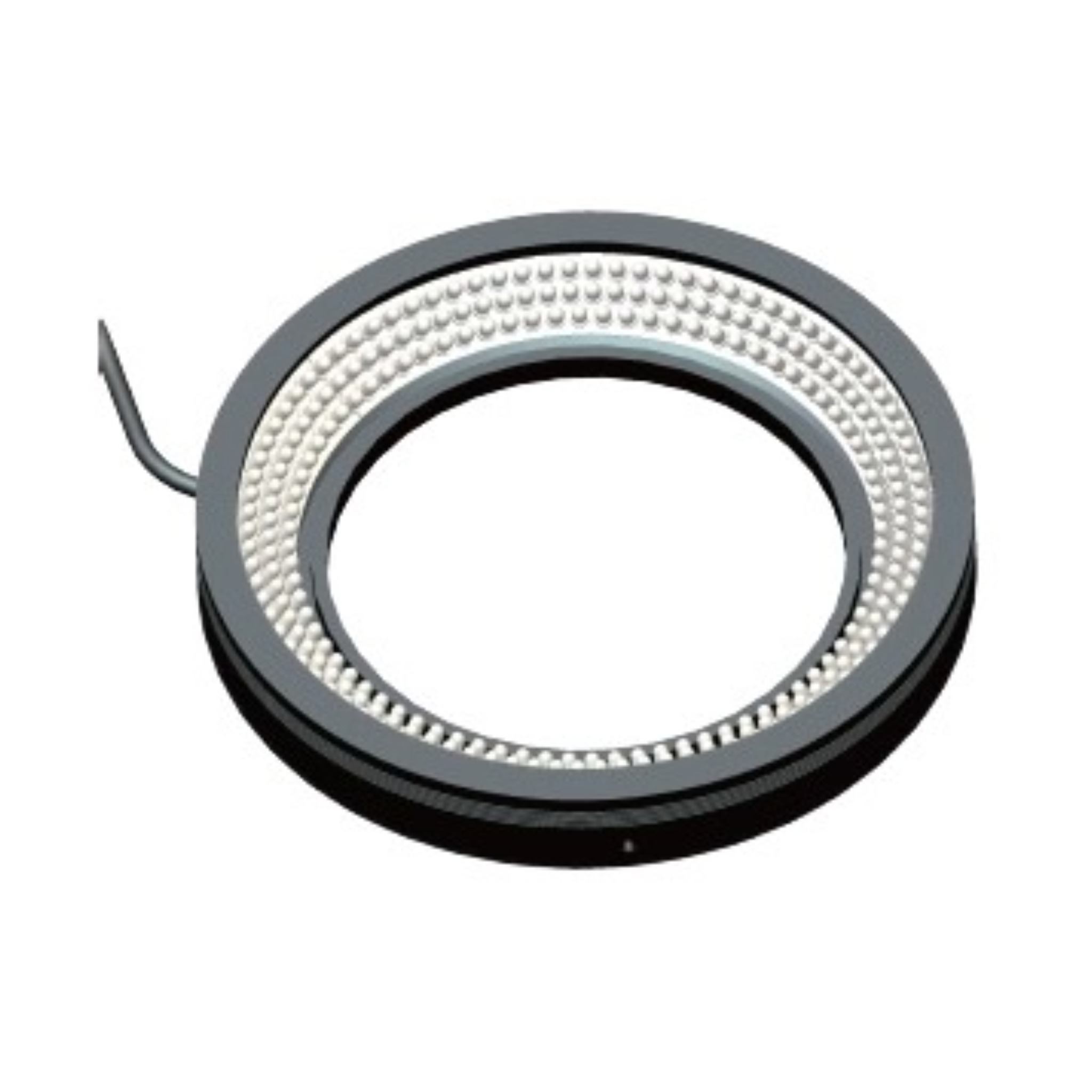

| Model | Optics | Electric | Size (External x Internal x Height) | Weight (g) | |||||
| Color | LED Row | Angle | Working Distance (mm) | Voltage (V) | W (2) * | ||||
| Red | White, Blue, Green | ||||||||
| LRL-48-2-30 | Red, White, Blue, Green | 2 | 30 | 5-8 | 24 | 1.5 | 2.5 | 48x22x18.5 | 50 |
| LRL-50-1-00 | Red, White, Blue, Green | 1 | 00 | 0-10 | 24 | 1 | 1.8 | 50x18x10 | 50 |
| LRL-50-2-30 | Red, White, Blue, Green | 2 | 30 | 5 | 24 | 1.5 | 2.5 | 50x24x16 | 50 |
| LRL-66-3-30 | Red, White, Blue, Green | 3 | 30 | 0-10 | 24 | 2.2 | 4 | 66x30x22 | 125 |
| LRL-74-2-30 | Red, White, Blue, Green | 2 | 30 | 9-14 | 24 | 3 | 4.5 | 74x48x19 | 95 |
| LRL-75-1-00 | Red, White, Blue, Green | 1 | 00 | 0-10 | 24 | 1.5 | 2.1 | 75x43x10 | 67 |
| LRL-90-2-15 | Red, White, Blue, Green | 2 | 15 | 3-10 | 24 | 3.2 | 5 | 90x60x20.6 | 90 |
| LRL-96-1-00 | Red, White, Blue, Green | 1 | 00 | 0-10 | 24 | 2.1 | 3.5 | 96x64x10 | 105 |
| LRL-100-3-30 | Red, White, Blue, Green | 2 | 30 | 12-21 | 24 | 6.3 | 7.5 | 100x70x22 | 170 |
| LRL-120-1-00 | Red, White, Blue, Green | 1 | 00 | 0-10 | 24 | 2.5 | 3.8 | 120x88x10 | 110 |
| LRL-120-3-30 | Red, White, Blue, Green | 3 | 30 | 17-27 | 24 | 7 | 9 | 120x88x22 | 205 |
| LRL-132-3-15 | Red, White, Blue, Green | 3 | 15 | 3-12 | 24 | 9.2 | 11 | 132x96x22 | 275 |
| LRL-146-1-00 | Red, White, Blue, Green | 1 | 00 | 0-10 | 24 | 3.3 | 4.5 | 146x114x10 | 130 |
| LRL-150-4-30 | Red, White, Blue, Green | 4 | 30 | 15-29 | 24 | 13 | 15 | 150x120x22 | 255 |
| LRL-176-1-00 | Red, White, Blue, Green | 1 | 00 | 0-10 | 24 | 4.3 | 6 | 176x144x10 | 155 |
| LRL-180-5-30 | Red, White, Blue, Green | 5 | 30 | 24-34 | 24 | 7 | 13 | 180x132x29 | 518 |
| LRL-206-1-00 | Red, White, Blue, Green | 1 | 00 | 0-10 | 24 | 5.5 | 8.2 | 206x174x10 | 175 |
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
The modular design of the ODLX300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in OverDrive™ strobe-only mode. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight ODLX300 together.
The LWE150 features a stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWE150 has an integrated Multi-Drive™ constant-current driver that operates continuous operation or in OverDrive™ strobe mode, depending on wiring configuration. NPN or PNP trigger signals can be used to control the pulse of the light.
The modular design of the LXB300 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The LXB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 300 mm. Direct connect up to eight LXB300 together.
