Application areas: Inspection of electronic components on substrates, visual inspection of secondary battery separators, damage and dent detection of touch panels, etc.
Advantages
| model | Optics | Rated power (W) | Dimensions I×E×D (mm) | Weight (g) | |||
| color | Working distance (mm) | Light emission L×W (mm) | red | White, blue, green | |||

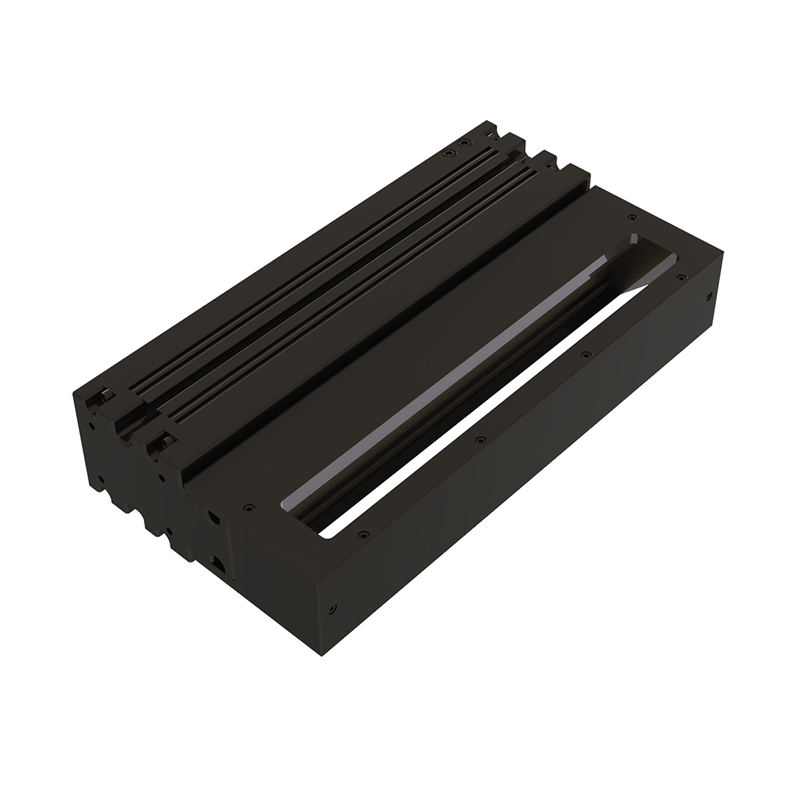

| LCALL-100 | Red, white, blue, green | 130-140 | 100x20 | 38 | 38 | 130x50x128 | 1200 |
| LCALL-150 | Red, white, blue, green | 130-140 | 150x20 | 50 | 58 | 180x50x128 | 1800 |
| LCALL-200 | Red, white, blue, green | 130-140 | 200x20 | 50 | 58 | 230x50x128 | 2400 |
| LCALL-250 | Red, white, blue, green | 130-140 | 250x20 | 58 | 68 | 280x50x128 | 3000 |
| LCALL-300 | Red, white, blue, green | 130-140 | 300x20 | 58 | 68 | 330x50x128 | 3600 |
The LCZE300 is a SmartVisionLink™-enabled linear light. With the addition of the BTM-1000 Bluetooth module, the LCZE300 can be wirelessly adjusted for intensity levels. The LCZE300 can be connected in a series of up to six lights, either through direct-connect or daisy-chain, to create a total of 6 independently controllable lighting zones.
The LWB300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWB300 features an integrated constant current driver built into the light and runs in continuous operation. NPN or PNP trigger signal input can be used to control the turning on/off input of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or onboard manual potentiometer. Daisy-chain up to six LWB300 together.
The L300G2 linear light features an integrated Multi-Drive™ driver that can produce up to 390,000 lux. NPN or PNP triggers can control the light for either OverDrive™ or continuous operation. Control light intensity via 1 – 10 VDC analog intensity line or remotely using SmartVisionLink™. Daisy-chain up to six L300G2 lights in series using a standard 5-pin M12 jumper cable.
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
