Application areas: Product surface defect inspection, image scanning, LCD panel defect inspection, connector pin flatness inspection, damage and appearance inspection of slender objects, damage inspection of metals with hairline cracks, etc.
Advantages
• Flexible design of illumination width, length, and size
• Wavelength and color temperature are selectable, and different color combinations are also possible.
• Easy to install and compact design
• The illumination angle can be adjusted arbitrarily according to usage requirements.
• You can choose a diffuser plate to increase the uniformity of the light source

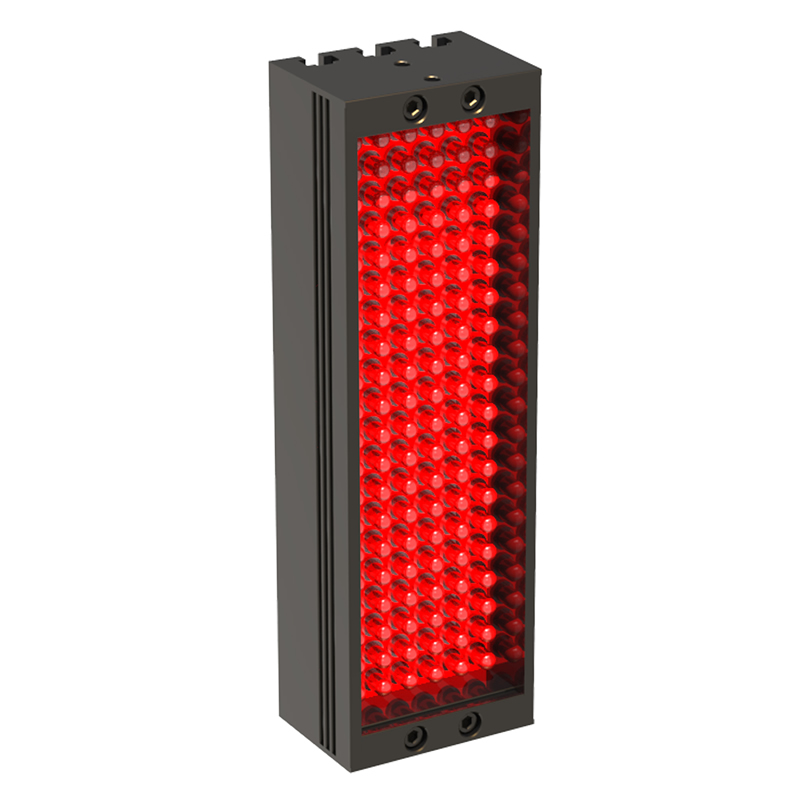

| # | Model | LED Row | Light-Emitting L×W (mm) | Voltage (V) | Rated Power (W) | Dimensions L×E×D (mm) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|
| Red | White/Blue/Green | |||||||
| 1 | GBLL-40x16-3 | 3 | 40×16 | 24 | 1 | 2 | 52×20×24 | 50 |
| 2 | GBLL-80x16-3 | 3 | 80×16 | 24 | 3 | 3 | 92×20×24 | 80 |
| 3 | GBLL-120x16-3 | 3 | 119×16 | 24 | 4 | 6 | 132×20×24 | 100 |
| 4 | GBLL-160x16-3 | 3 | 158×16 | 24 | 5 | 7 | 172×20×24 | 120 |
| 5 | GBLL-197x16-3 | 3 | 197×16 | 24 | 6 | 9 | 209×20×24 | 150 |
| 6 | GBLL-275x16-3 | 3 | 288×16 | 24 | 8 | 12 | 287×20×24 | 210 |
| 7 | GBLL-74x30-6 | 6 | 74×30 | 24 | 3 | 5 | 86×34×24 | 100 |
| 8 | GBLL-86x30-6 | 6 | 86×30 | 24 | 3 | 5 | 98×34×24 | 110 |
| 9 | GBLL-98x30-6 | 6 | 98×30 | 24 | 4 | 5 | 110×34×23 | 120 |
| 10 | GBLL-146x30-6 | 6 | 146×30 | 24 | 5 | 8 | 158×34×23 | 160 |
| 11 | GBLL-170x30-6 | 6 | 170×30 | 24 | 6 | 9 | 182×34×23 | 180 |
| 12 | GBLL-180x30-6 | 6 | 180×30 | 24 | 6 | 9 | 192×34×24 | 190 |
| 13 | GBLL-194x30-6 | 6 | 194×30 | 24 | 7 | 11 | 206×34×24 | 200 |
| 14 | GBLL-218x30-6 | 6 | 218×30 | 24 | 8 | 13 | 230×34×24 | 220 |
| 15 | GBLL-266x30-6 | 6 | 266×30 | 24 | 12 | 16 | 278×34×24 | 260 |
| 16 | GBLL-290x30-6 | 6 | 290×30 | 24 | 15 | 18 | 302×34×24 | 280 |
| 17 | GBLL-386x30-6 | 6 | 386×30 | 24 | 18 | 24 | 398×34×24 | 370 |
| 18 | GBLL-434x30-6 | 6 | 434×30 | 24 | 20 | 28 | 446×34×24 | 410 |
| 19 | GBLL-578x30-6 | 6 | 578×30 | 24 | 24 | 35 | 590×34×24 | 530 |
| 20 | GBLL-400x45-9 | 9 | 400×45 | 24 | 3 | 4 | 416×52×28 | — |
| 21 | GBLL-74x45-9 | 9 | 300×45 | 24 | 12 | 18 | 316×52×28 | 1350 |
| 22 | GBLL-1100x45-9 | 9 | 1100×45 | 24 | 35 | 48 | 1116×52×28 | — |
The LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.
The modular design of the LX150 linear light, part of the Direct Connect Linear Light Series, offers integrated light-to-light connectors, eliminating the need for cable connectors to string lights together. The light operates in continuous operation. This innovative design requires a power connection to the first light but eliminates the need for jumper cables to pass power through to the next, enabling tailored-length solutions in increments of 150 mm. Direct connect up to sixteen LX150 together.
The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.
The LCZE300 is a SmartVisionLink™-enabled linear light. With the addition of the BTM-1000 Bluetooth module, the LCZE300 can be wirelessly adjusted for intensity levels. The LCZE300 can be connected in a series of up to six lights, either through direct-connect or daisy-chain, to create a total of 6 independently controllable lighting zones.
