Application:

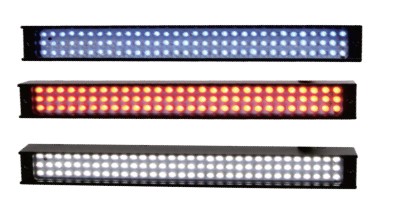

| Model | Optics | Electric | Size (External x Internal x Height) | Weight (g) | ||||
| Color | LED Row | Light-emitting L x W (mm) | Voltage (V) | W (2) * | ||||
| Red | White, Blue, Green | |||||||
| GBL-40x16-3 | Red, White, Blue, Green | 3 | 40x16 | 24 | 1 | 1.5 | 52x20x24 | 50 80 100 |
| GBL-80x16-3 | Red, White, Blue, Green | 3 | 80x16 | 24 | 1.5 | 2.5 | 92x20x24 | 120 |
| GBL-120x16-3 | Red, White, Blue, Green | 3 | 120x16 | 24 | 3.5 | 7 | 132x20x24 | 150 |
| GBL-160x16-3 | Red, White, Blue, Green | 3 | 160x16 | 24 | 5 | 8 | 172x20x24 | 210 |
| GBL-197x16-3 | Red, White, Blue, Green | 3 | 197x16 | 24 | 5.5 | 8.5 | 209x20x24 | 100 |
| GBL-275x16-3 | Red, White, Blue, Green | 3 | 275x16 | 24 | 12 | 15 | 287x20x24 | 110 |
| GBL-74x30-6 | Red, White, Blue, Green | 6 | 74x30 | 24 | 3.2 | 4 | 86x34x24 | 120 |
| GBL-86x30-6 | Red, White, Blue, Green | 6 | 86x30 | 24 | 4.7 | 5.5 | 98x34x24 | 160 |
| GBL-98x30-6 | Red, White, Blue, Green | 6 | 98x30 | 24 | 5 | 6.5 | 110x34x23 | 180 |
| GBL-146x30-6 | Red, White, Blue, Green | 6 | 146x30 | 24 | 6.5 | 9 | 158x34x23 | 190 |
| GBL-170x30-6 | Red, White, Blue, Green | 6 | 170x30 | 24 | 7.5 | 9.5 | 182x34x23 | 200 |
| GBL-180x30-6 | Red, White, Blue, Green | 6 | 180x30 | 24 | 8 | 10.5 | 192x34x24 | 220 |
| GBL-194x30-6 | Red, White, Blue, Green | 6 | 194x30 | 24 | 9.5 | 11.5 | 206x34x24 | 260 |
| GBL-218x30-6 | Red, White, Blue, Green | 6 | 218x30 | 24 | 10.7 | 12 | 230x34x24 | 280 |
| GBL-266x30-6 | Red, White, Blue, Green | 6 | 266x30 | 24 | 13 | 14.6 | 278x34x24 | 280 |
| GBL-290x30-6 | Red, White, Blue, Green | 6 | 290x30 | 24 | 14.2 | 16 | 302x34x24 | 370 |
| GBL-386x30-6 | Red, White, Blue, Green | 6 | 386x30 | 24 | 18 | 22 | 398x34x24 | 370 |
| GBL-434x30-6 | Red, White, Blue, Green | 6 | 434x30 | 24 | 21.5 | 24 | 446x34x24 | 410 |
| GBL-578x30-6 | Red, White, Blue, Green | 6 | 578x30 | 24 | 28.8 | 32 | 590x34x24 | 530 |
The LC300 features 12 high-bright LEDs, operates in continuous mode, and includes a built-in constant-current driver. The LC300 is a more cost effective light due to the analog intensity control line not being included and not being capable of daisy-chaining to additional linear lights. NPN or PNP trigger signals can be used to control the on/off input of the light.
The Right Light for Your Application
he LZE300, a SmartVisionLink™ enabled linear light, has similar features and functions as the LXE300, with the addition of communication with a SmartVisionLink™ managing device, such as the BTM-1000. When the LZE300 is connected to the BTM-1000, its intensity can be fully controlled, either for the entire light or for each of the three LED zones. Individual zones may also be turned off. The standard LZE300 has a 12 LED configuration.
The LZE300 is available in three different connector options:
The LZE300 also comes with NanoDrive technology, which enables a faster “on” and “off” compared to other technology.
The LWB300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWB300 features an integrated constant current driver built into the light and runs in continuous operation. NPN or PNP trigger signal input can be used to control the turning on/off input of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or onboard manual potentiometer. Daisy-chain up to six LWB300 together.
The LWE150 features a stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWE150 has an integrated Multi-Drive™ constant-current driver that operates continuous operation or in OverDrive™ strobe mode, depending on wiring configuration. NPN or PNP trigger signals can be used to control the pulse of the light.
