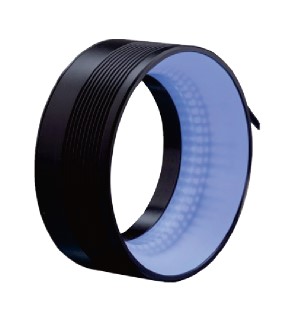

Vislight – DRL Series

Application:

BGA, QFP position detection
Surface defects detection

This product is already in your proposal request list.

Model	Optics			Electric			Size I x E x D (mm)	Weight (g)
	Color	LED Row	Angle	Voltage (V)	W (2) *
	Color	LED Row	Angle	Voltage (V)	Red	White, Blue, Green
DRL-88-1-60	Red, White, Blue, Green	1	60	24	4.6	7.5	88x60x37	180
DRL-100-1-60	Red, White, Blue, Green	1	60	24	1.9	7.8	100x73x40	210
DRL-136-1-60	Red, White, Blue, Green	1	60	24	6.6	12.4	136x109x40	300
DRL-180-1-60	Red, White, Blue, Green	1	60	24	9.5	13.8	180x153x40	390
DRL-250-1-60	Red, White, Blue, Green	1	60	24	13.1	32.8	250x210x50	960
