Application areas: Precision parts dimensional measurement, edge damage detection, scratch detection on transparent object surfaces, internal foreign object detection, high liquid level detection, liquid foreign object detection, etc.
Advantages

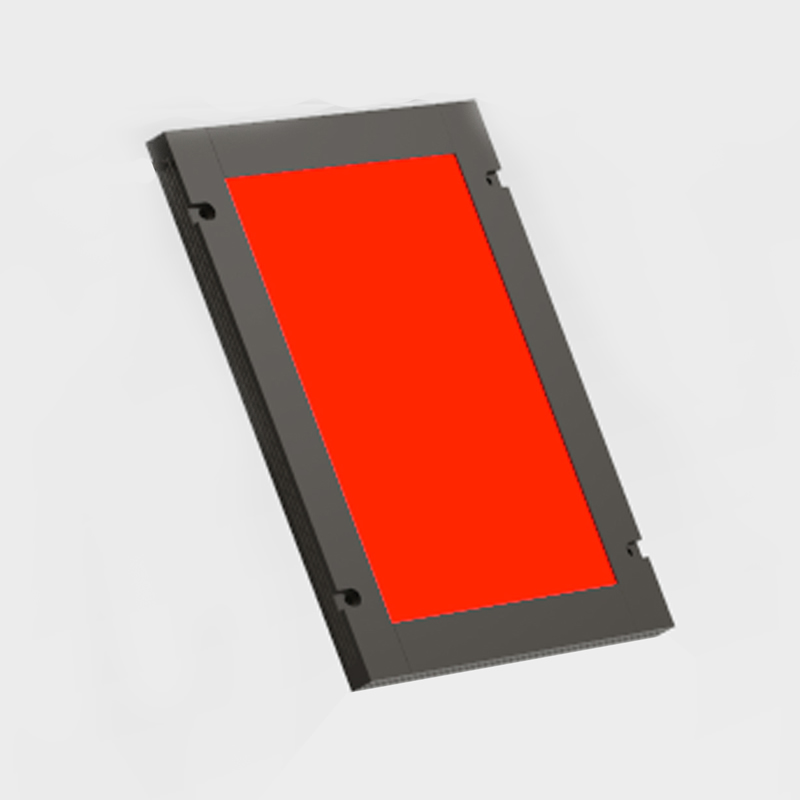

| model | Optics | Rated power (W) | Dimensions I×E×D (mm) | Weight (g) | ||||
| color | Working distance (mm) | Light emission L×W (mm) | Voltage (V) | red | White, blue, green | |||
| BLNL-25x25-00 | Red, white, blue, green | 30-100 | 25x25 | twenty four | 2 | 2.3 | 60x60x9.5 | 100 |
| BLNL-50x50-00 | Red, white, blue, green | 30-100 | 50x50 | twenty four | 4 | 6 | 85x85x9.5 | 150 |
| BLNL-70x70-00 | Red, white, blue, green | 30-100 | 70x70 | twenty four | 5 | 7 | 105xl05x9.5 | 210 |
| BLNL-80x80-00 | Red, white, blue, green | 30-100 | 80x80 | twenty four | 5 | 7 | 115xll5x9.5 | 250 |
| BLNL-90x90-00 | Red, white, blue, green | 30-100 | 90x90 | twenty four | 5 | 7.5 | 125x125x9.5 | 330 |
| BLNL-110x110-00 | Red, white, blue, green | 30-100 | 110x110 | twenty four | 6 | 8.6 | 145x145x9.5 | 420 |
| BLNL-150x100-00 | Red, white, blue, green | 30-100 | 150x100 | twenty four | 6 | 8.5 | 185x135x9.5 | 430 |
| BLNL-200x160-00 | Red, white, blue, green | 30-100 | 200x160 | twenty four | 6 | 9 | 235x195x9.5 | 720 |
| BLNL-200x200-00 | Red, white, blue, green | 30-100 | 200x200 | twenty four | 7 | 10 | 235x235x9.5 | 880 |
| BLNL-250x200-00 | Red, white, blue, green | 30-100 | 250x200 | twenty four | 8 | 12 | 285x235x9.5 | 1040 |
| BLNL-300x200-00 | Red, white, blue, green | 30-100 | 300x200 | twenty four | 10 | 15 | 335x235x9.5 | 1230 |
| BLNL-300x300-00 | Red, white, blue, green | 30-100 | 300x300 | twenty four | 17 | 25 | 335x335x9.5 | 1670 |
| BLNL-400x300-00 | Red, white, blue, green | 30-100 | 400x300 | twenty four | 18 | 28 | 435x335x9.5 | 2100 |
| BLNL-600x400-00 | Red, white, blue, green | 30-100 | 600x400 | twenty four | 20 | 30 | 635x435x9.5 | 3980 |
Features and Benefits:
Applications:
CoaXpress is a recently developed camera standard utilizing a single coax cable for transfer rates of up to 6.25 Gbps. Utilizing precision 75 ohm impedance and 100% sweep tested cable, Intercon 1 CoaXPress cable assemblies are JIIA certified to be CoaXPress compliant
By combining materials like crush resistant gas-injected polyethylene compound that reduces attenuation and extends operating band width. Intercon 1 provides the most robust industrial assemblies available. These assemblies are designed to function within a broad range of environmental conditions.
Our Industrial High Flex Gig E cables are designed to interface Gig E and Gig E Vision cameras directly to a computer, eliminating the need for frame grabbers. This is a solution for brutal applications that require more than the traditional cable can offer. Double shielded cable ensures the best electrical performance. Intercon’s industrial high flex cable has exceeded 12 million + flex cycles in both tick tock and rolling torsion testing. The durable TPE jacket provides additional protection from elements such as water, oil, and abrasion. Our unique right/left and up/down strain relief orientations provide a solution for those applications where limited space exists behind the camera. The low profile right angle orientations eliminate the stress that can be placed on the cable, connector and camera when using a traditional straight assembly in these tight areas. The thumbscrew-locking feature ensures that the interface will remain secure despite motion and vibration.
Industrial High Flex Cat6a Gig E cables are designed to interface Gig E and Gig E Vision cameras directly to a computer, eliminating the need for frame grabbers. IFC6-GEVP is the solution for brutal applications that require more than the traditional CAT 6a cable can offer. Double shielded cable ensures the best electrical performance. Our unique overmold design provides increased strain relief. The high flex cable is designed to withstand 3 million + flex cycles. The durable TPE jacket provides additional protection from elements such as water, oil, and abrasion.
Industrial High Flex Cat5e Gig E cables are designed to interface Gig E and Gig E Vision cameras directly to a computer, eliminating the need for frame grabbers. IFC6-GEVP is the solution for brutal applications that require more than the traditional CAT 5e cable can offer. Double shielded cable ensures the best electrical performance. Our unique overmold design provides increased strain relief. The high flex cable is designed to withstand 10 million + flex cycles. The durable TPE jacket provides additional protection from elements such as water, oil, and abrasion.
![Opto Engineering – Telecentric [TC CORE PLUS SERIES]](https://www.jm-vistec.com/wp-content/uploads/2026/03/TC-CORE-PLUS-300x300.jpg)
TC CORE PLUS series is a range of large FOV telecentric lenses for area scan cameras, specifically designed for the latest generation 1/1.8” and 2/3” CMOS sensors. Their opto-mechanical design is ideal to inspect large objects in a reduced space.
The lenses from the TC CORE PLUS series are up to 45% shorter than other telecentric lenses available on the market.
Their patented optical design, inspired by catadioptric telescopes, allows for large FOV imaging while keeping the overall footprint compact.
The length and working distance of a telecentric lens strongly impacts the size of a vision system. This is especially critical when a large FOV telecentric lens is used with a telecentric illuminator, as the overall system dimensions are doubled. For this reason, the working distance of TC CORE PLUS lenses has been optimized to make the vision system as compact as possible. TC CORE PLUS lenses feature a built-in mounting flange for easy mounting without additional clamps, making their integration easy and cost-effective.
