Benefits:
Application:
| Model | Optics | Electric | Size (External x Internal x Height) | Weight (g) | ||||
| Color | Working distance (mm) | Light Emitting L x W (mm) | Voltage (V) | W (2) * | ||||
| Red | White, Blue, Green | |||||||

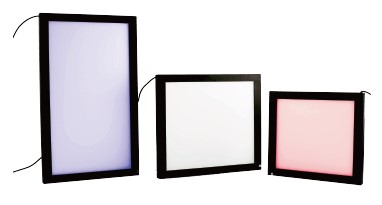

| BLN-25x25-00 | Red, White, Blue, Green | 30-100 | 25x25 | 24 | 1.5 | 3 | 60x60x9.5 | 100 |
| BLN-50x50-00 | Red, White, Blue, Green | 30-100 | 50x50 | 24 | 2.3 | 4 | 85x85x9.5 | 150 |
| BLN-70x70-00 | Red, White, Blue, Green | 30-100 | 70x70 | 24 | 3 | 7 | 105x105x9.5 | 210 |
| BLN-90x90-00 | Red, White, Blue, Green | 30-100 | 90x90 | 24 | 3.8 | 6.2 | 125x125x9.5 | 330 |
| BLN-110x110-00 | Red, White, Blue, Green | 30-100 | 110x110 | 24 | 4.2 | 6.8 | 145x145x9.5 | 420 |
| BLN-150x100-00 | Red, White, Blue, Green | 30-100 | 150x100 | 24 | 4.5 | 8.5 | 185x135x9.5 | 430 |
| BLN-200x160-00 | Red, White, Blue, Green | 30-100 | 200x160 | 24 | 6 | 10 | 235x195x9.5 | 720 |
| BLN-200x200-00 | Red, White, Blue, Green | 30-100 | 200x200 | 24 | 12 | 20 | 235x235x9.5 | 880 |
| BLN-250x200-00 | Red, White, Blue, Green | 30-100 | 250x200 | 24 | 6 | 12 | 285x235x9.5 | 1040 |
| BLN-300x200-00 | Red, White, Blue, Green | 30-100 | 300x200 | 24 | 9 | 15 | 335x235x9.5 | 1230 |
| BLN-300x300-00 | Red, White, Blue, Green | 30-100 | 300x300 | 24 | 18 | 30 | 335x335x9.5 | 1670 |
| BLN-400x300-00 | Red, White, Blue, Green | 30-100 | 400x300 | 24 | 10 | 17 | 435x335x9.5 | 2100 |
| BLN-600x400-00 | Red, White, Blue, Green | 30-100 | 600x400 | 24 | 18 | 26 | 635x435x9.5 | 3980 |
The LSR series is a SmartVisionLink™-enabled linear light that can produce over 340,000 lux and is offered in lengths up to 1200 mm. When used with the BTM-1000 Bluetooth accessory and the SmartVisionLink™ app, the LSR Series can have its intensity remotely adjusted. The LSR Series is easily mounted with the built-in T-slot rail system.
The LWB300 series features a 100% waterproof stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWB300 features an integrated constant current driver built into the light and runs in continuous operation. NPN or PNP trigger signal input can be used to control the turning on/off input of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or onboard manual potentiometer. Daisy-chain up to six LWB300 together.
The LB300 array utilizes 12 high-intensity LEDs, features an integrated constant current driver built into the light and operates in continuous operation. The LB300 features a factory-installed 2447 diffuser backlight lens and is a viable option for silhouetting objects. NPN or PNP trigger signals can be used to control the on/off input of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six LB300 lights together.
The LM45 compact linear light features an integrated Multi-Drive™ constant-current driver that operates in continuous operation or in OverDrive™ strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers over-current protection and PNP and NPN strobe trigger inputs. With housing 51 mm long, the LM45 puts out unprecedented levels of light in one of the industry’s smallest footprints.
