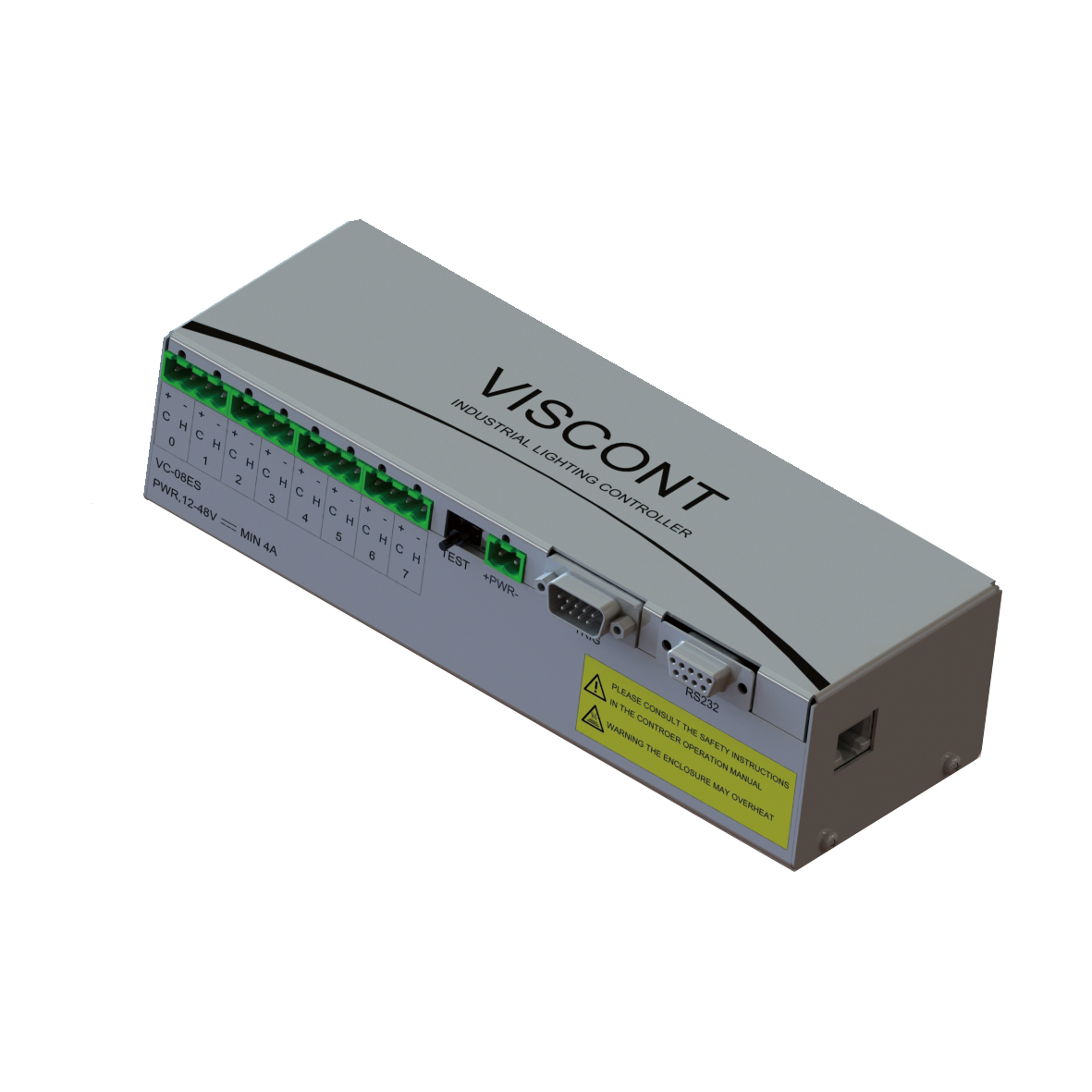

The VC-08ES is an 8-channel LED light controller designed for demanding industrial vision applications. It delivers stable constant-current control with high-speed strobe output up to 100 kHz, making it well-suited for environments where consistent and precise illumination is critical. The unit supports a wide input voltage range of 12–48VDC and can output pulse current up to 20A, with continuous mode limited to 2A. Each channel operates independently, giving users fine-grained control over multiple light sources simultaneously.
The controller offers three operating modes — continuous, pulse, and switch — and accepts 8 opto-isolated trigger inputs (5–24V, common cathode) for direct synchronization with camera triggers and PLC outputs. Communication is handled via RS232 serial port and Ethernet (TCP/UDP), and the light source interface uses 5.08mm pitch terminals with four 4-pin connectors. It is compatible with most industrial LED lighting systems, making integration into existing automation setups straightforward.
Typical applications include PCB and electronics inspection, semiconductor inspection, medical imaging, and packaging and sorting systems. The VC-08ES operates in temperatures from -5°C to 50°C and humidity up to 85% RH (non-condensing), and has a compact footprint of 215 × 58 × 53 mm.
| Parameter | Value |
|---|---|
| Output Voltage | 12V ~ 46V @ 20A |
| Output Current | Continuous mode: up to 2A Pulse mode: up to 20A (step size: 5mA) |
| Operating Modes | Continuous mode, Pulse mode, Switch mode |
| Trigger Signal | 8 × opto-isolated inputs: 5–24 V, common cathode |
| Output Frequency | Up to 100 kHz |
| Light Source Interface | 5.08 mm pitch terminal, 4 × 4-pin connectors |
| Communication | RS232 serial port and Ethernet (TCP/UDP) |
| Input Voltage | 12 ~ 48VDC (DC input), 2-pin 5.08mm terminal connector |
| Operating Environment | Temperature: -5°C to 50°C Humidity: 20–85% RH (non-condensing) |
| Product Dimensions | 215 mm (L) × 58 mm (W) × 53 mm (H) |
The RTCC4 combines the features of the Gardasoft RT Series LED Lighting Controllers with the addition of two digital outputs for Triggering or general use. This combination provides a high level of integration in Machine Vision systems – reducing complexity, space and cost.
The RT range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse / strobe controllers are current sources, with the RT200 controller range offering two output channels which are independently controlled.
OLED panels have many benefits in machine vision applications because they give an exceptionally stable and uniform light intensity across the width of the panel. They are also very thin and can be moulded into complex shapes. However, OLED lights are challenging to control because the physical properties inherent in OLED panels demand sophisticated drive techniques to obtain fast and accurate pulsing.
The RC range is Gardasoft’s latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the needs of perhaps having to use a bespoke DC power supply or heat sinking the controller. All RC models also include our SafeSense™ technology. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft RC Series controllers are therefore single channel current source devices.
